PRAESENSA Application notes | en 177
Bosch Security Systems B.V. Installation manual 2019.11 | V1.00 |

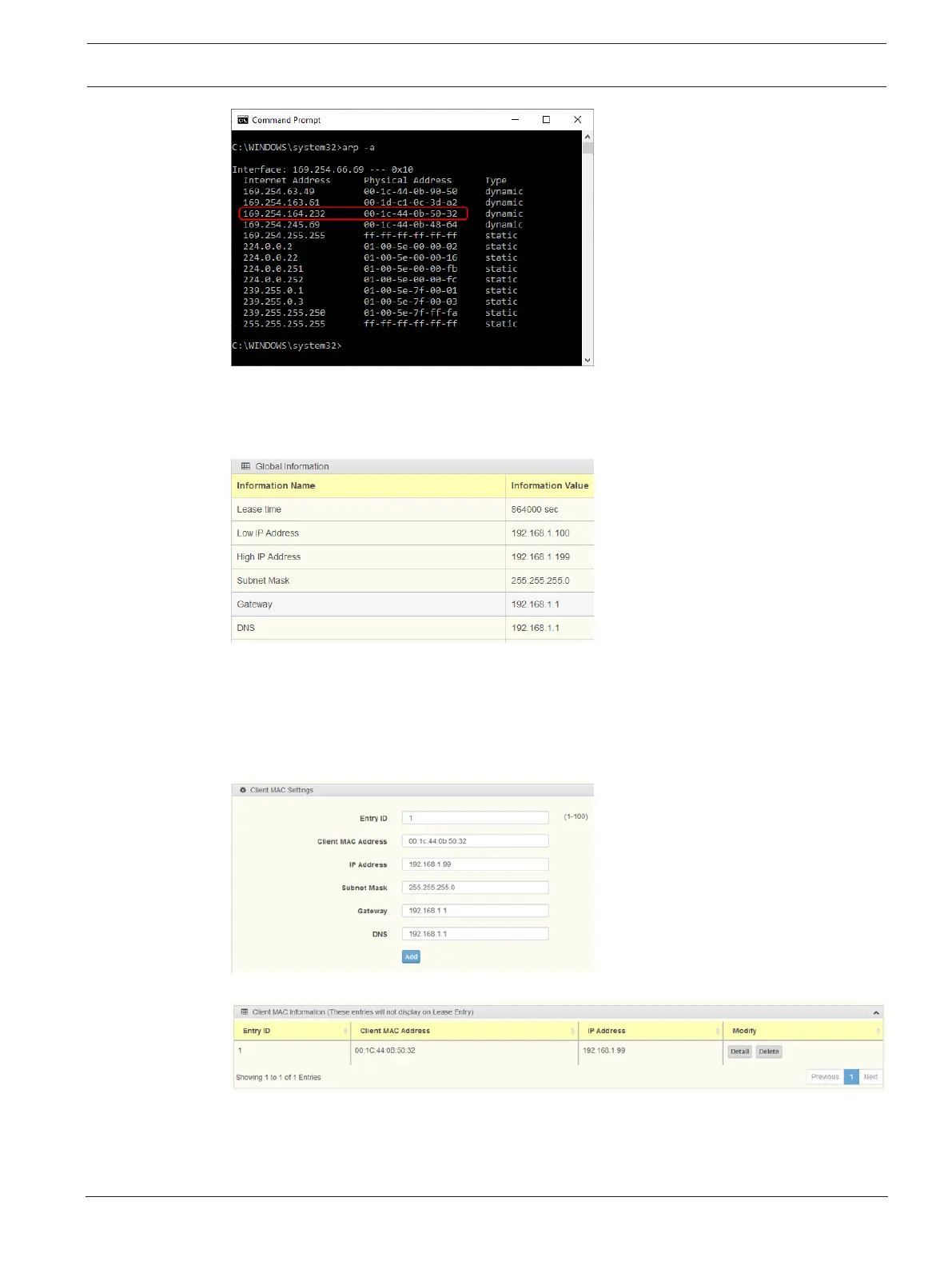

4. Now login to the configuration web page of the Ethernet switch, in this case the PRA-
ES8P2S, an OEM variant of the Advantech EKI‑7710G. Make sure that it contains firmware
that supports client MAC settings, like the firmware file EKI‑7710G‑2CP‑AE‑1‑01‑04.hex.
Then enable the DHCP‑server in the switch and define the global DHCP‑server settings.
5. The next step is to go to the Client MAC Settings in the DHCP section and add the Client
MAC‑Address. In this example 00:1c:44:0b:50:32 (replacing the dashes for semicolons).
Then enter a static IP‑address for the PRAESENSA system controller outside the
configured DHCP‑address range, which is the range between the Low IP Address and the
High IP Address of the switch. In this case the IP‑address 192.168.1.99 is chosen, just
below the DHCP‑address range.
6. After a successful entry this will show up as follows:
7. Save the new configuration and reboot the switch and all PRAESENSA equipment. Now
the system controller will have a static IP‑address for the configuration webpages and the
Open Interface: 192.168.1.99. All other PRAESENSA devices will get an IP‑address in the
