6 Operating Panel
6.1 Figure and Description
The operating panel is removable and composed of two areas: display and keys. The
display shows mode settings and operation state of the frequency converter. The keys
allow the user to program the frequency converter.

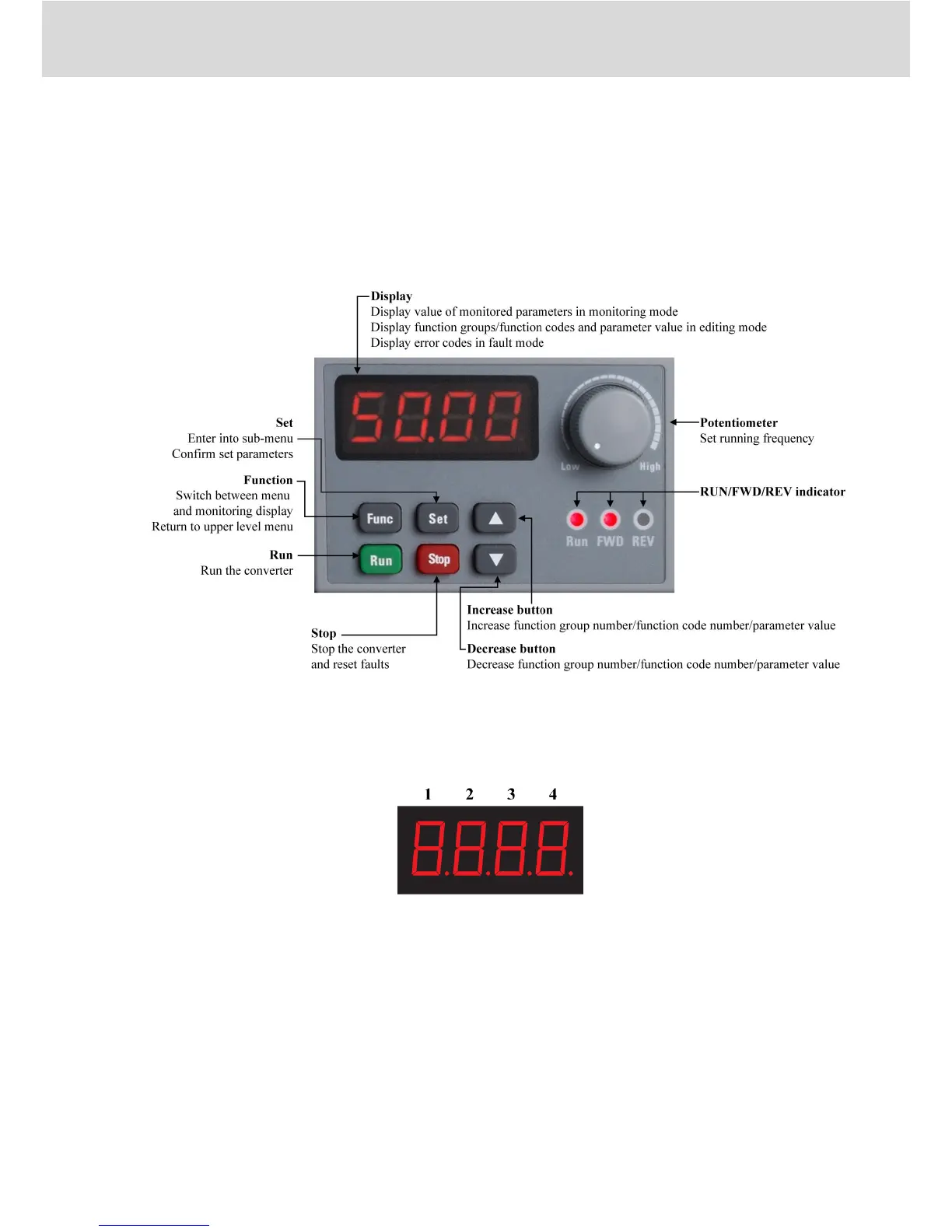

Fig.6-1: Operating panel
6.2 Seven-segment Display
Fig.6-2: Seven-segment display
Display has only 4 digits, but values with up to 5 digits may be displayed.
● To view the first 4 digits: press buttons Func+▲.
● To view the last 4 digits: press buttons Func+▼.
DOK-RCON03-EFC-3600***-IT01-EN-P
Rexroth Frequency Converter EFC 3600
Bosch Rexroth AG
Operating Panel
43/235
