Bose FreeSpace DXA 2120 Service Manual

11

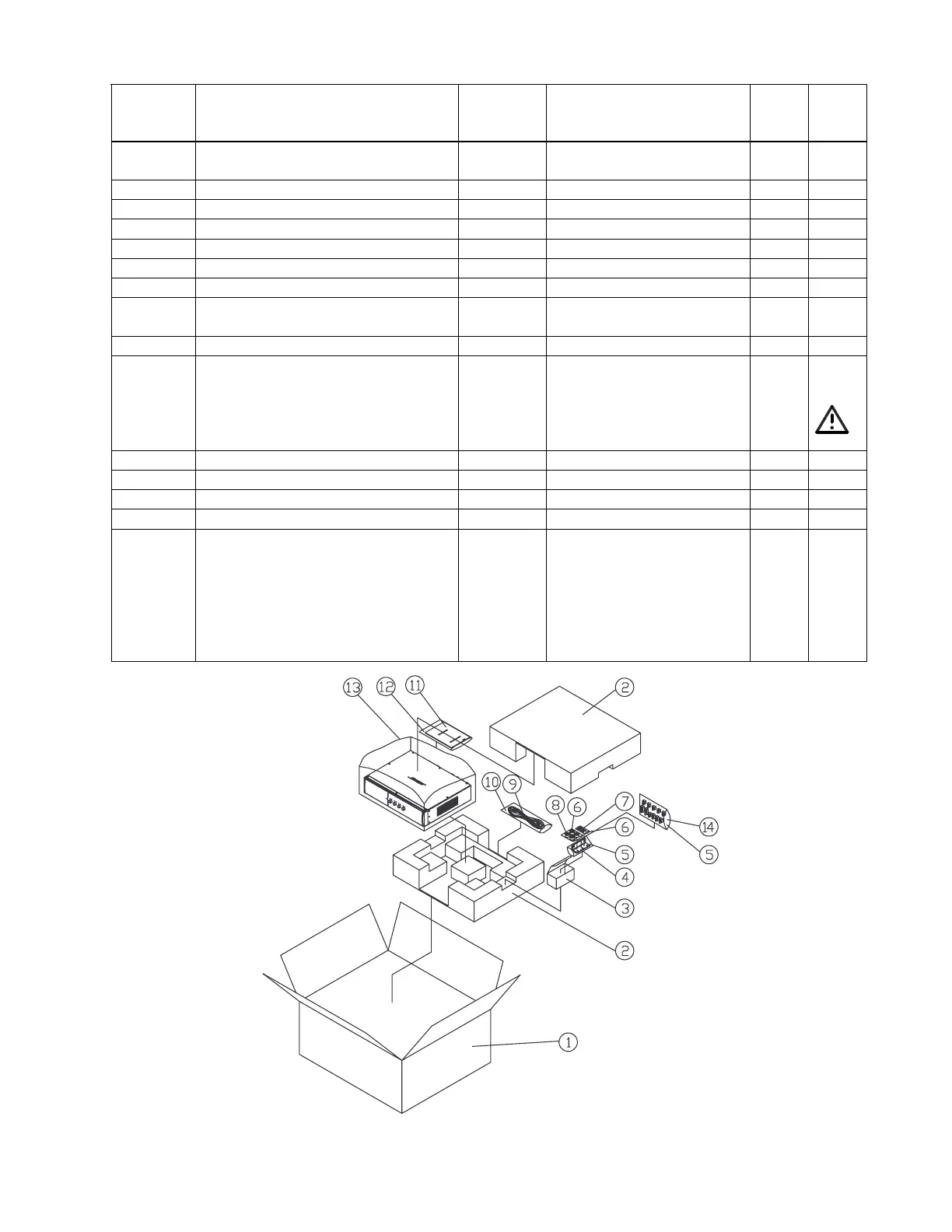

Figure 1. FreeSpace DXA 2120 Packaging View
PACKAGING PART LIST
FreeSpace
®
DXA 2120 Amplifier/Mixer (see Figure 1)
Item
Number
Description Bose
®
Part
Number
Vendor Part Number Qty. Note
CARTON KIT, INCLUDES ITEMS
1, 2 AND 13
298709 SVC-MIXER14+PKG 1
1 CARTON 298708 1437-8501+0-3 1
2 PE FOAM - 1493-1761+0 2
3 WHITE BOX - 1480-9401+0 1 4
4 RACK EAR 298706 4135-6291+0 2
5 POLYBAG, .04x5x9 - 1497-1932-0 2 4
6 POLYBAG, .04x5x6 - 1497-2042-0 2 4
7 SCREW, MACHINE, FLAT-CS
(USED WITH RACK EARS)
- 2901-4012+3000 6 4
8 RUBBER FOOT 298707 4157-1121+0 4
9 AC POWER CORD, US/CAN 298165 7012-7340+0 1 3
AC POWER CORD, EURO 298166 7012-6601+0
AC POWER CORD, JAPAN 298167 7012-5530+0
AC POWER CORD, UK 298168 7012-6603+0
AC POWER CORD, AUS 298169 7012-5430+0
10 POLYBAG, 10’x14’ - 1497-4122-0 1 4
11 OWNERS MANUAL 298710 4301-7240+0 1
12 POLYBAG FOR MANUAL - 1497-1062+0 1 4
13 POLYBAG FOR UNIT - 1497-8012+0 1 4
14 MATING CONN KIT, REAR I/O;
INCLUDES:
– MIC/LINE CONN, 3 POS
– DIRECT/PAGE CONN, 4 POS
– RMT INPUT CONN, 6 POS
– AUX OUTPUT CONN, 3 POS
– SPKR OUTPUT CONN, 5 POS
298704
-
-
-
-
-
-
2113-3143+0
2113-3147+0
2113-3149+0
2113-3143+0
2113-3272+0
1
4
2
1
1
2
