Bose FreeSpace DXA 2120 Service Manual

13

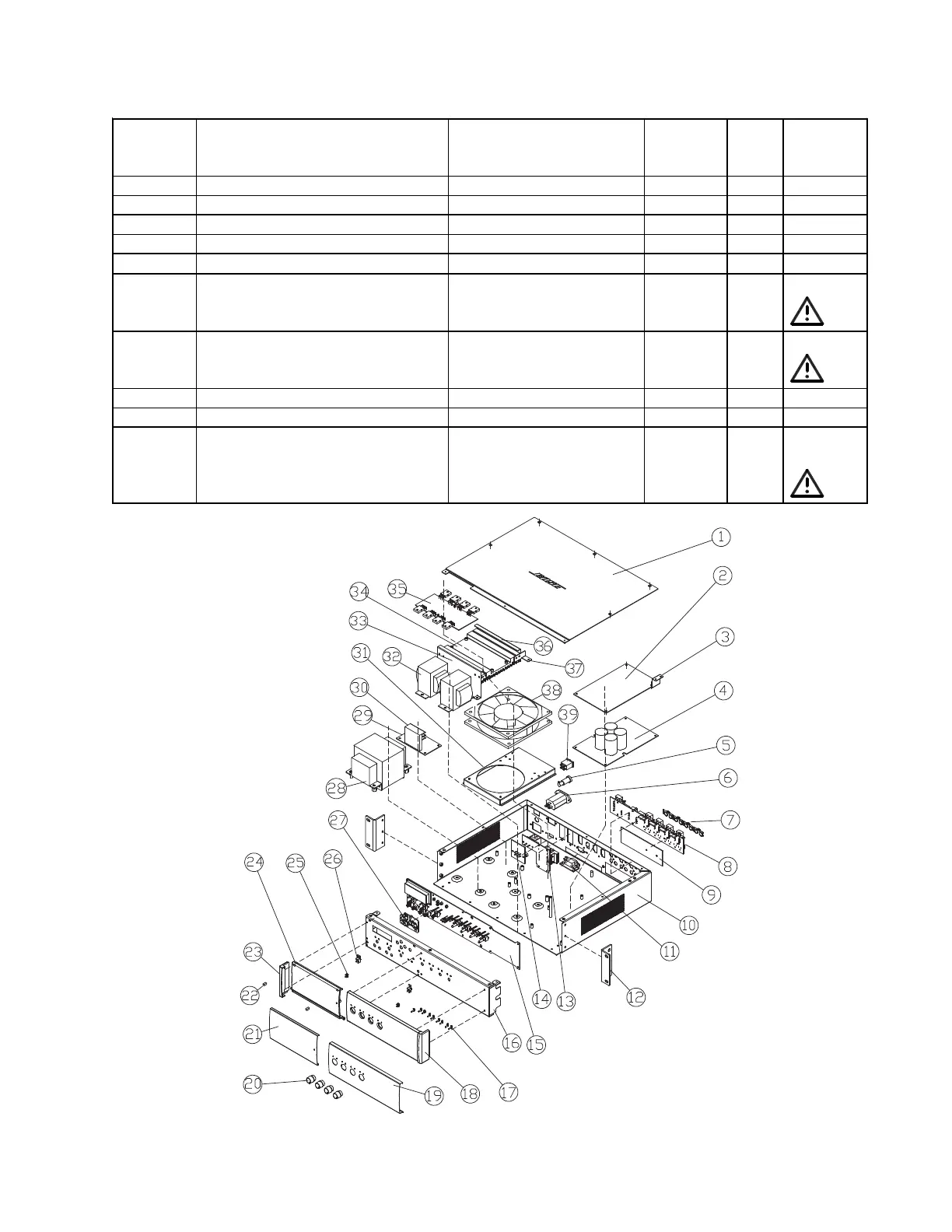

Figure 2. FreeSpace DXA 2120 Amplifier/Mixer Exploded View
MAIN PART LIST
FreeSpace
®
DXA 2120 Amplifier/Mixer (see Figure 2)
Item
Number
Description
V
endor Part Number Bose
®
Part
Number
Qty. Note
33 BRACKET C FOR HEAT SINK 4135-6361+0 - 1 4
34 HEATSINK 5400-9721+0 - 1 4
35 AMPLIFIER PCB ASSEMBLY SVC-MIXER14+AMP 298695 1 2
36 BRACKET B FOR HEAT SINK 4135-6261+0 - 1 4
37 BRACKET A FOR HEAT SINK 4135-6251+0 - 1 4
38 FAN, DC, 24V, 2400 RPM 8913-0005+0 298703 1 3
39 AC POWER SWITCH 5200-4942+0 - 1 3,4
- RIBBON CABLE 7012-7870+0 298688 3
- LCD DISPLAY 8902-0005+0 298686 1
- FUSE T6.3A 250V 5X20 UL
(120V UNITS)
FUSE T3.15A 250V 5X20MM
UR & SEMKO (220-240V)
5120-0040+0
5120-0079+0
177311-
06300
177311-
03150
1 3,4
