Bowers M1 - Page 84

M1 – M3 Display Units
Page 84
5
MINNO
-
Mini tolerance relay contact 1A 48V
6
E_GND
Input ground
7
STOP
input
Command for Stop mode
8
PRINT
input
Command for measurement transfer
9
Ground
-
Supply ground
10
PRESET
input
External calibration command
11
MAXNC
-
Maxi tolerance relay contact 1A 48V
12
MAXCOM
-
Common of maxi tolerance contacts
13
MAXNO
-
Maxi tolerance relay contact 1A 48V
14
INIDYN
input
Command for measurement initialisation
15
ZERO
input
Command for display reset to zero
+ 1 2 V
S T O P
2 .2 k
M a s s e
E -g n d
M onocote
Com m ande
S T O P
2 .2 k
E -g n d
M onoco te Com m an de
+24 V
0 V

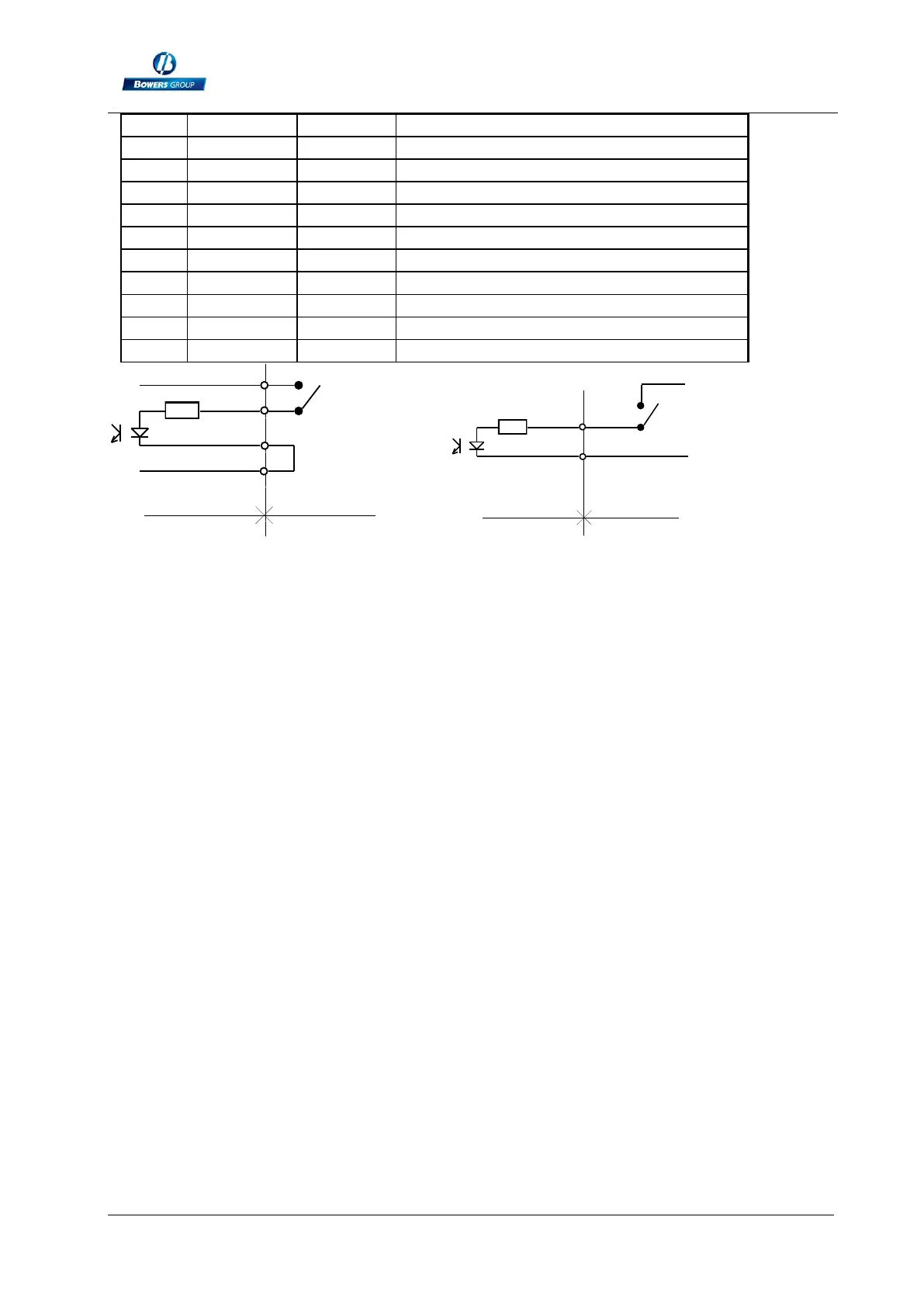

Command example: with internal supply (not isolated) and with an external supply
(isolated).
