BOXER KING 5600 - Page 115

Service Manual 04/2010 Rev.B
115
7.8 TOOL HOLDER CABINET MOVING:
CHECK AND REPLACEMENT
 : 1,5h
 : End wrenches of 13,17,19 and 30mm, Allen
wrench of 4,5 and 6mm, rubber hammer ,
green loctite.
L : The defective cabinet tool holder moving
may cause the following malfunctions:
1. Incomplete mount dismount tool rotation.
TO CHECK THE CABINET TOOL HOLDER:
 Turn on the machine.
 Move the tool holder arm ‘till end of the stroke.

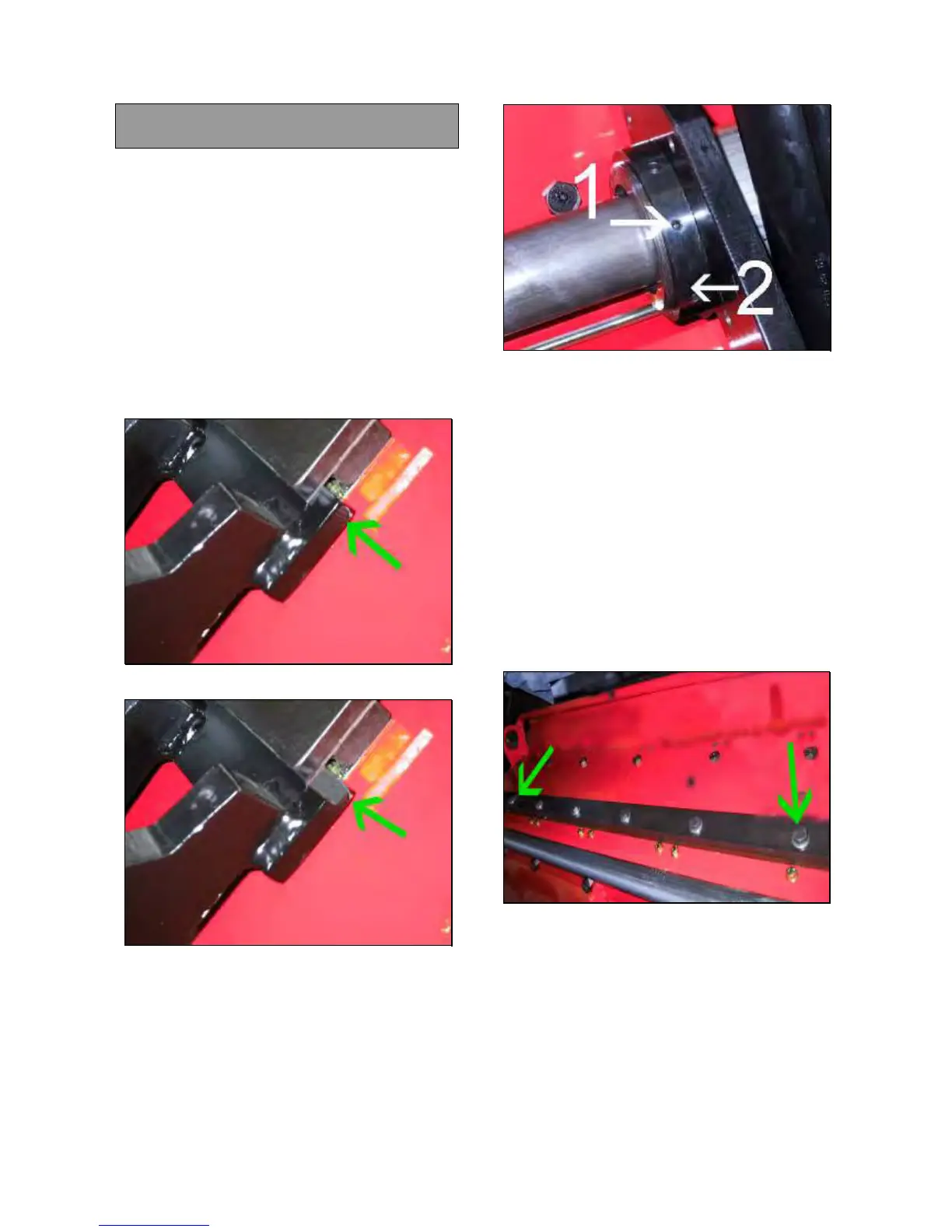

 Check if the cabinet is worn (Fig.270 and
271).
Fig.270
Fig.271
TO REPLACE THE CABINET TOOL HOLDER:
 Remove the lifting tool holder cylinder from
the tool holder assy 6.18.
 Remove the tool holder assy from the saddle
7.3.
 Remove the set screw #1 from ring nut
(Fig.272).
Fig.272
 Remove the ring nut #2 by using the same
specific wrench used to remove the robotic
rotor ring nut (7.6 Fig.253).
 Replace the cabinet with the new one by
greasing accurately the new bushing.
 Tighten the ring nut #2.
IMPORTANT!
THE THREADED RING NUT HOLE MUST
MATCH WITH THAT ONE ON THE HOLDER
ARM THREAD LIKE THAT ONE OF 7.6
FIG.259.
 Tighten the set screw #1 by using green
loctite and verify that it moves free.
 Remove the screws shown in Fig.273.
Fig.273
 Replace the shims (Fig.275).
 Tighten FIRMLY the screw of Fig.273.
 Mount the tool holder assy on the saddle
7.3.
 Mount the lifting tool holder cylinder 6.18.
 Adjust the bolts of Fig. 274.
