BOXER KING 5600 - Shutdown Pin: Check and Replacement

Service Manual 04/2010 Rev.B
116

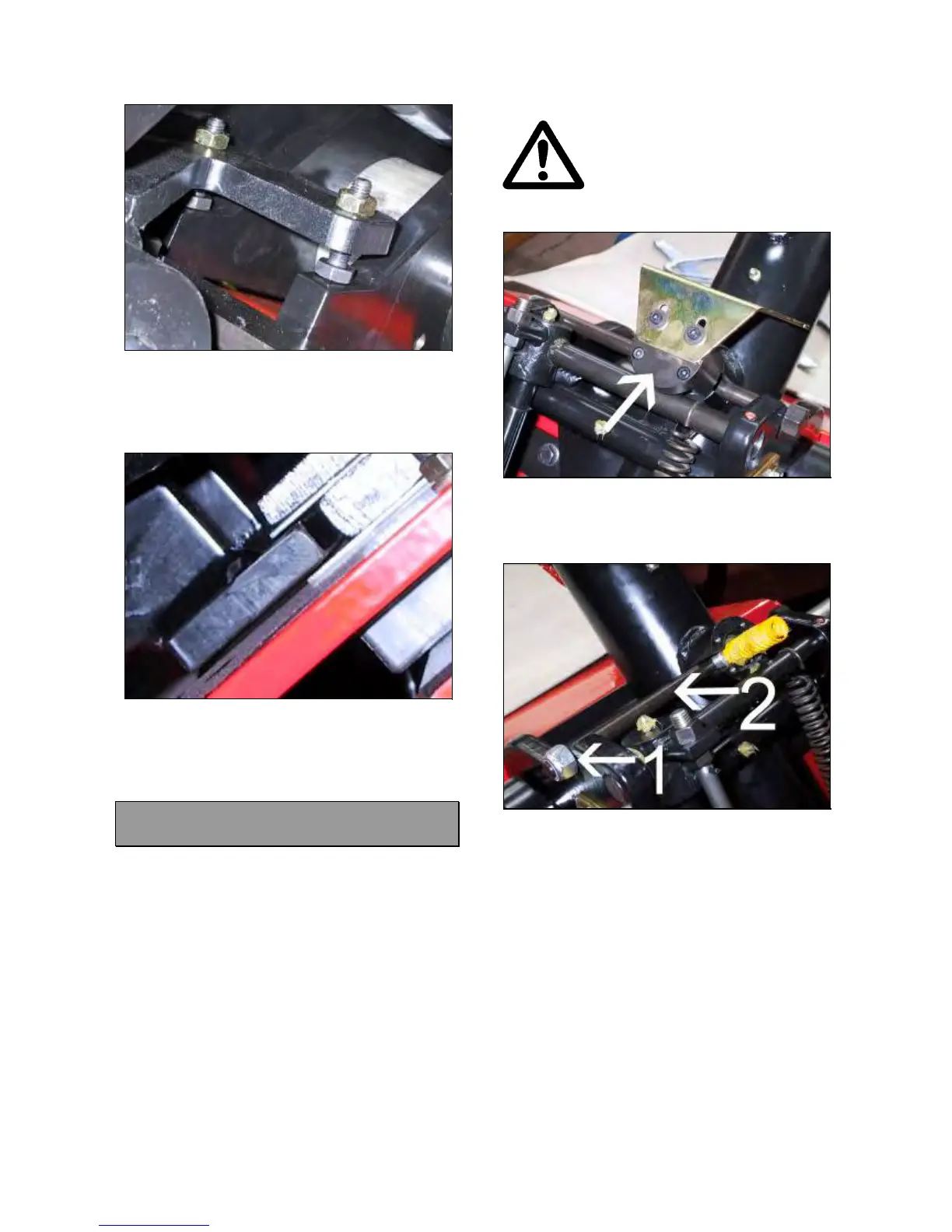

Fig.274
 Adjust the cabinet in order to avoid its contact
with the shims when the tool holder assy is
completely hooked (Fig.275).
Fig.275
 Keep the tool holder assy hooked and verify
that there is no contact between cabinet and
shims on all tool holder stroke.
7.9 SHUTDOWN PIN: CHECK
AND REPLACEMENT
 : 1h
 : End wrench of 22mm, Allen wrench of 4 and
5mm, rubber hammer.
L : The defective pin may cause the following
malfunctions:
1. Excess moving of mount dismount tool.
TO CHECK THE PIN:
 Turn on the machine.
 Hook the tool holder assy to the saddle.
 Turn off the machine.
 Remove the hook protection 7.1.
 Remove the spring top cover (Fig.276).
BE SURE TO HAVE WELL
HOOKED THE TOOL HOLDER
IN ORDER TO UNLOAD THE
SPRING UNDER THE COVER
(FIG.277).
Fig.276
 Remove the nut #1 and take out the screw #2
(Fig.277).
Fig.277
NOTE: WHEN REMOVING THE SCREW #2 PAY
ATTENTION NOT TO DROP THE PIN INTO
ROBOTIC ASSY.
 Remove the pin: if the lower section is
seriously worn it must be replaced (Fig.278).
