Service Manual 04/2010 Rev.B
78

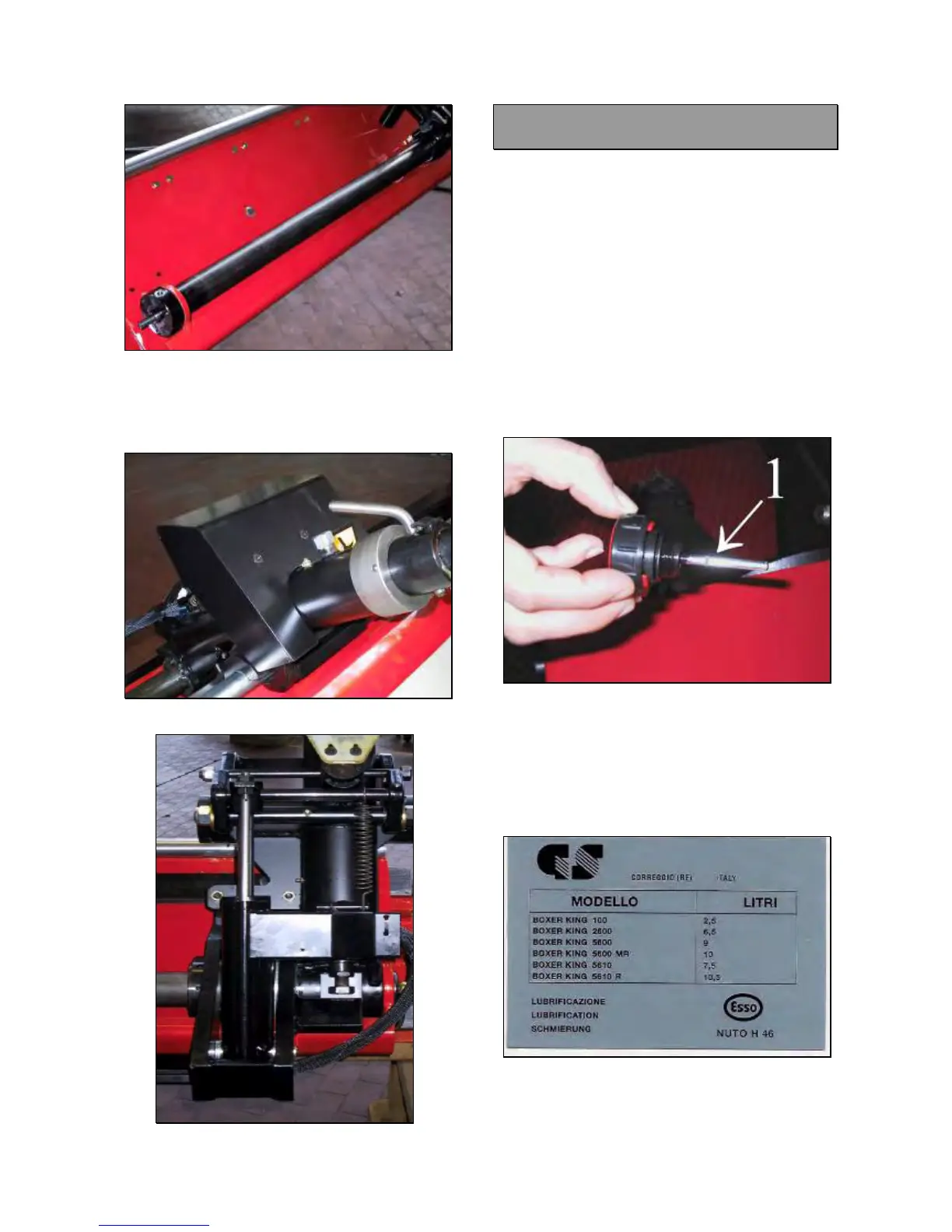

Fig.139
ROBOTIC CYLINDER: The access to this
cylinder (Fig.141) requires the dismounting of
the hook protection (Fig.140).
Fig.140
Fig.141
6.2 HYDRAULIC OIL LEVEL: CHECK
AND LEVELLING
: 30’
: Suggested hydraulic oil.
L : Incorrect oil level may cause the following
malfunction:
1. Slow or no hydraulic movements.
2. Possible pump damaging.
TO CHECK THE HYDRAULIC OIL LEVEL:
Switch the machine on.
Close all cylinders.
Switch the machine off.
Remove the reservoir stopper.
Verify if oil level corresponds to mark #1 of the
stopper rod (Fig.142)
Fig.142
TO MAKE THE OIL LEVEL:
Take the suggested hydraulic oil, reported on
a sticker tag on the reservoir and on the user
manual, and fill the reservoir until to reach the
mark on the stopper rod.
IMPORTANT!
1. USE SUGGESTED HYDRAULIC OIL ONLY
AS REPORTED ON THE USER MANUAL.
To Next Page
