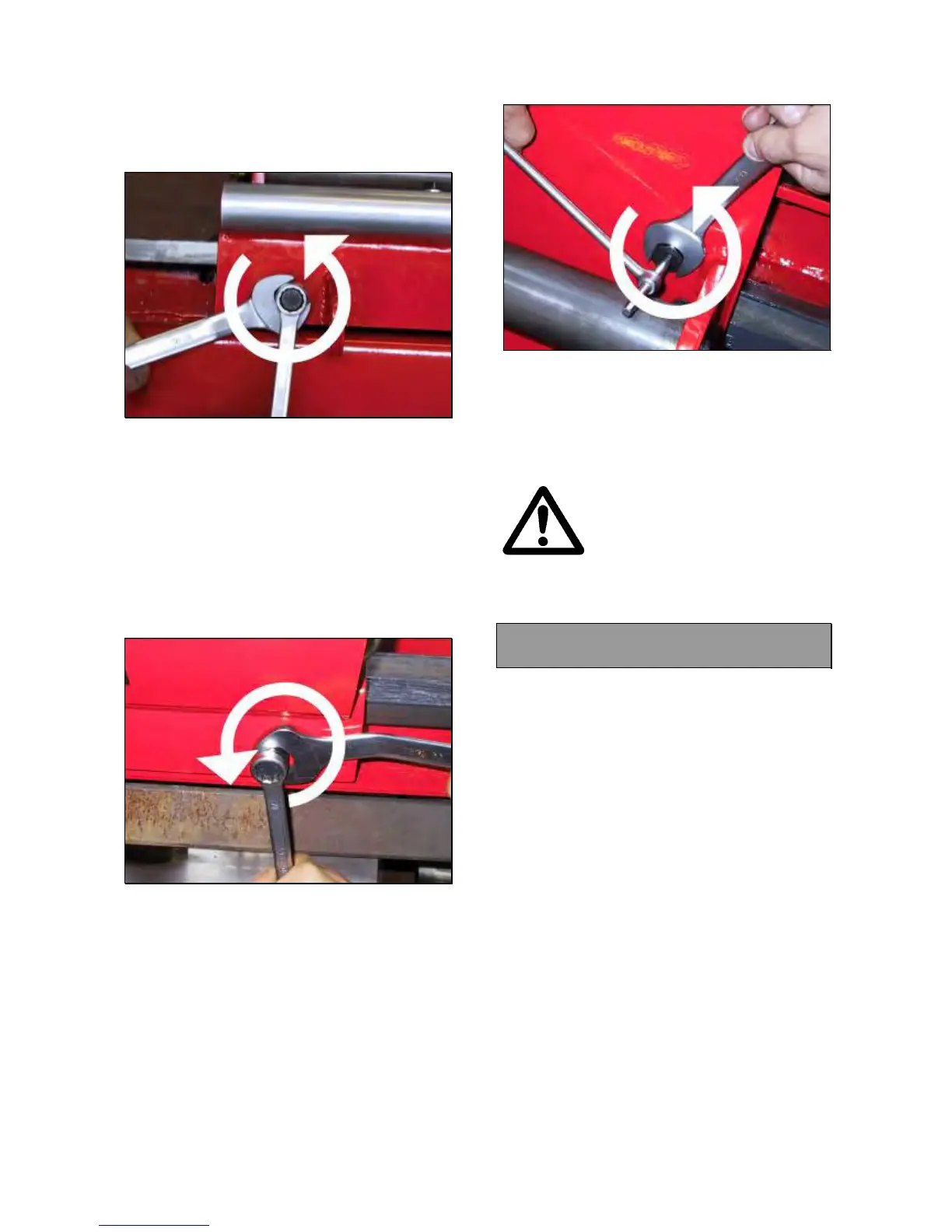

Unlock the screws, turn counter clockwise of
1/8 of a turn the eccentrics (Fig.166 ,167 and
168) and lock the screws FIRMLY.
Fig.166
IMPORTANT!
DO NOT UNLOCK ALL SCREWS TOGETHER:
ECCENTRICS MUST BE ADJUSTED AND
LOCKED ONE BY ONE.
NOTE: FOR KING 5600 ADJUST THE
ECCENTRICS OF THE PICTURES 160 ONLY
BECAUSE THERE ARE TWO BUSHINGS IN
THE BOTTOM.
Fig.167
Fig.168
Check if the sliding pressure is correct.
Remove the manometer and install the screw
with two news copper washer.
Mount the mobile table.
MOBILE TABLE IS VERY
HEAVY: HANDLE IT WITH
CARE TO AVOID FEET AND
FINGERS CRUSHING.
Mount the top cover.
6.7 HYDRAULIC PUMP: CHECK AND
REPLACEMENT
: 2h
: End wrenches 10,13,19 and 24mm, allen
wrenches 3, 5 and 6, seeger pliers,
manometer with adapter, hydraulic oil
container.
L : Defective hydraulic pump may cause the
following malfunction:
1. Slow moving.
2. Low bead breaker and chucking power.
3. Noisy pump.
4. Oil leaking from the motor spacer.
TO CHECK THE HYDRAULIC PUMP WHEN IT
SHOWS HYDRAULIC PROBLEM:
Check the whole hydraulic pressure ( 6.3).
If the pressure does not grow up the hydraulic
pump needs to be replaced.
TO CHECK THE PUMP WHEN IT IS NOISY:
Remove the hydraulic motor (5.5)
Switch the motor on and listen it: If it is not
noisy, replace the pump.
