MOBILE TABLE IS VERY
HEAVY: HANDLE IT WITH
CARE TO AVOID FEET AND
FINGERS CRUSHING.

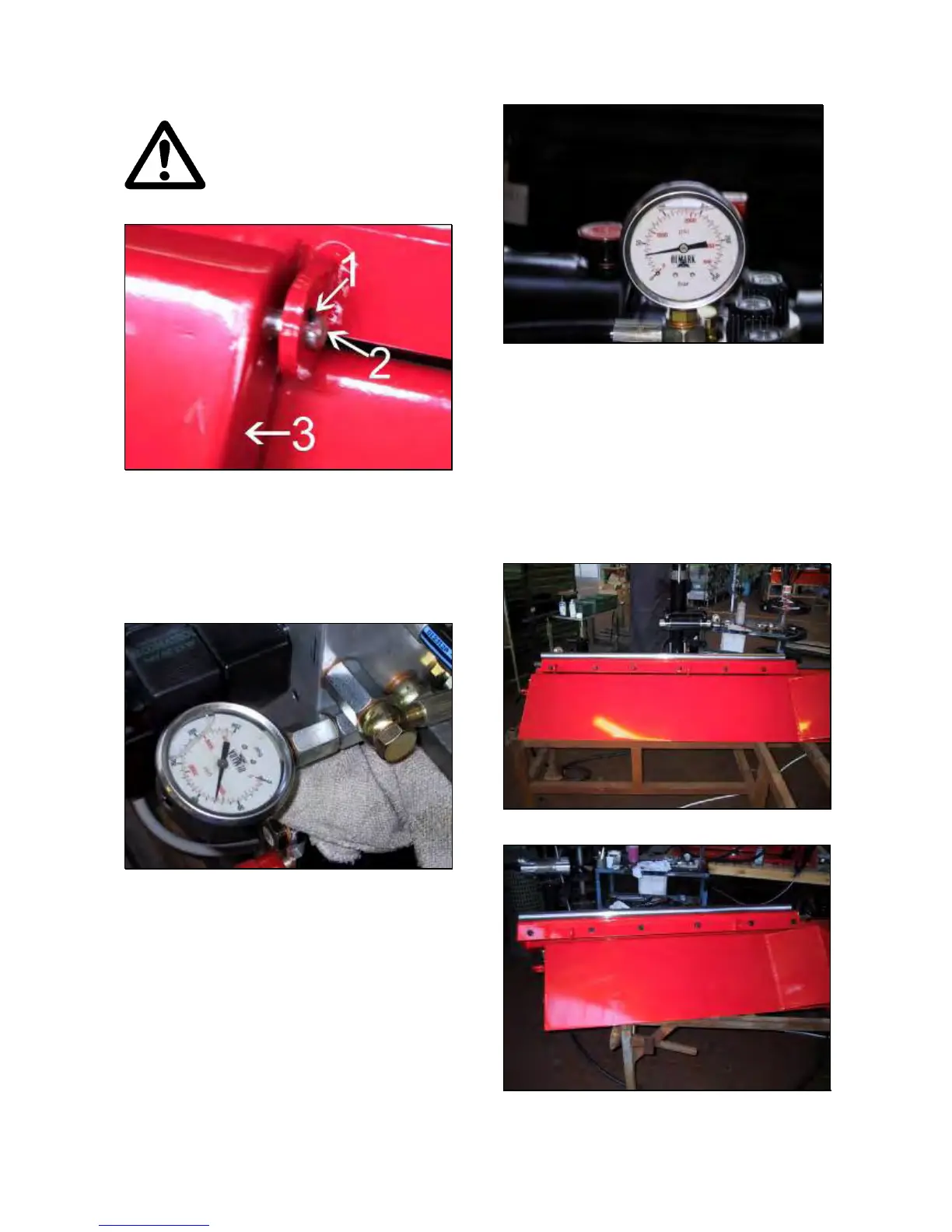

Fig.161
 Close the saddle cylinder completely.
 Switch the machine off.
 Press the coil valve by screwdriver to unload
the remaining pressure ( 5.14 Fig.93).
 Install the manometer on the saddle hose of
the hydraulic assy (Fig.162).
Fig.162
 Switch the machine on.
 Make a saddle translation ‘till end of stroke
watching the manometer: the pressure shown
by the manometer must be included between
30 and 50 BAR (430 and 720 PSI) during all
translation (Fig.163).
Fig.163
 If the sliding pressure shown by the
manometer will be considerably higher than
50Bar (720PSI), the saddle needs adjustment.
TO ADJUST THE SLIDING PRESSURE:
 Position the saddle in the middle of the frame
on the king 5600R (Fig.164), while the King
5600 saddle needs to be open a little
(Fig.165).
Fig.164
Fig.165
