BOXER KING 5600 - Saddle Cylinder Sliding Hydraulic Pressure: Check and Adjustment

Service Manual 04/2010 Rev.B
83

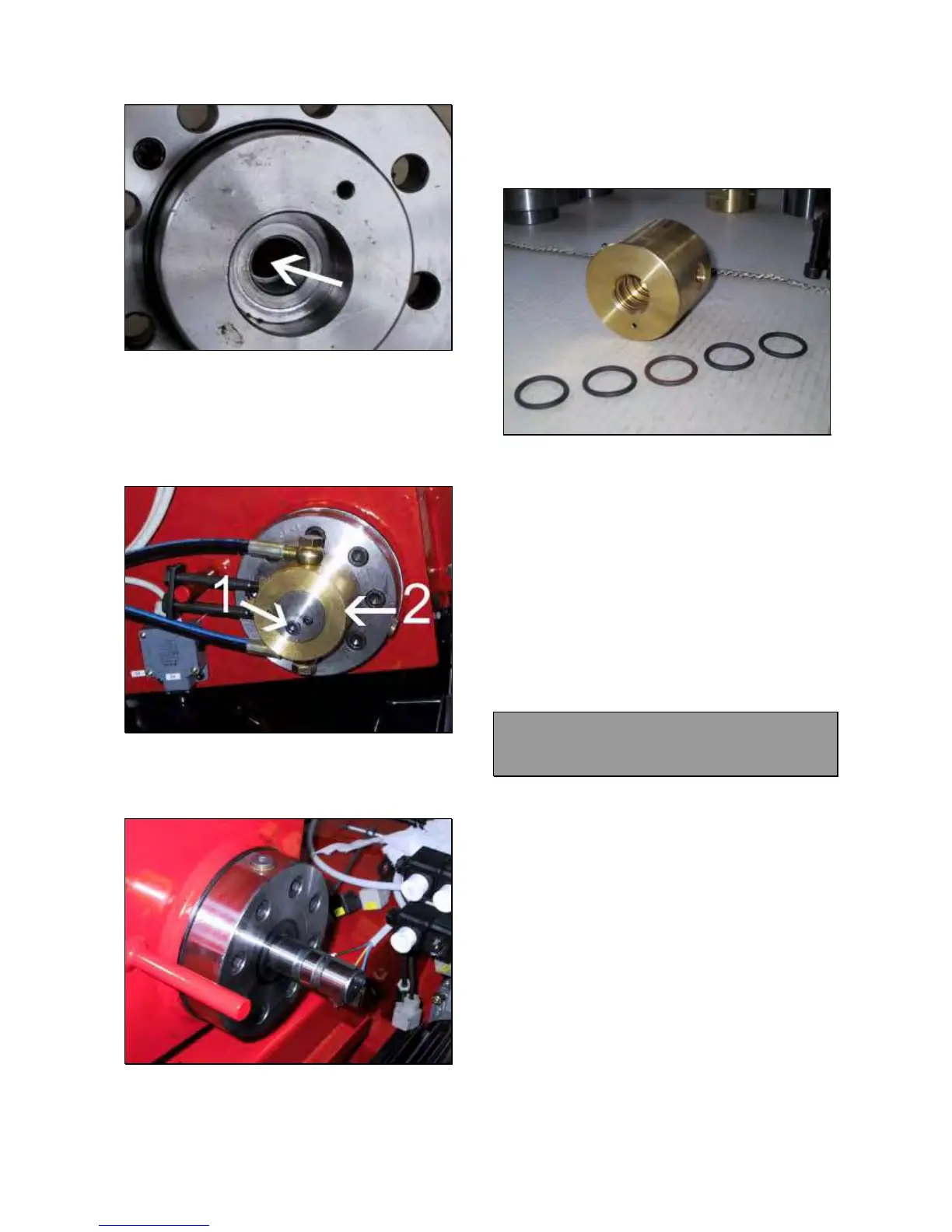

Fig.157
TO REPLACE THE FLANGE:
 Remove the small and big flange O rings.
 Remove the screw #1 and the washer
(Fig.158).
Fig.158
 Remove the manifold #2 (Fig 158) from the
flange (Fig.159).
Fig.159
IMPORTANT!
IN CASE OF FLANGE REPLACEMENT IT IS
SUGGESTED THE REPLACEMENT FO THE
MANIFOLD “O” RINGS (FIG.160).
Fig.160
 Mount the manifold revolving on the cylinder
flange by using some grease to make the
operation easy.
 Install the washer #2 (Fig.158) and fit the
screw #1 (Fig.158) by using green loctite.
 Mount the piston release locking valve (
6.5.2).
 Install the locking valve ( 6.5.1).
 Replace the small and big cylinder flange O
rings.
 Mount the rear flange on the chuck cylinder
( 6.5.1).
 Verify if the machine works fine.
6.6 SADDLE CYLINDER SLIDING
HYDRAULIC PRESSURE : CHECK
AND ADJUSTMENT
 : 1h
 : End wrenches 10, 17, 19, 17mm socket
wrench, 6mm Allen wrench, rubber hammer,
wrench adjustment of saddle clearance,
manometer with adapter.
L : Incorrect pressure may cause the following
malfunction:
1. Low bead breaker power.
2. Slow saddle sliding.
TO CHECK THE SLIDING PRESSURE:
 Remove the pin #1 (Fig.161).
 Pull out the pin #2 and remove the mobile
table #3 (Fig.161)
