BOXER KING 5600 - Shut off Cable: Check and Replacement

Service Manual 04/2010 Rev.B
67

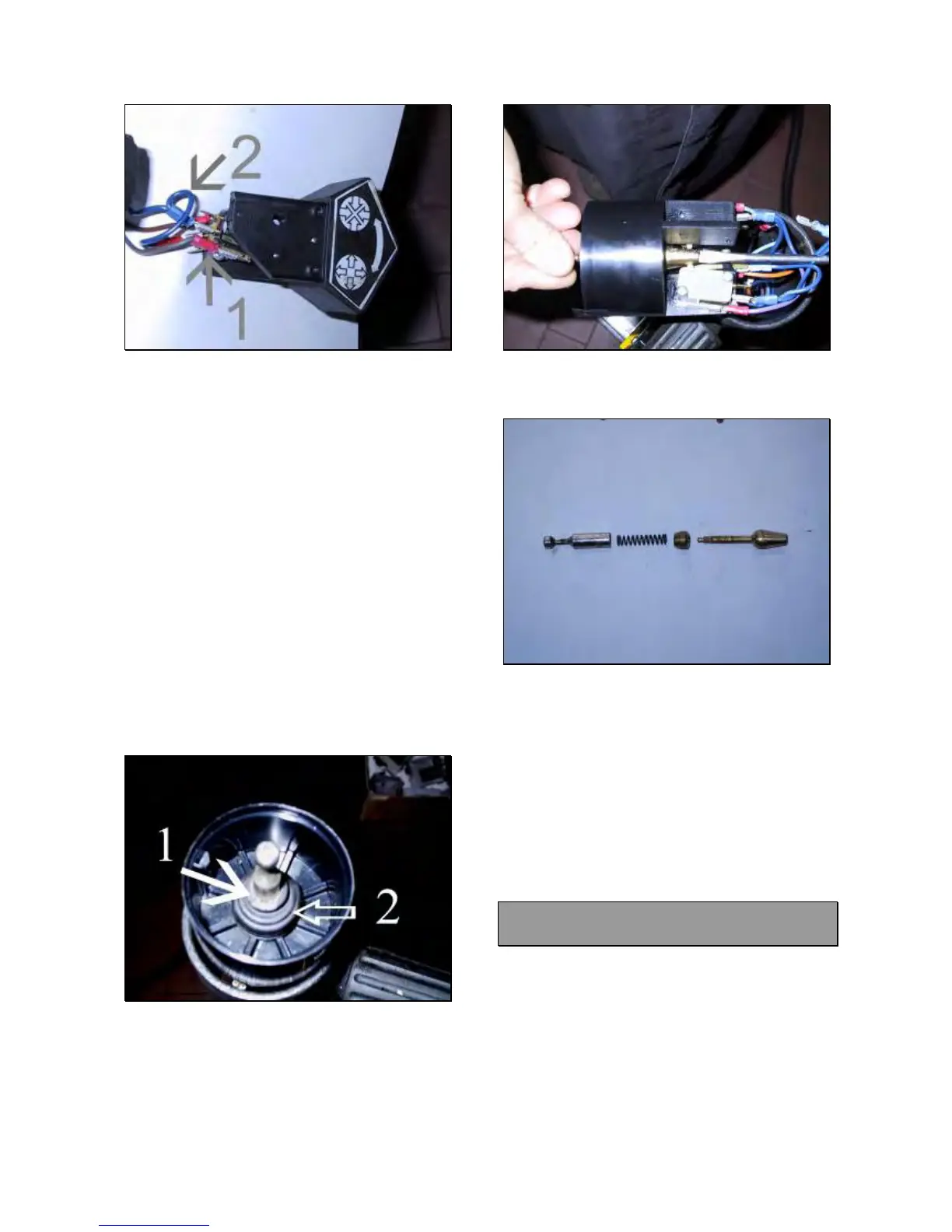

Fig.100
 Verify if it works fine.
 Fit the assy on the portable control.
TO REPLACE THE 8 OR 4 POSITION
HOLDERS:
 Remove all wires and micro switches from
their holder.
 Remove the top cover.
IMPORTANT!
BEFORE STARTING WITH ANY DISMOUNTIG
OPERATION VERIFY BY USING
SCREWDRIVER IF THE HANDLE IS WELL
TIGHTENED (Fig.102).
IF IT IS LOOSENED DISMOUNT THE
COMPLETE HANDLE AND MOUNT IT AGAIN
BY USING LOCTITE ON THE THREAD.
 Remove the seeger ring #1 and the rubber
protection #2 (Fig.101)
Fig.101
 Remove the pins, the spacer and the spring
from the holder (Fig.102).
Fig.102
 Verify if all components are fine (Fig.103)
Fig.103
 Take the new holder.
 Install the pins, the spacer and the spring on
the new holder by using loctite on the thread.
 Install the rubber protection #2 and the seeger
ring #1 (Fig.101).
 Install the micro switches.
 Install the top cover.
 Make some turns of tape all around the 8 or 4
position switch to avoid short circuit.
 Verify if it works fine
 Mount the assy on the portable control.
5.18 SHUT OFF CABLE: CHECK AND
REPLACEMENT
 : 1h
 : Small standard screwdriver, medium cros
screwdriver, multimeter , pliers.
L : Defective cable may cause the following
malfunction:
1. The chuck arm does not come down.
2. Fuse F7 blows up.
IMPORTANT!
