Service Manual 04/2010 Rev.B
7

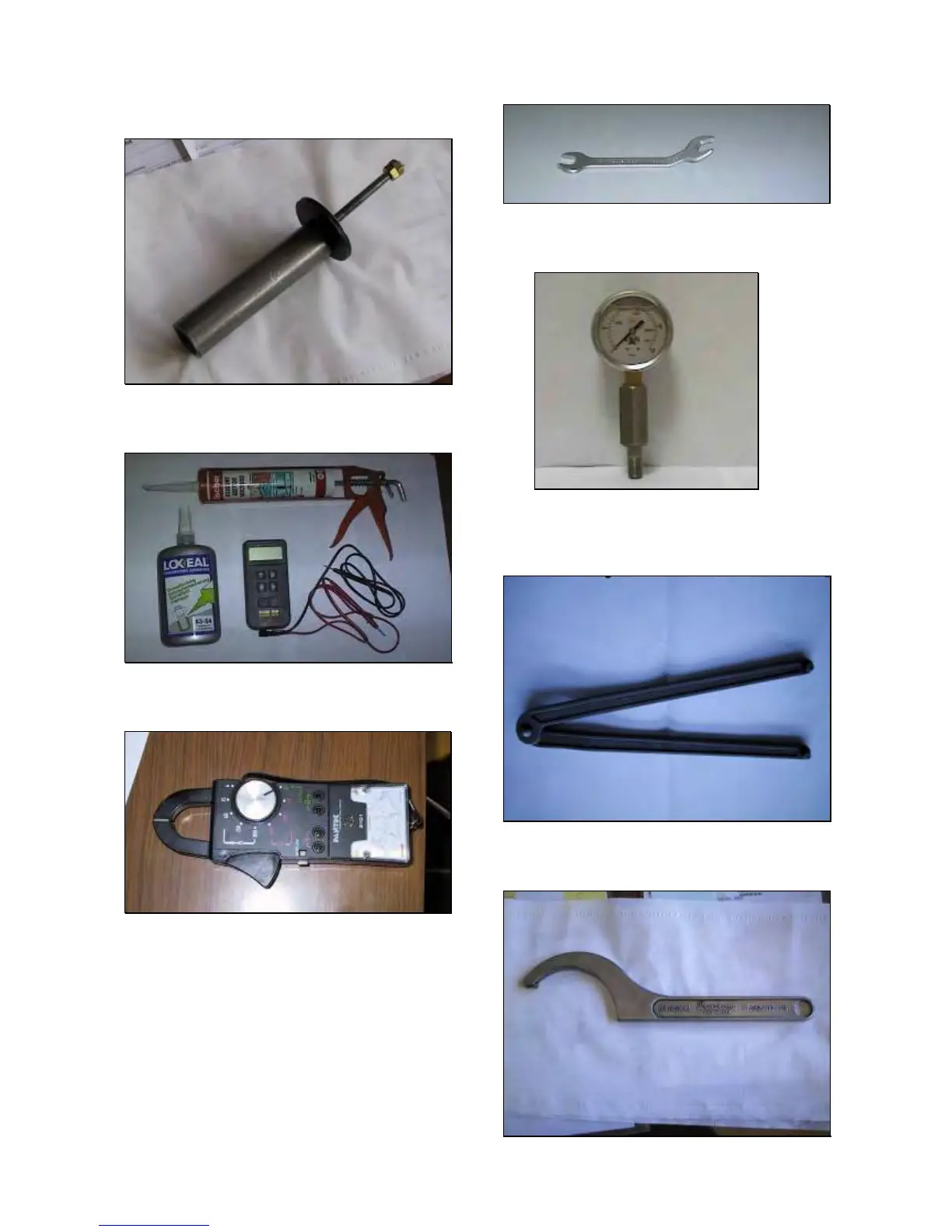

1 Tool for removal of cylinder pin # 4013567
Fig.10
1 Multimeter, Loctite green type, Silicon
Fig.11
1 Ammeter pliers
Fig.12
In addition to a standard set of hand tools, the
following special tools are required:
1 Wrench adjustment of saddle clearance #
0013564.
Fig.13
1 Manometer with adapter # 4006849.
Fig.14
2 Calliper wrenches of 5 and 6mm to open the
cylinders.
Fig.15
Spanner wrench
