BOXER KING 5600 - Page 89

Service Manual 04/2010 Rev.B
89

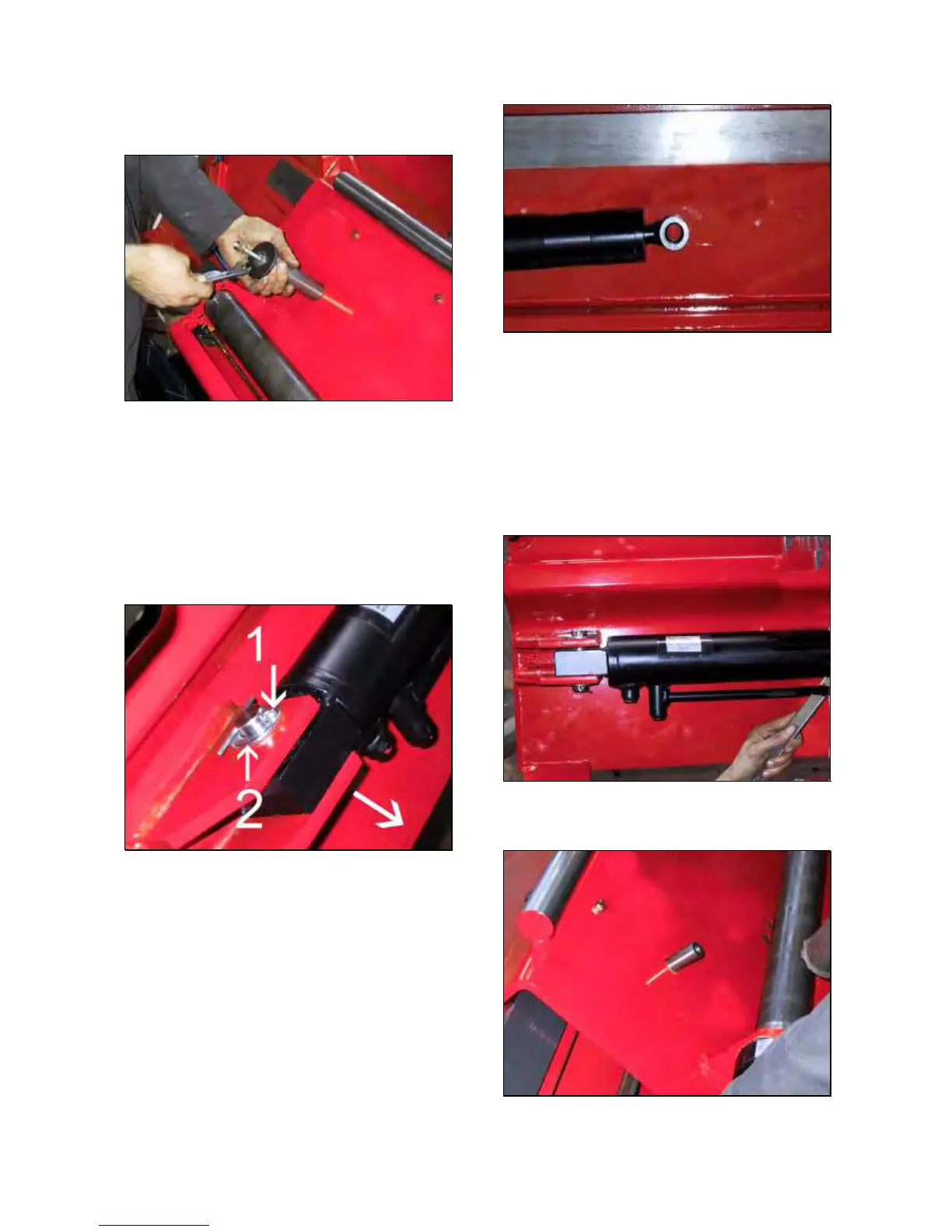

 Remove the pin by using the tool for removal
of cylinder pin (Fig.179).
Fig.179
 Close the cylinder.
 Turn off the machine.
 Press the coil valve by screwdriver to unload
the remaining pressure (5.13 Fig.93).
 Remove the oil hoses.
 Remove the top split pin #1and washer #2
(Fig.180).
 Remove the cylinder pin from the bottom
(Fig.180).
Fig.180
 Remove the defective cylinder.
 Install the new cylinder.
IMPORTANT!
THE PISTON MUST BE ORIENTED AT 90°
COMPARED TO THE FRAME FOR AN EASY
INSTALLATION ON THE SADDLE (FIG.181)
Fig.181
 Mount the cylinder pin from the bottom.
 Install the top washer #2 and split pin #1
(Fig.180).
 Fit the oil hoses by using new copper
washers.
 Switch the machine on.
 Take a tyre lever, open the cylinder and drive
its piston by lever into the saddle bracket
(Fig.182).
Fig.182
 Install the pin (Fig.183).
Fig.183
 Mount the plate locking (Fig.178).
