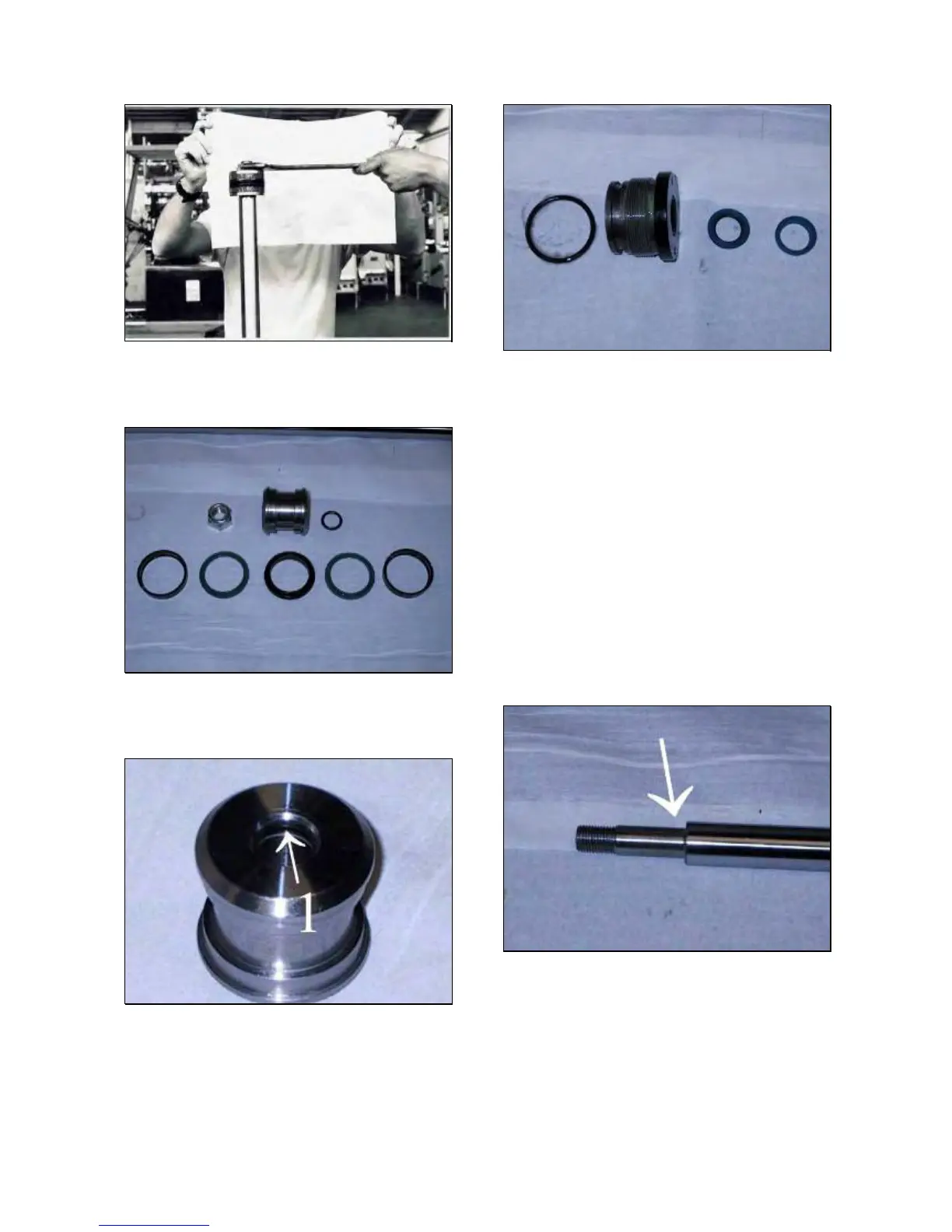

Fig.193
 Remove the seal and the plastic guides.
 Remove the piston (Fig.194).
Fig.194
 Remove the O ring #1 (Fig.195) inside of the
piston.
Fig.195
 Take away the ring screw.
 Remove the O ring and the lip seal from the
ring screw (Fig.196).
Fig.196
 Verify the condition of all components.
 Clean very accurately all parts, wash the rod
thread by using solvent and dry it carefully.
 Install the new O ring and the new lip seal on
the ring screw.
NOTE: WHEN INSTALLING THE “O” RING ON
THE RING SREW BE CAREFUL TO NOT TWIST
IT.
 Grease the seal and insert the ring screw on
the piston rod.
 Mount the piston on the rod.
IMPORTANT!
THE “O” RING MUST BE PLACED IN
OPPOSITE POSITION COMPARED TO THE
THREAD (Fig.197)
Fig.197
 Install the new seals and the new plastic
guides.
IMPORTANT:
TO MOUNT THE NEW PISTON SEALS DO NOT
USE ANY SCREWDRIVER OR ANY
SHARPENED TOOL. USE HANDS ONLY
(FIG198).
