62
Technical Manual
GB

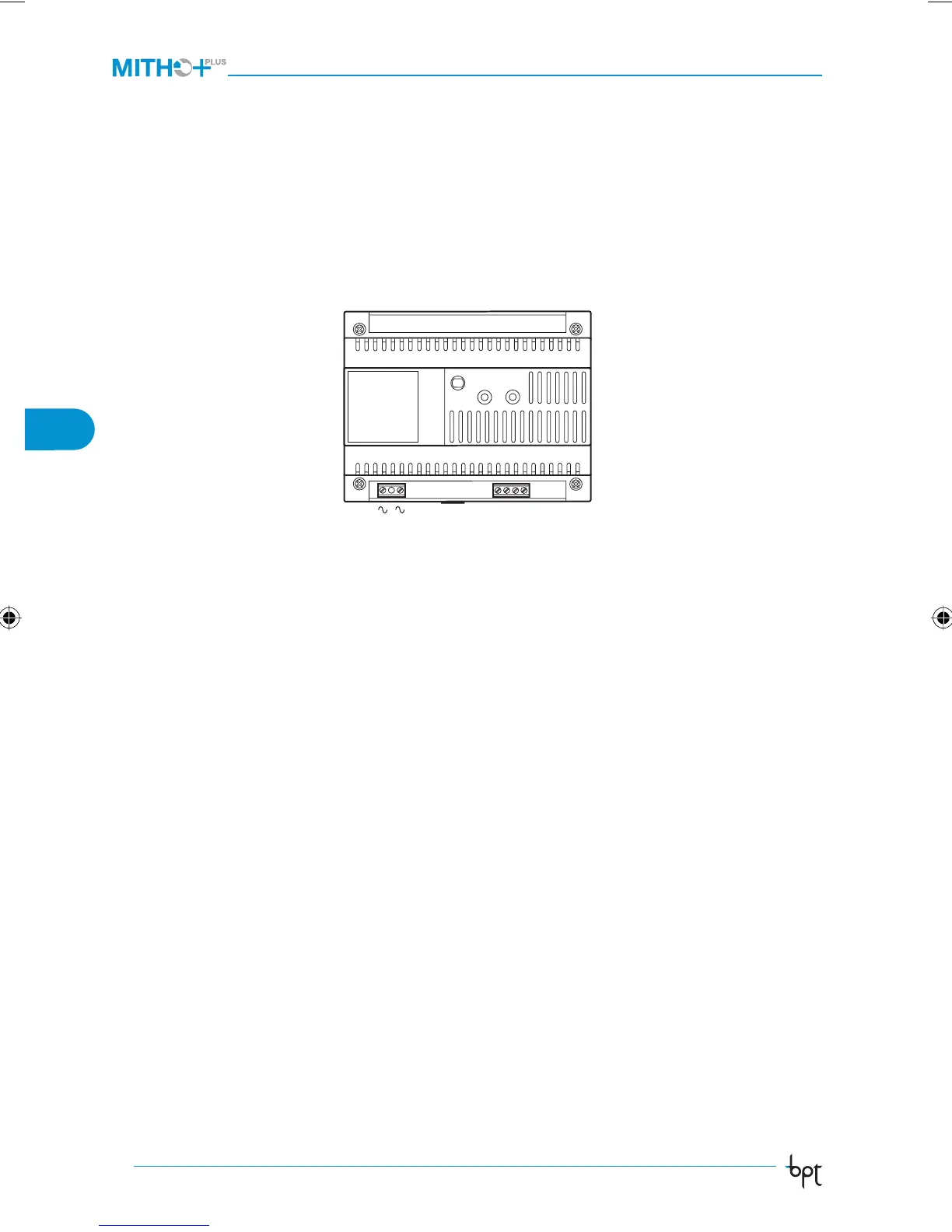

Power Supplier VAS/100.30
This is composed of a card that contains the recti er and the stabilizer.
It can provide1.7A at 17.5V DC. It is protected against overloads and short circuits. The VAS/100.30 can also be
used as an additional power supplier if the system requires it.
1
A
G
2
1
2
Technical Features
• Power supply: 230 VAC 50/60 Hz. Auto-resettable electrical protection.
• Output voltage: 17.5V DC, 1.7A in continuous service.
• Electrical input: 60 VA.
• Operating temperature: from 0 °C to +35 °C.
• Dimensions: low-profile 8-unit module.
ManTecnico_MithoPlus IT_GB 2484562 62ManTecnico_MithoPlus IT_GB 2484562 62 18-06-2008 11:50:0918-06-2008 11:50:09
