Bpt mitho+ - Terminal Configuration and Programming

73
Technical Manual
GB

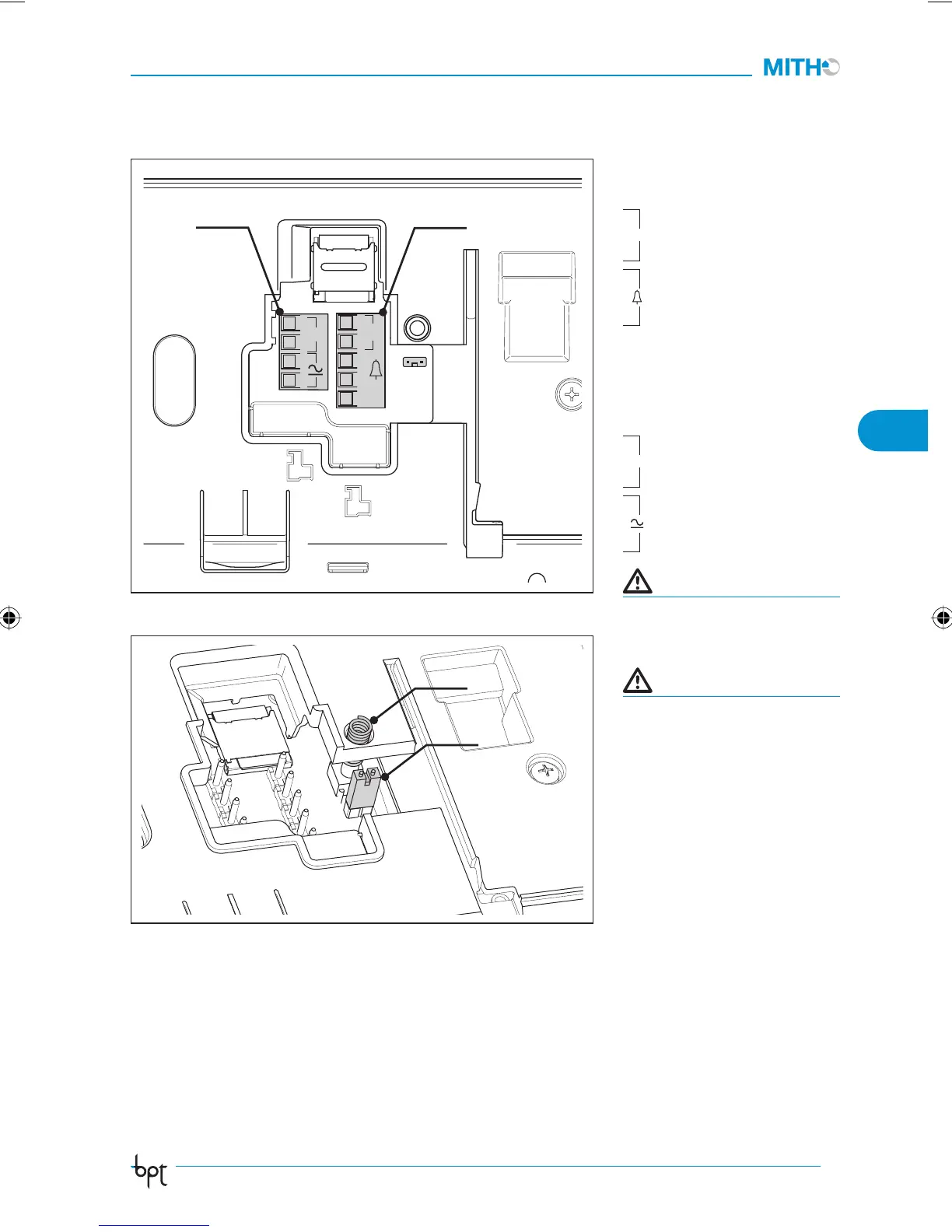

Terminal function
Terminal block M1
2-wire bus X1 video entry
control system bus
B
+
ground  oor call input
–
alarm input
(active towards earth)
AL
Terminal block M2
Multimaster BUS MM
local power supply
14÷24 V DC 12÷16 V AC
ATTENTION
Once wiring is complete, careful-
ly re-insert the terminal boards as
shown in  gure 9.
ATTENTION
The video terminal can be pow-
ered by both direct and alter-
nating current.
Function of button SW2
(Tamper)
The video terminal is equipped
with a an anti-tamper contact, SW2
(fig. 10), to be used if the device is
connected to Brahms anti-intrusion
systems.
Function of the jumper
SW4 (Closure resistance)
The appliance is equipped with
an SW4 jumper (fig. 10), for end
of line closure impedance of the
video entry control system.
Remove the jumper if the line
continues towards other video
entry control receivers.
AL
B
+
–
MM
9
10
SW2
SW2
SW4
SW4
M1
M1
M2
M2
