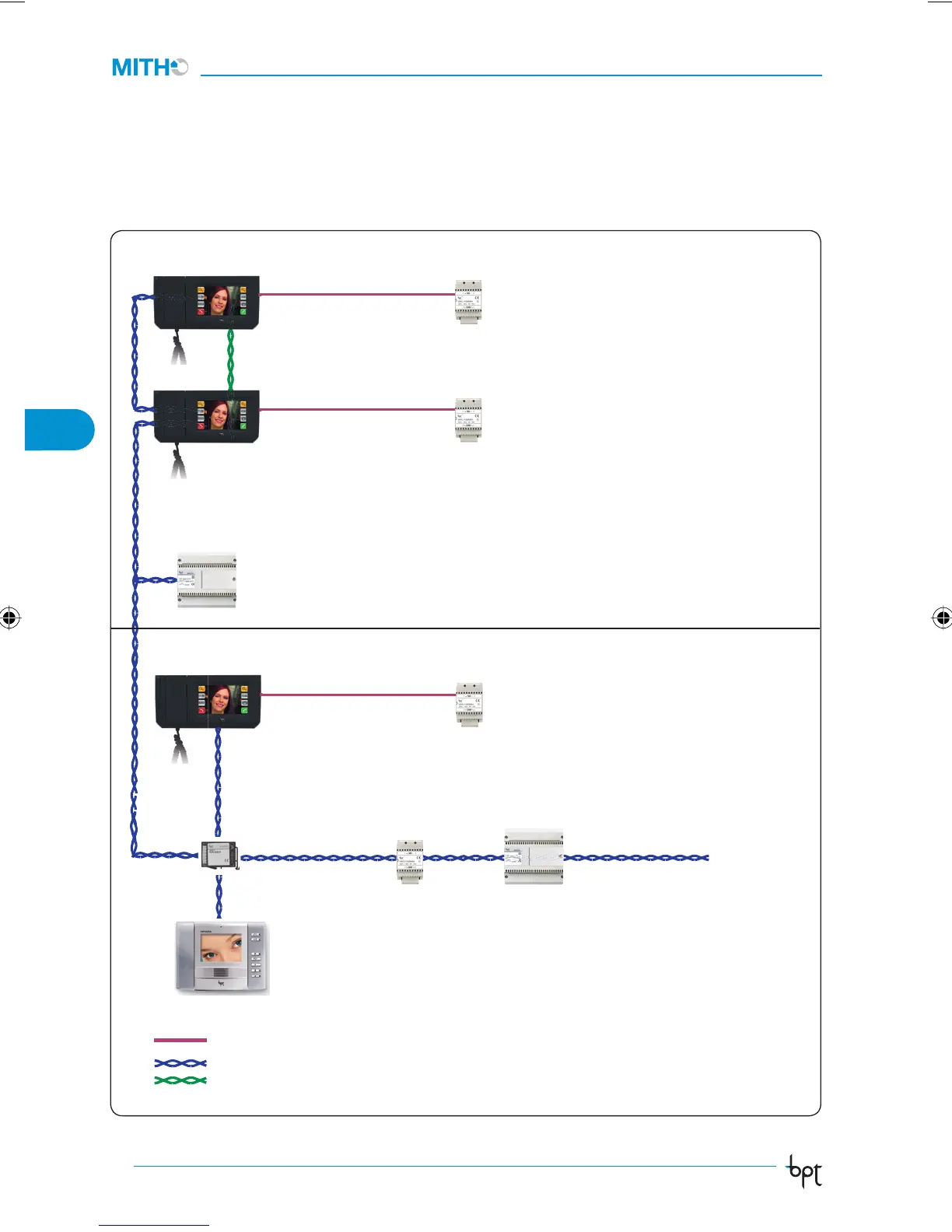

Example No. 2
Installation in 300 video entry control systems.
Local power supply
2-wire bus X1 video entry control system bus
Multimaster bus
MITHO
MITHO
POWER SUPPLIER
VAS/100MH
POWER SUPPLIER
VAS/100MH
POWER SUPPLIER
XA/301LR
OPHERA
AT ENTRY
PANEL
MITHO
POWER SUPPLIER
VAS/100MH
INTERCOM SELECTOR
VSE/301
APARTMENT 1
APARTMENT 3
VIDEO DISTRIBUTOR
XDV/304
MODULATOR
VIDEO
XAV/300
