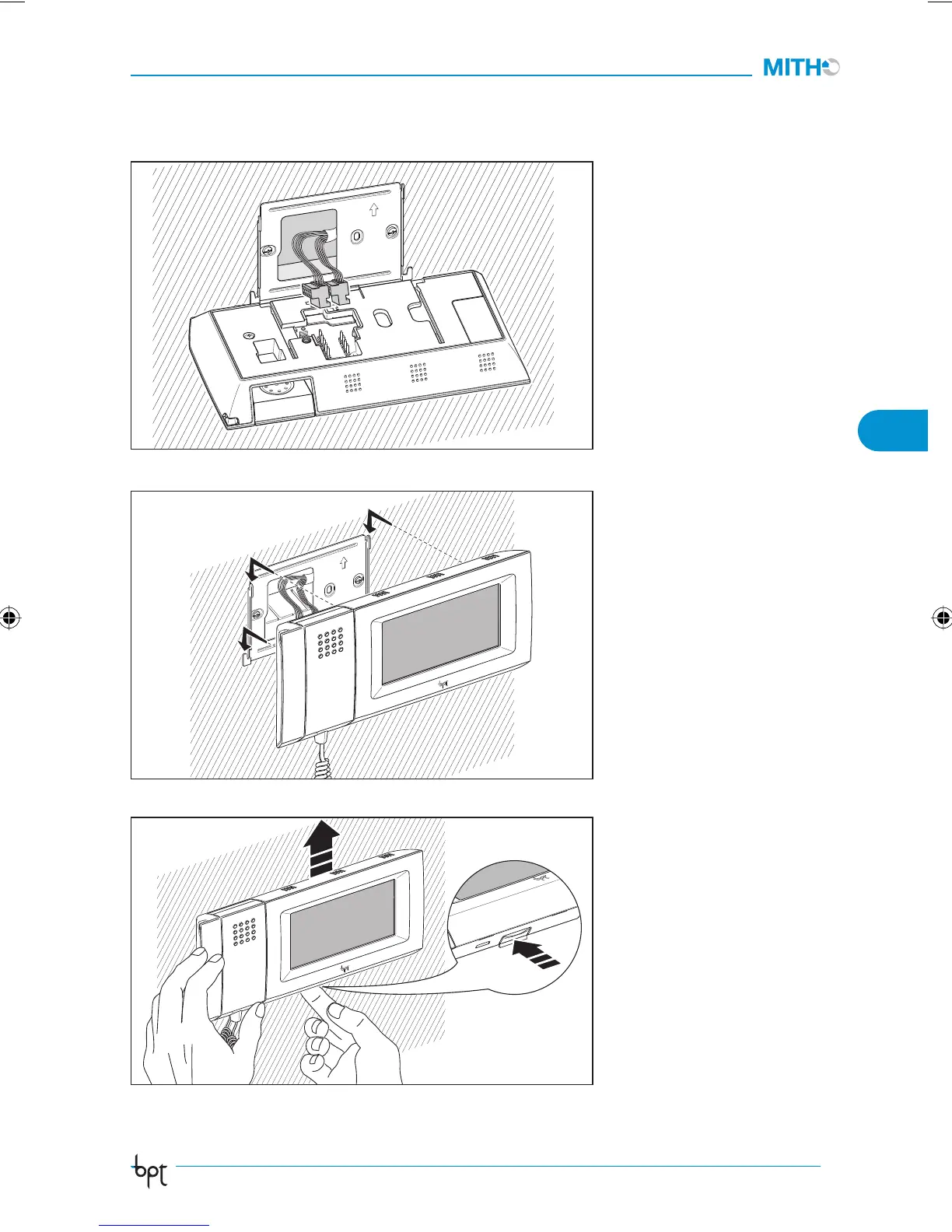

Make the connections (fig. 3)
(see “INSTRUCTIONS FOR CON-
NECTION”).
Fasten the video terminal to the
metallic support as shown in fig-
ure 4.
To release the appliance from the
metal support, press the plastic
hook and lift the terminal as illus-
trated in gure 5.
