ENGLISH 30 / 78 CAP. 7 - CALIBRATION
MULTIGAS 85
00

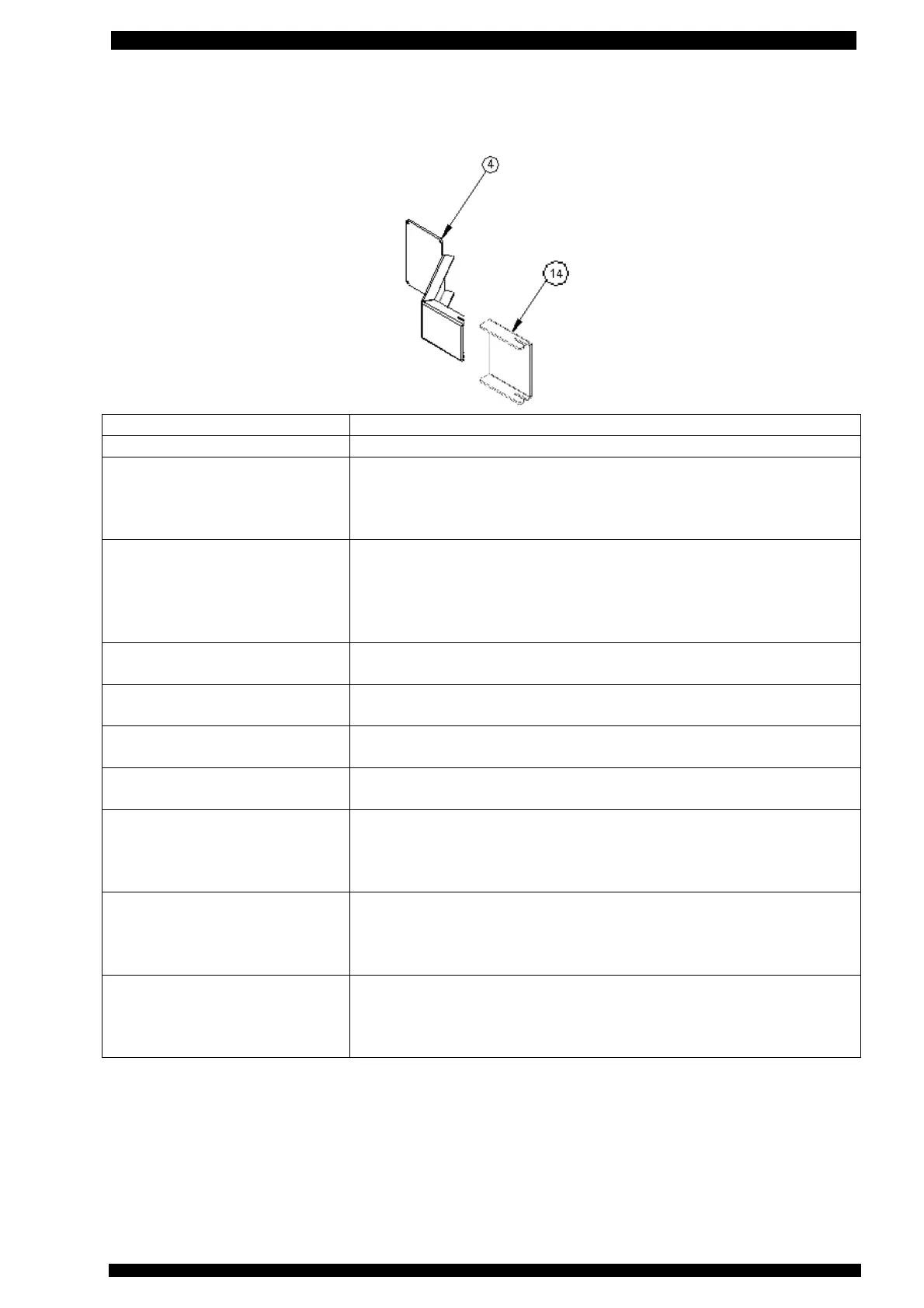

Only for CLIMA SUPER 9000; CLIMA-1234-H; CLIMA-1234-HO; for gas weight calibration, use the
following 322 g reference weight, assembled as per following instructions:
FUNCTION ITEM
PROGRAMMING 10. DB9 M/F pin to pin serial cable
ZERO PRESSURE 9. Coupler for the recharge of inner tank and for pressure sensors
calibration operations, for gas R-1234yf (2 pcs).
12. Coupler for the recharge of inner tank and for pressure
sensors calibration operations, for gas R-134A.
PRESSURE CALIBRATION 9. Coupler for the recharge of inner tank and for pressure sensors
calibration operations, for gas R-1234yf (2 pcs).
12. Coupler for the recharge of inner tank and for pressure
sensors calibration operations, for gas R-134A.
11. Gauge for Unit pressure sensors calibration.
NEW & EXHAUST OIL
WEIGHT CALIBRATION
3. 303 g sample weight for new oil scale calibration.
2. 293 g sample weight for exhausted oil scale calibration.
GAS WEIGHT CALIBRATION 5. Distance bracket for tank lifting
4. Sample weight support bracket
SOLENOID VALVE
DISASSEMBLY
8. 24 mm spark plug to disassemble pressure sensors
INTERNAL VESSEL MANUAL
VALVE CLOSING
13. 7 mm box end wrench for opening/closure of tank taps
INTERNAL VESSEL GAS
RECHARGE
9. Coupler for the recharge of inner tank and for pressure sensors
calibration operations, for gas R-1234yf (2 pcs).
12. Coupler for the recharge of inner tank and for pressure
sensors calibration operations, for gas R-134A.
INTERNAL GAS FLUSHING 15. Fitting for equipment internal flushing for R-134a quick
couplers.
16. Fitting for equipment internal flushing for R-1234yf quick
couplers.
INTERNAL VESSEL GAS
EMPTYING
15. Fitting for equipment internal flushing for R-134a quick
couplers.
16. Fitting for equipment internal flushing for R-1234yf quick
couplers.
