ENGLISH 29 / 78 CAP. 7 - CALIBRATION
7.2 CLIMA GAS R-1234YF / R-134A SERVICE KIT FOR STATIONS
WITH GAS R134A AND R1234YF

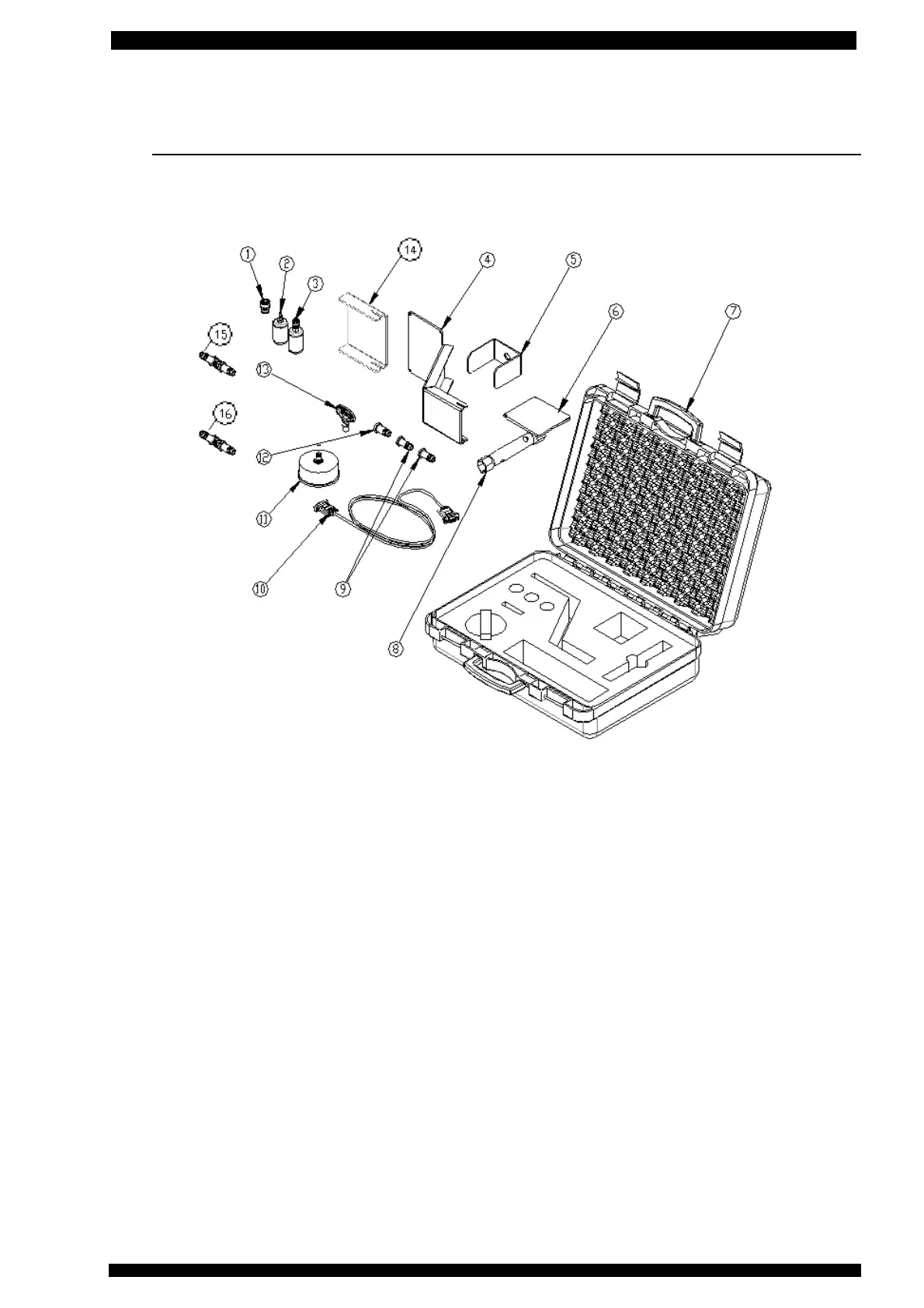

This is another type of service kit suitable to execute programming, calibration and maintenance
activities on MULTIGAS 8500 equipment.
1. Quick coupler for oils scale calibration for CLIMA SUPER 9000 (to be connected to sample
weight no. 2 or no. 3).
2. 293 g sample weight for exhausted oil scale calibration.
3. 303 g sample weight for tracer scale calibration.
4. Sample weight support bracket.
5. Distance bracket for tank lifting.
6. User manual CD-ROM.
7. Service Kit Case.
8. 24 mm spark plug to disassemble pressure sensors
9. Coupler for the recharge of inner tank and for pressure sensors calibration operations, for
gas R-1234yf (2 pcs).
10. DB9 M/F pin to pin serial cable
11. Gauge for Unit pressure sensors calibration.
12. Coupler for the recharge of inner tank and for pressure sensors calibration operations, for
gas R-134A.
13. 7 mm box end wrench for opening / closure of tank taps
14. Adaptor for sample weight support bracket for CLIMA SUPER 9000
15. Fitting for equipment internal flushing for R-134a quick couplers
16. Fitting for equipment internal flushing for R-1234yf quick couplers
NOTE:
The sample weight support bracket (4) is suitable for the MULTIGAS 8500; this model does not
require the bracket adaptor (14).
