ENGLISH 41 / 78 CAP. 8 - GAS TYPE SWITCHING
MULTIGAS 85
00

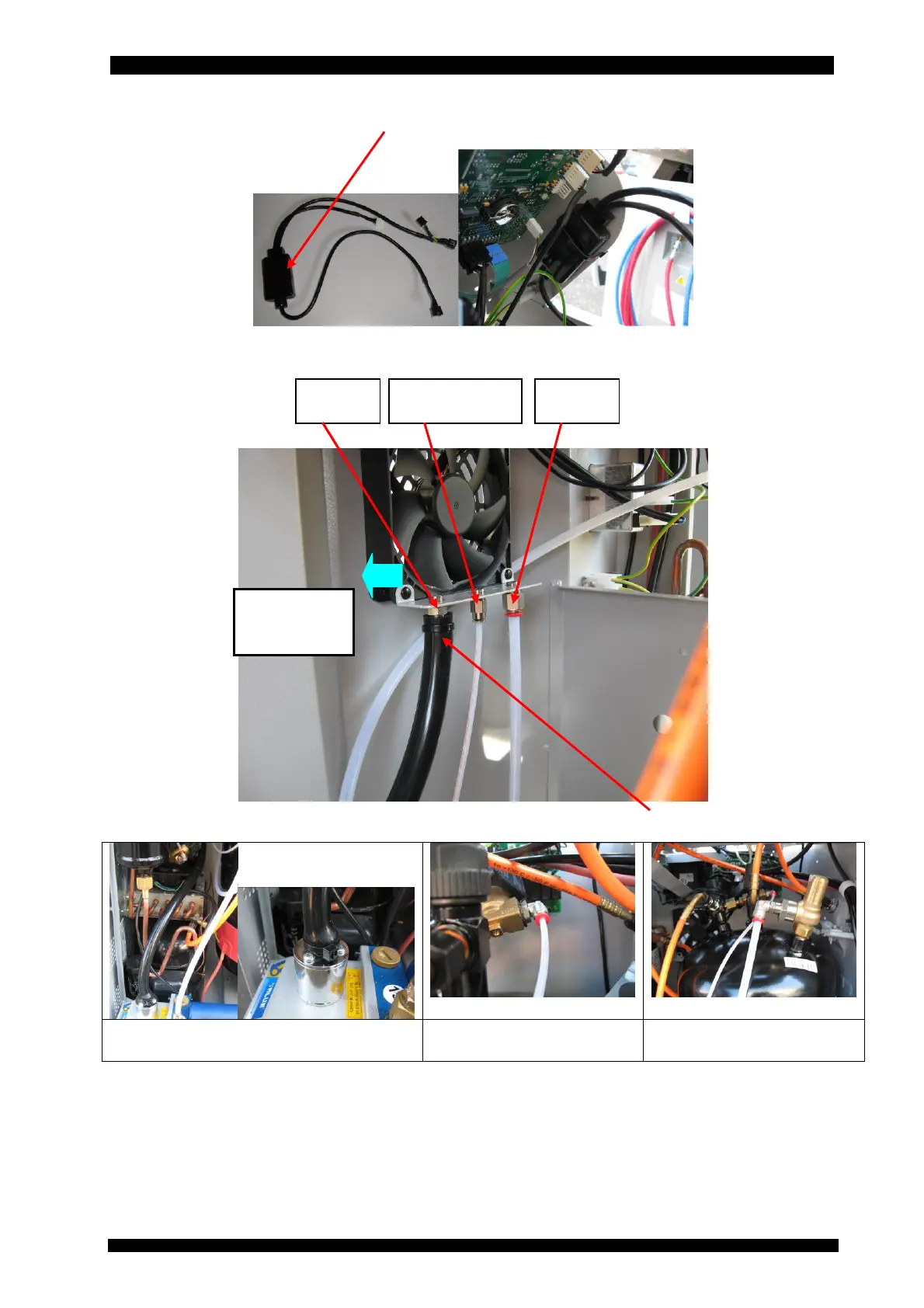

o Assemble the black box to the case of equipment using the cable ties
d) Fix the hoses on the fan fittings and connect them to the components below
Fix the vacuum pump hose using the cable ties
Fix the vacuum pump hose using cable
ties
Not condensable gas valve Safety valve
Non
condensable
gas valve
Vacuum
pump
Safety
valve
AIR FLOW
DIRECTION
