Body Panels
48 Servicing and Maintaining Your Empulse
UPPER BODY PANEL
1. Remove the seat. See “SEAT”, p a g e 4 7 .

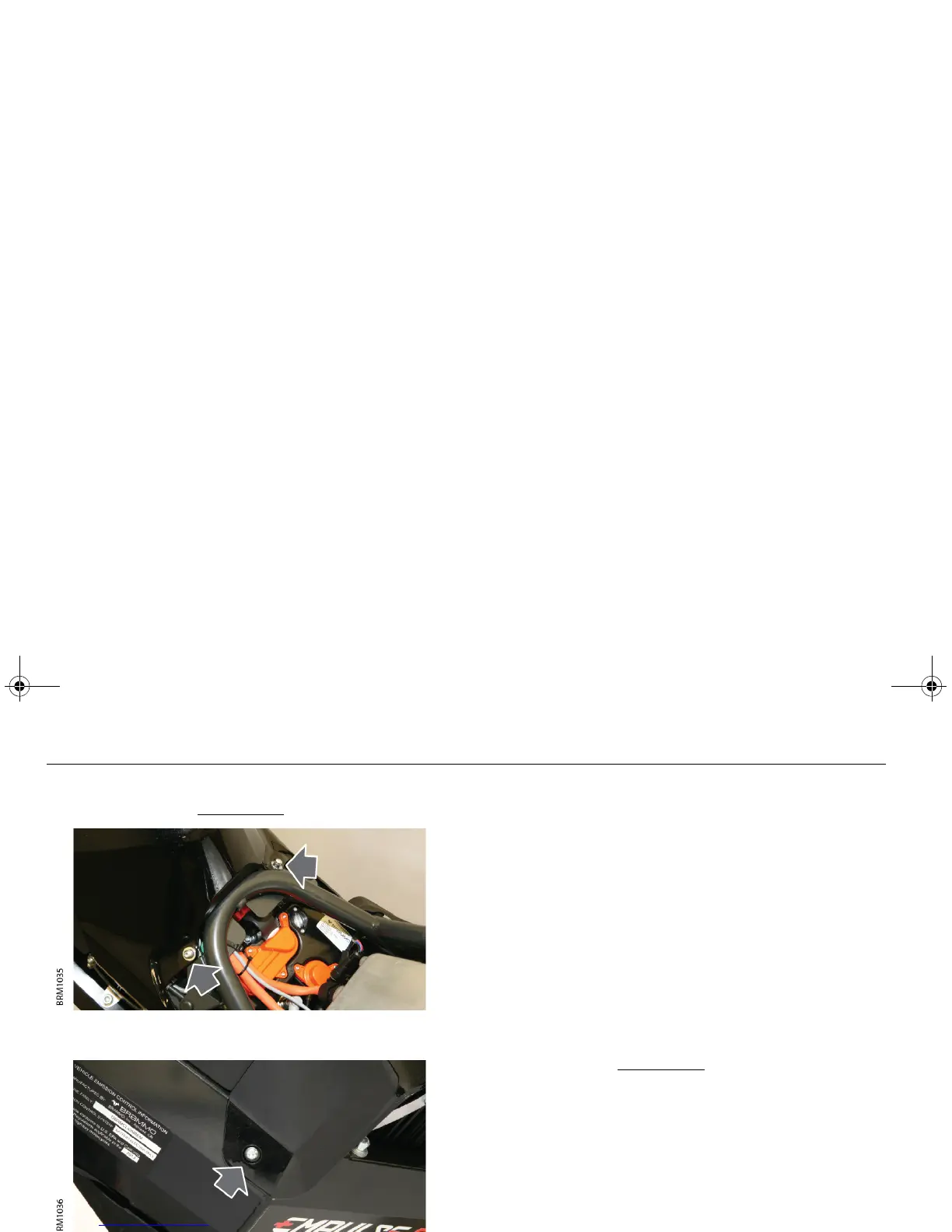

2. Remove the two bolts securing the rear of the upper body panel
to the frame. Collect the washers.
3. Remove the two bolts securing the front of the upper body panel
to the frame.
4. Lift the rear of the upper body panel and carefully slide the
upper body panel rearwards to release it from the upper body
insert.
5. Remove the upper body panel.
Note: Always store body panels face up to prevent the painted
surfaces from becoming scratched.
Installation
1. Carefully position the upper body panel on the Empulse and
make sure it is correctly located under the upper body insert.
Note: When positioning the panel, make sure that no harnesses or
cables will be trapped between the panel and the frame.
2. Loosely install the four retaining bolts to correctly align the panel
to the frame.
3. Tighten the four bolts to 1 Nm.
4. Install the seat. See “
SEAT”, p a g e 4 7 .
