Body Panels
Servicing and Maintaining Your Empulse 49

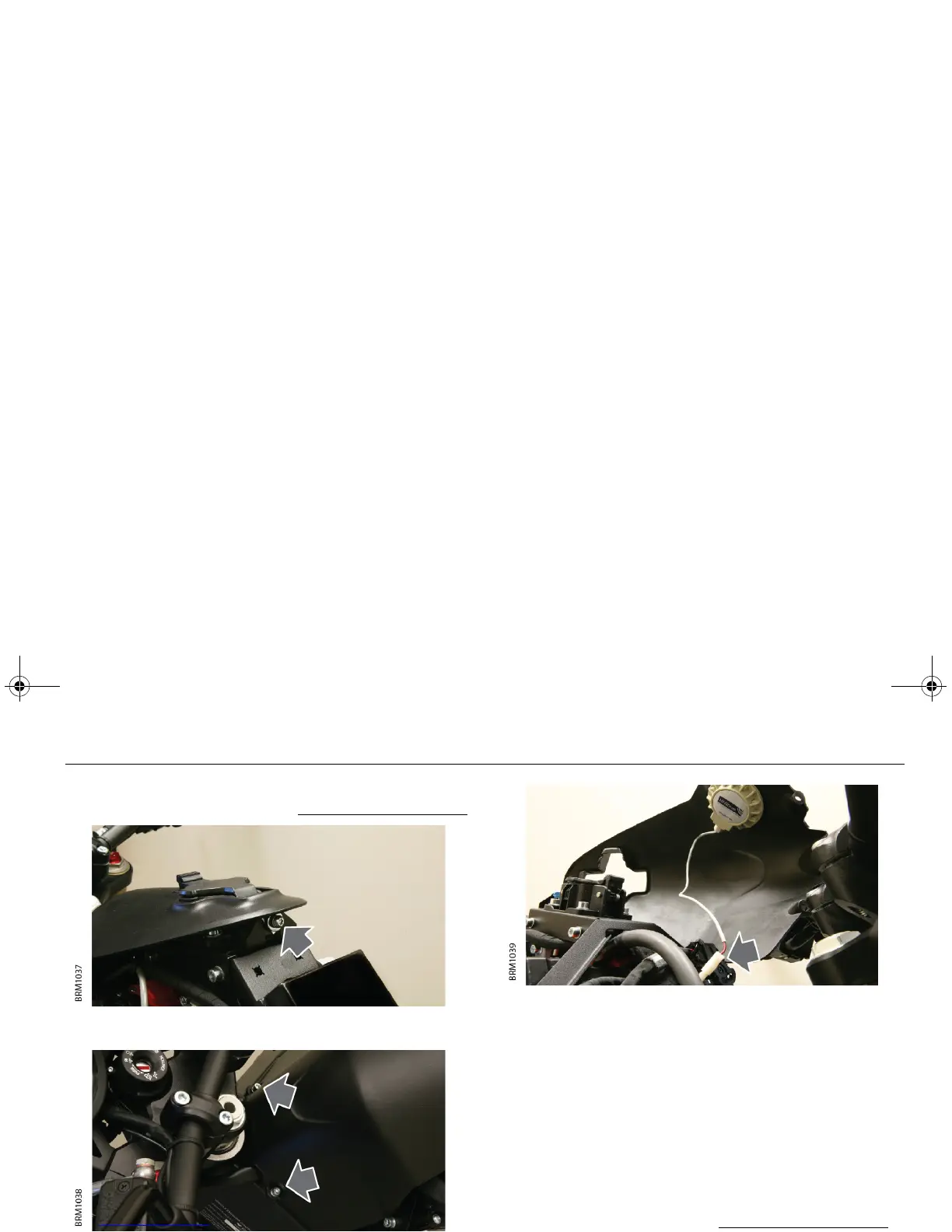

UPPER BODY INSERT
1. Remove the upper body panel. See “UPPER BODY PANEL”, p a g e 4 8 .
2. Remove the bolt securing the rear of the upper body insert to
the frame.
3. Remove the two bolts securing the front of the upper body panel
to the frame. Take care not to scratch the panel when removing
the bolts.
4. For 2013 models only: Lift the upper body insert to gain access to
the speaker harness connector and disconnect the connector.
5. Remove the upper body insert.
Installation
1. Position the upper body insert on the Empulse and make sure it
is correctly located around the charging connector.
Note: When positioning the panel, make sure that no harnesses or
cables will be trapped between the panel and the frame.
2. Loosely install the three retaining bolts to correctly align the
panel to the frame.
3. Tighten the three bolts to 1 Nm.
4. Install the upper body panel. See “
UPPER BODY PANEL”, p a g e 4 8 .
