B Series Degreaser Controls
Rev G Page 25
2.4.3 Single Axis Lift Option (B452 and B950 Only)
The Lift Option automatically cycles the parts through the ultrasonic sump, vapor zone dwell,
and freeboard zone dwell before returning to the load/unload position. Dwell times are
programmable. The power cover (if equipped) will automatically open at the start and close
at the completion of the lift cycle. Parts baskets are manually loaded onto and unloaded from
the lift hooks.

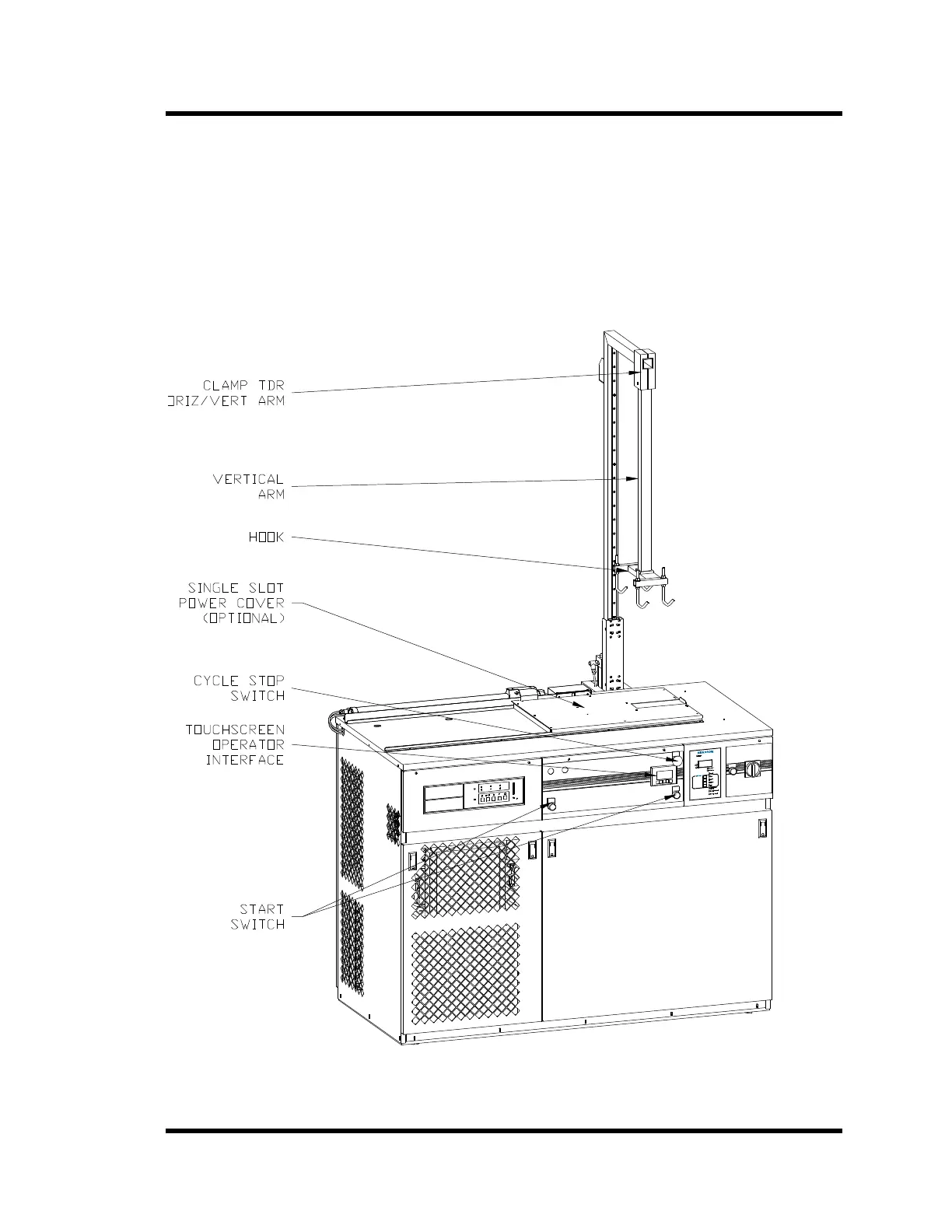

Figure 2-6 Single Axis Lift Option Front View
