B Series Degreaser Installation
Rev G Page 41
TB4-5 Restart 5
TB4-4 Restart 4
TB4-3 Restart 3
TB4-2 Restart 2
TB4-1 Restart 1
TB4-9 through TB4-13 Restart Common
Always use the highest available restarts first .
Caution: Using Restarts limits the number of TDR programs that may be stored by the TDR and
accessed with the Multi-program Option. Closing a switch on the Multi-program
Option will override a restart and may cause a crash with the power cover.
3.5 Ultrasonic Options
3.5.1 Series 7000 Option
No field connections are required with the Series 7000 ultrasonic option.
3.5.2 Series 8xxx Option
The generators are mounted internally on B Series degreasers. The B452 and B950 use one
generator. The B1950 and B3550 use one generator for 40 khz and two generators for 80 and
120 khz. Where two generators are required, both must be installed and operated
simultaneously.
The ultrasonic generator(s) is (are) shipped separately and must be connected during
installation.
• Open the degreaser’s generator cover.
• Slide the generator into the support bracket. Center the generator on the degreaser’s
generator cover.
• Tighten the generator cover.
• Plug the RF cable(s) into the RF receptacle(s) on the back of the generator(s).
• Plug the matching control cable(s) into the remote ON/OFF connector(s) on the back of
the generator(s).
• Plug the generator power cord(s) into the matching receptacle(s) on the back of the
degreaser control box.
• Place the generator ON/OFF switch(es) in the ON position.

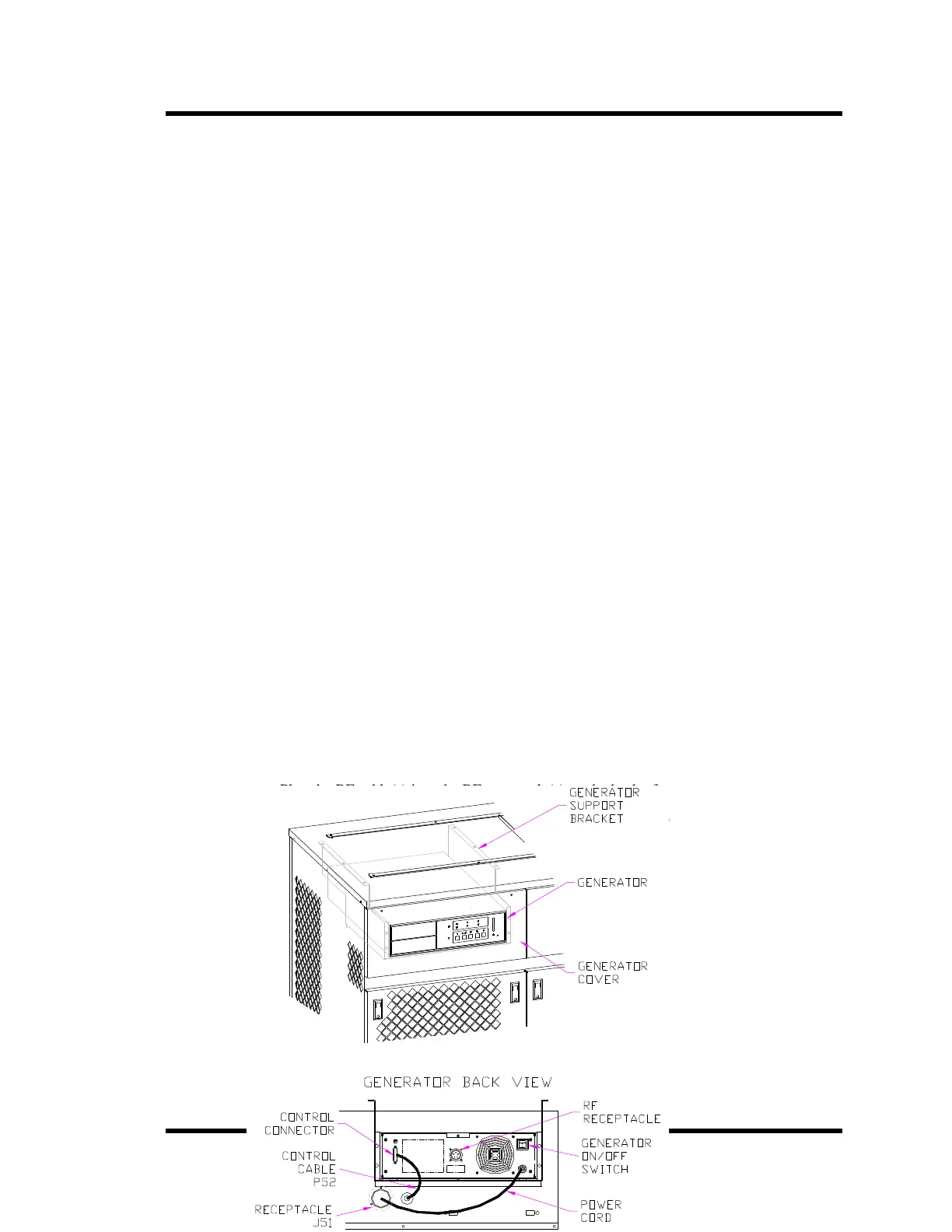

Figure 3-3 Generator Installation
