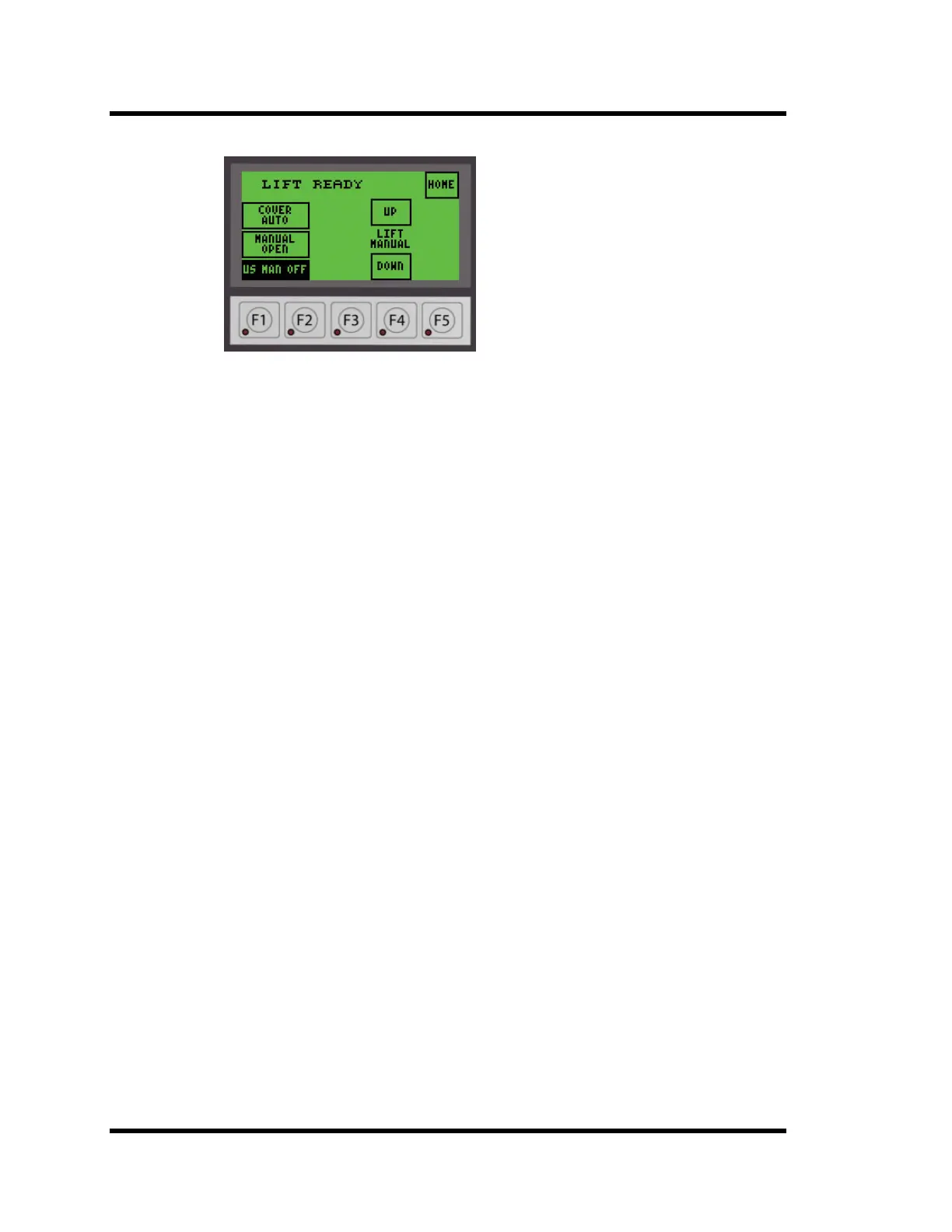

Figure 3-10 Manual Operations Screen Vertical Lift
Note: The US MAN button indicates the current state. US MAN ON would indicate that the
ultrasonics are currently ON and US MAN OFF would indicate the ultrasonics are currently
off.
Note: The ultrasonics must be turned on at the degreaser control panel for the ultrasonics to operate.
3.15.11.1 US MAN ON
Press US MAN OFF to manually toggle the ultrasonics on. The ultrasonics will
continuously operate regardless of the program being run.
3.15.11.2 US MAN OFF
Press US MAN ON to toggle the ultrasonics off. The ultrasonics will remain off unless a
program is run that calls for ultrasonics to be on. Setting US MAN OFF does not prevent
the program from automatically cycling the ultrasonics on and off.
3.15.12 Adjusting Lift Speed
Caution: The lift speed, by law, must not exceed 11 feet per minute (2.2 inches per second.)
3.15.12.1 Pressure Regulator Adjustment
Adjust the pressure regulator to 90 psig.
3.15.12.2 Up Speed Adjustment
Adjust the Lift Up Speed control to 11 feet per minute or less. This flow control device
regulates the flow of air out of the upper portion of the lift cylinder.
3.15.12.3 Down Speed Control
Adjust the Lift Down Speed control to 11 feet per minute or less. This flow control
device regulates the flow of air out of the lower portion of the lift cylinder.
