B Series Degreaser Operation
Rev G Page 83

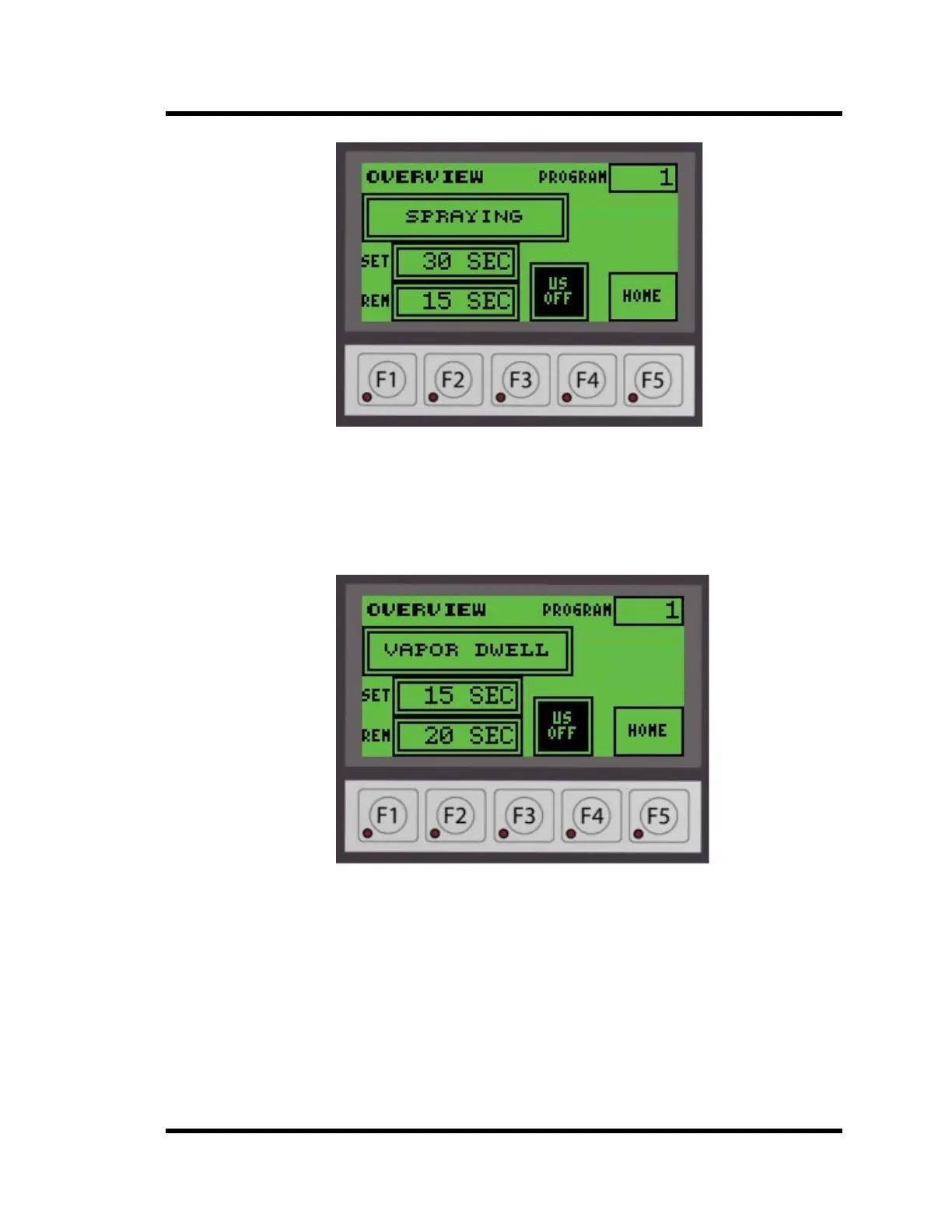

Figure 4-31 Pre-Spray Screen
The spray pump will be on and the spray nozzles will spray.
4.5.5.4 Boil Sump Vapor Rinse Dwell
The display will show VAPOR DWELL as shown in Figure 4-32 below.
Figure 4-32 Boil Sump Vapor Rinse Screen
Note: Steps 4.5.5.5, 4.5.5.6, 4.5.5.7 will not be executed if BOIL SUMP DWELL is set to 0.
4.5.5.5 Lift Descends to Boil Sump Immersion Level
The display will show MOVING DOWN as shown in Figure 4-29.
4.5.5.6 Boil Sump Immersion Dwell
The display will show BS DWELL as shown in Figure 4-33 below.
