B Series Degreaser Operation
Rev G Page 84

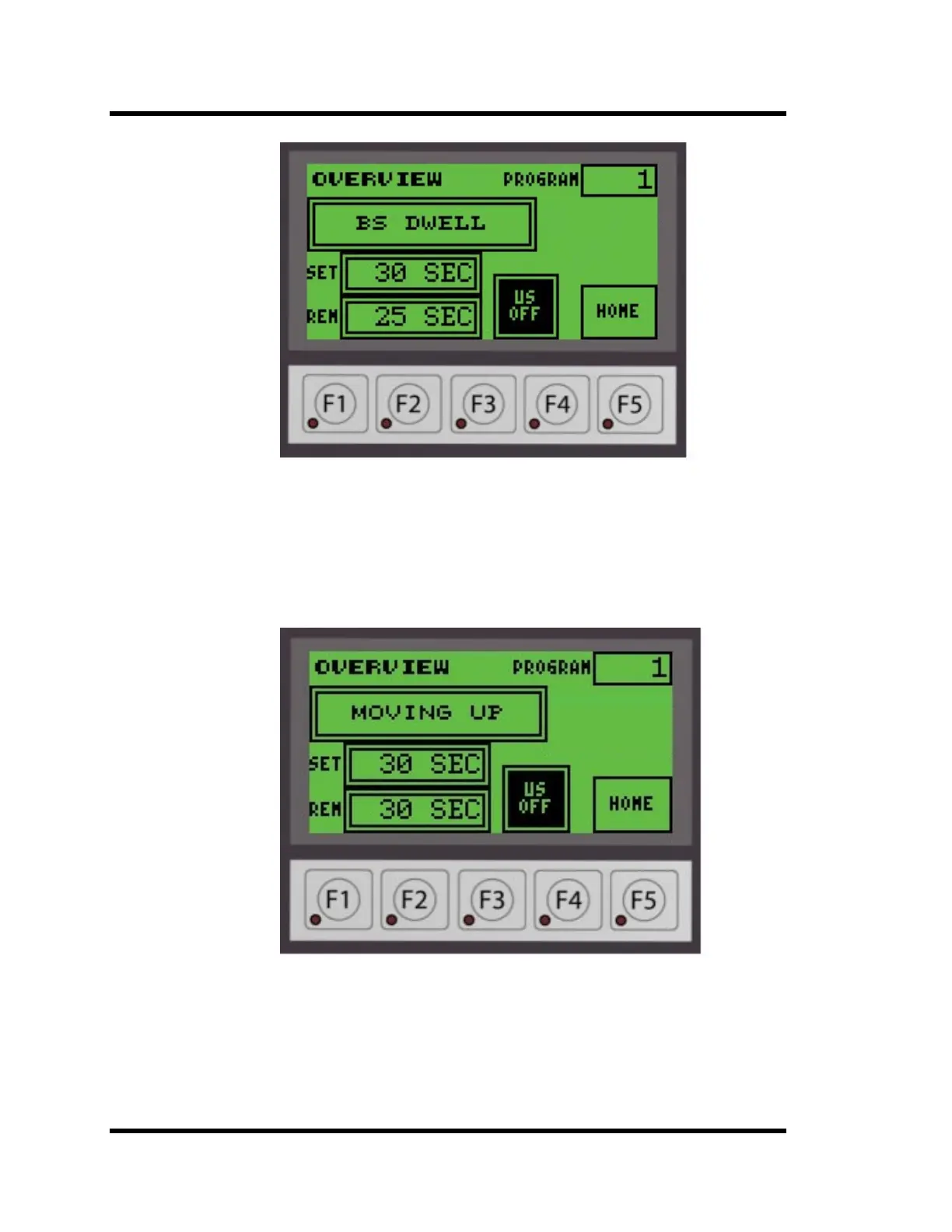

Figure 4-33 Boil Sump Immersion Screen
4.5.5.7 Lift Rises to Boil Sump Vapor Level Switch
The display will show MOVING UP as shown in Figure 4-34 below.
Figure 4-34 Moving Up Screen
4.5.5.8 Lift Moves Right to Ultrasonic Sump Switch
