B Series Degreaser Operation
Rev G Page 86
The ultrasonics will operate if US is set to ON as shown in Figure 4-37.

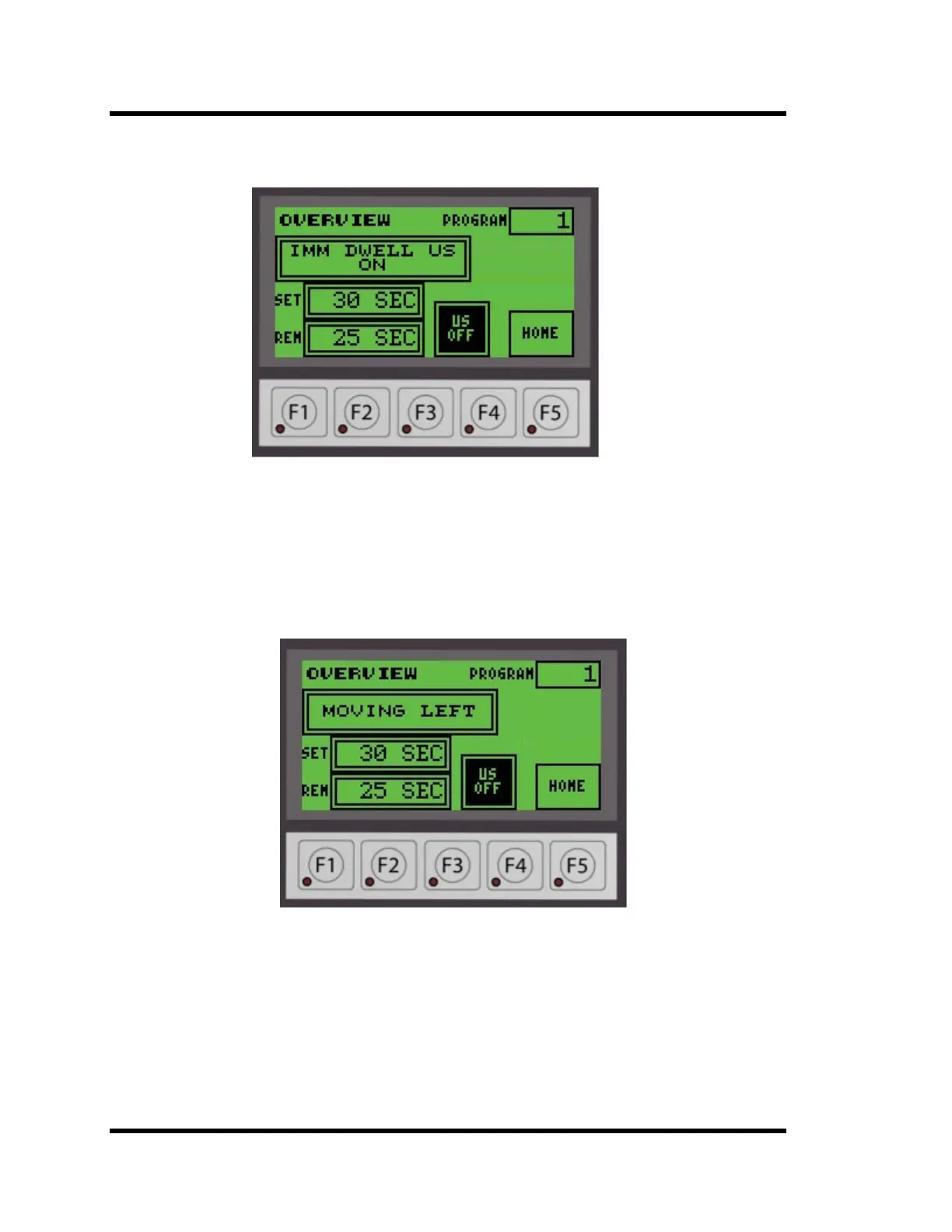

Figure 4-37 Immersion Dwell w/ US Screen
4.5.5.11 Lift Rises to Vapor Level Switch
The display will show MOVING UP as shown in Figure 4-34.
4.5.5.12 Lift Moves Left to Boil Sump Switch
The display will show MOVING LEFT as shown in Figure 4-38 below.
Figure 4-38 Moving Left Screen
Note: Step 4.5.5.13 will be skipped if US SPR T is set to 0. The program jumps to Step l.
4.5.5.13 Spray
The display will show SPRAYING as shown in Figure 4-39 below.
