B Series Degreaser Operation
Rev G Page 87

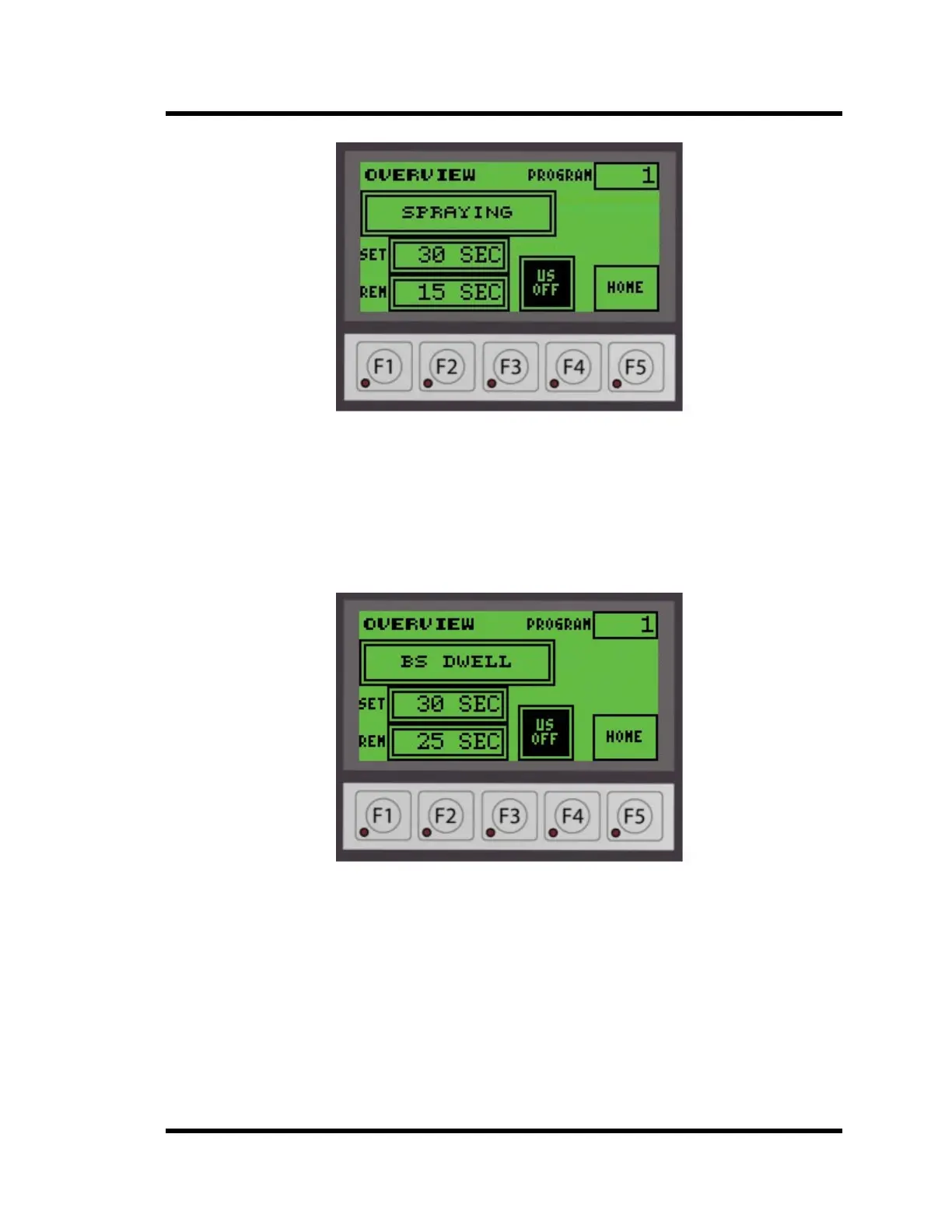

Figure 4-39 Spraying Screen
The spray pump will be on and the spray nozzles will spray.
4.5.5.14 Vapor Rinse
The display will show BS DWELL as shown in Figure 4-40 below.
Figure 4-40 Boil Sump Dwell Screen
4.5.5.15 Cover Opens
If the cleaner is equipped with a power cover, the cover will open and the display will
show COVER OPENING as shown in Figure 4-28.
4.5.5.16 Lift Rises to Freeboard Hold Switch
The display will show MOVING DOWN as shown in Figure 4-29.
4.5.5.17 Freeboard Hold
The display will show FREEBOARD DWELL as shown in Figure 4-41 below.
