B Series Degreaser Operation
Rev G Page 88

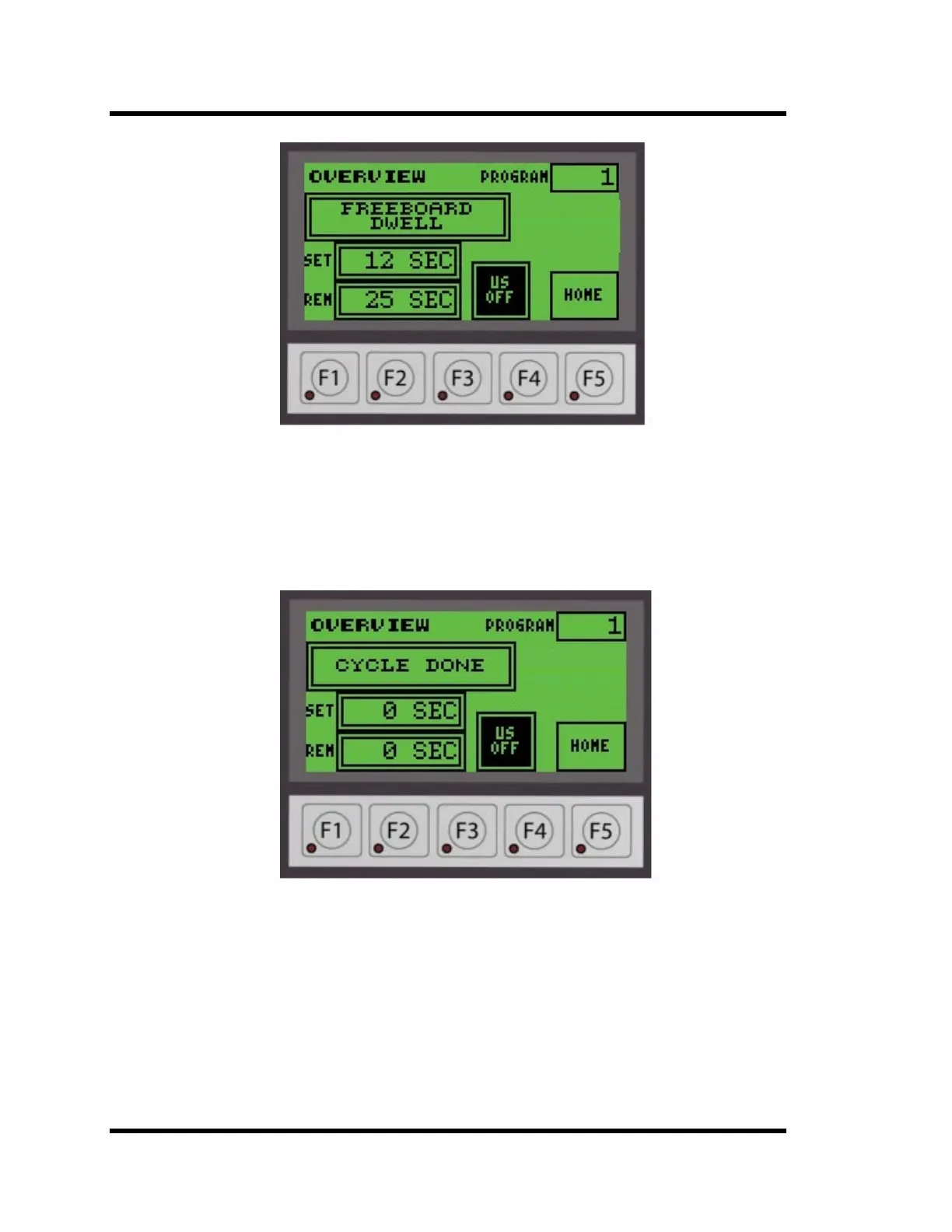

Figure 4-41 Freeboard Dwell Screen
4.5.5.18 Lift Rises to Load/Unload Switch
The display will show MOVING UP as shown in Figure 4-34.
4.5.5.19 Cycle Complete
The display will show Cycle Complete as shown in Figure 4-42 below. The power cover
will close.Figure 4-42 Cycle Done Screen
4.5.6 Aborting Cycle
The cycle may be aborted by pressing CYCLE STOP, by opening the external interlock
or by moving the lift in the Manual Mode.
4.5.6.1 Cycle Stop or External Interlock Activated
The display will show CYCLE STOP PRESS START as shown in Figure 4-43 below.
The power cover will close.
