Braun perfusor compact User Manual

System Overview
1
1- 2 Perfusor® compact, 2.1 gb
Function
The electronics of the Perfusor compact consists of the following
components:
1. A-Module with MFC board as the central power supply and
interface
2. E-Module as operating and control unit
3. Drive unit, consisting of
- drive board with the complete sensor technology, light
barriers for syringe pre- and end-alarm, syringe size
recognition and motor operation control
- push-button sensor board for the inserted syringe
- positive locking sensor board for the frictional
connection between nut and spindle of the drive.

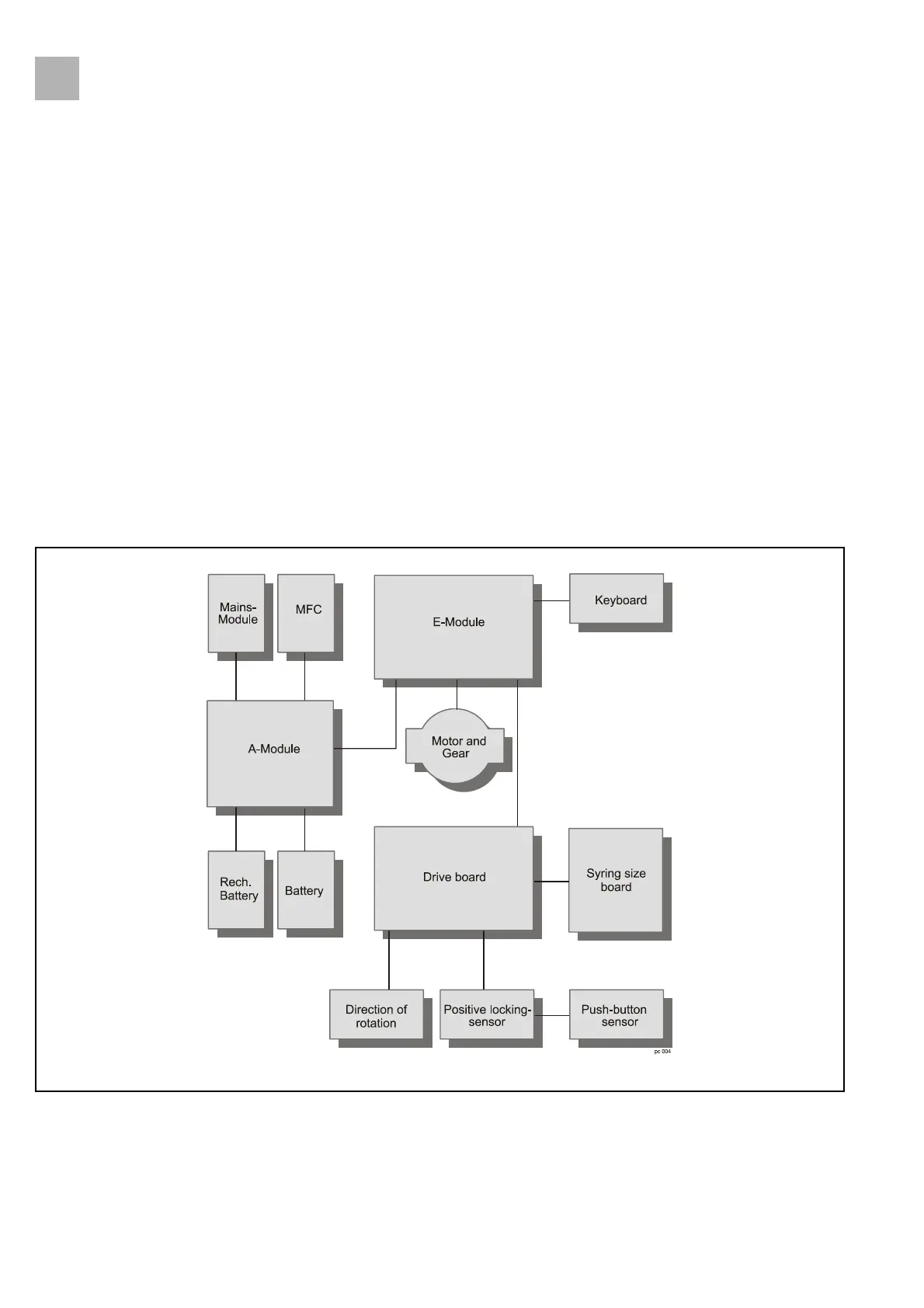

Fig.: 1 - 2 Block diagram
2.1

Braun perfusor compact Specifications

General

Model	Perfusor compact
Occlusion Pressure	Up to 1200 mmHg
Alarms	Occlusion
Syringe Compatibility	Various sizes from 5 ml to 50 ml
Manufacturer	B. Braun
