Unit Elements
4
4- 6 Perfusor® compact, 2.1 gb
4.3 Syringe Holder
Designation Ord. No.
Syringe holder, complete . . . . . . . . . . . . . . . . . . . . . . . 3450 6608
with screw and cap
Exchange

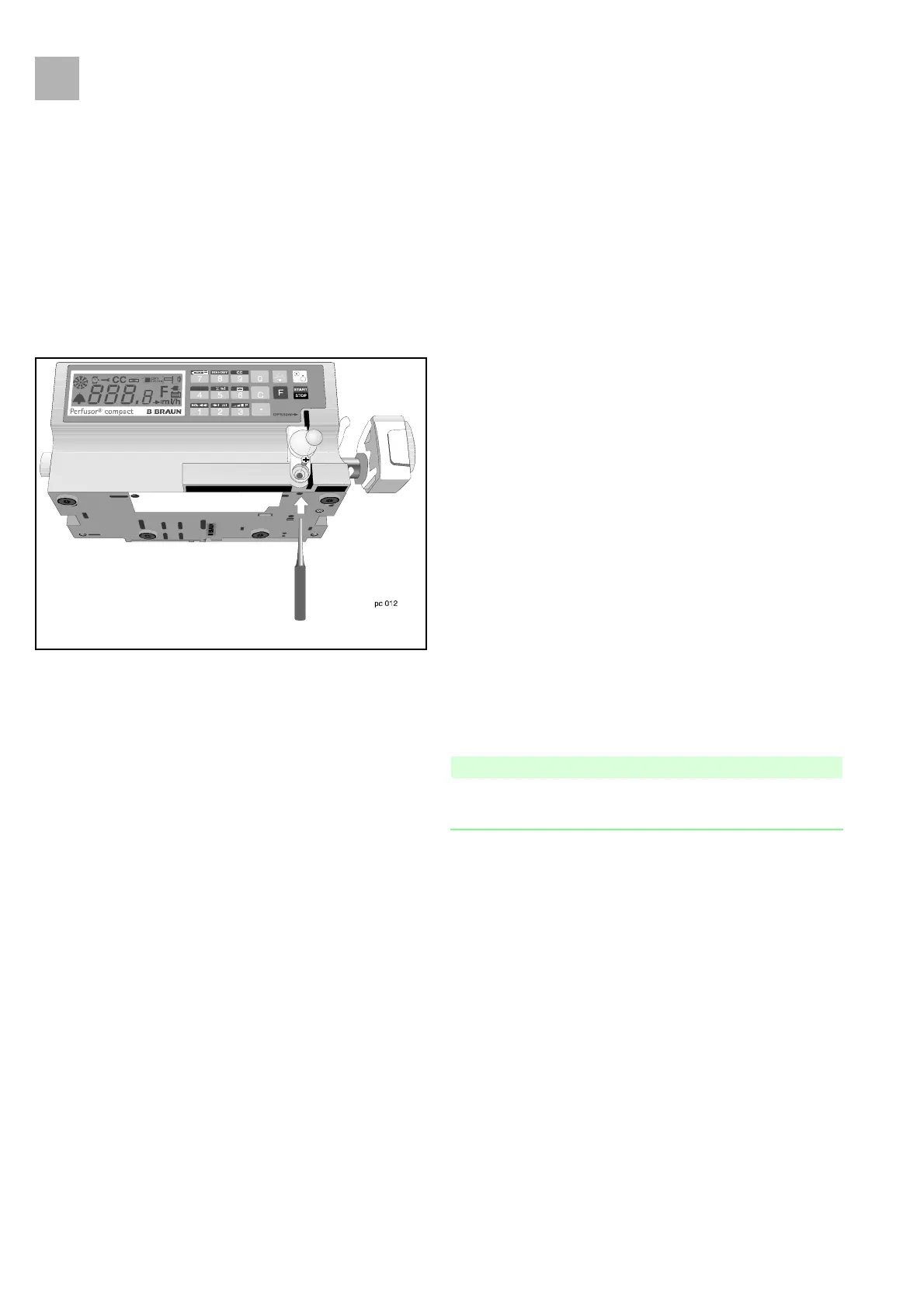

1. Pierce through the cap and remove.
2. Fasten syringe holder with pin punch.
3. Remove screw.
4. Pull off holder.
5. Push spacer washer 0.8x4x3.2 on the shaft if the syringe is
not recognized.
6. Insert new syringe holder.
7. Fit new screw (not the old one) and safety lock with Loctite
274.
8. Replace new cap.
4.4 Unit Feet
Designation Ord. No.
Unit feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3450 6640
Note
The feet can be turned and used once again. Pull feet out and turn
around or exchange.
Fig.: 4 - 5
