Unit Elements
4
Perfusor® compact, 2.1 gb 4- 7
4.5 Battery Compartment Cover
Designation Ord. No.
Battery compartment cover . . . . . . . . . . . . . . . . . . . . . 3450 6632
Exchange
1. Screw out screwed split rivet.
2. Press the lock and push battery compartment cover
downward.
3. Put on new battery compartment cover and press in screwed
split rivet.
Note
Make sure that the battery compartment cover does not get
jammed. Check for tight fit. The battery compartment cover is also
the holder plate for the pole fixation.
4.6 Snap-in Clip
Designation Ord. No.
Snap-in clip and snap-in lever . . . . . . . . . . . . . . . . . . . 3450 6616
Exchange
1. Loosen 5 screws from the bottom and carefully open housing
(pay attention to the cable lengths).
2. Exchange snap-in clip and snap-in lever.
3. Close the unit.
Note
Do not squeeze the cable (see "Close Unit" p. 4 - 4).

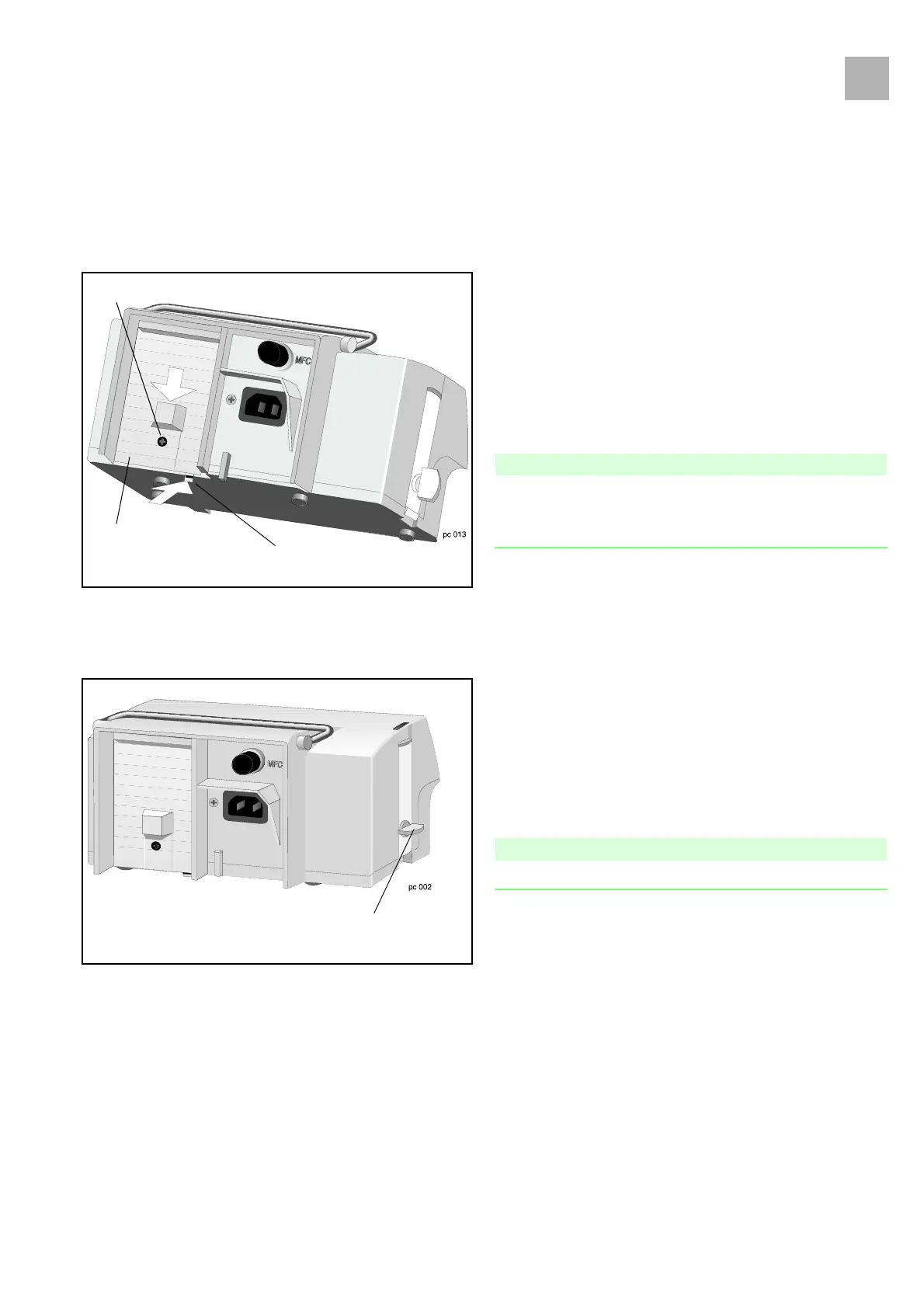

Fig.: 4 - 6
Lock
Battery compartment cover
Screwed split rivet
Fig.: 4 - 7
Snap-in clip
