39

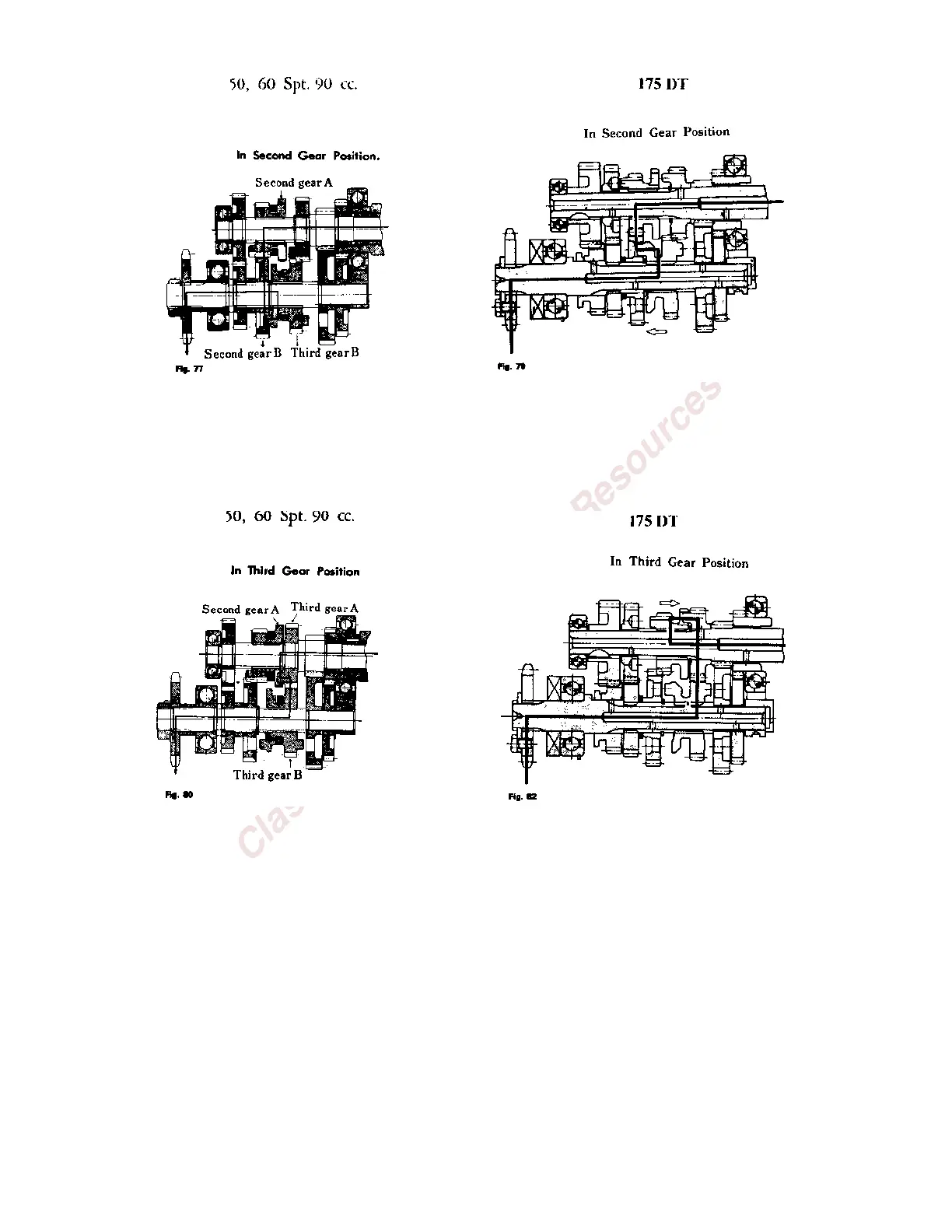

The second Gear A remaining in position, the Third Gear B slides to the left and the claws on this gear
engage with the Second Gear B.
The engine power is transmitted in the order of driven gear-clutch-countershaft-Second Gear A-Second
Gear B-Third Gear B-driveshaft and drive sprocket.
Third Gear:
With the Third Gear B on the drive shaft remaining in position, the Second Gear A slides to the right and
engages with the claws on the Third Gear A.
The engine power is transmitted in the order of driven gear – clutch – countershaft – Second Gear A –
Third Gear A – Third Gear B – driveshaft and drive sprocket.
