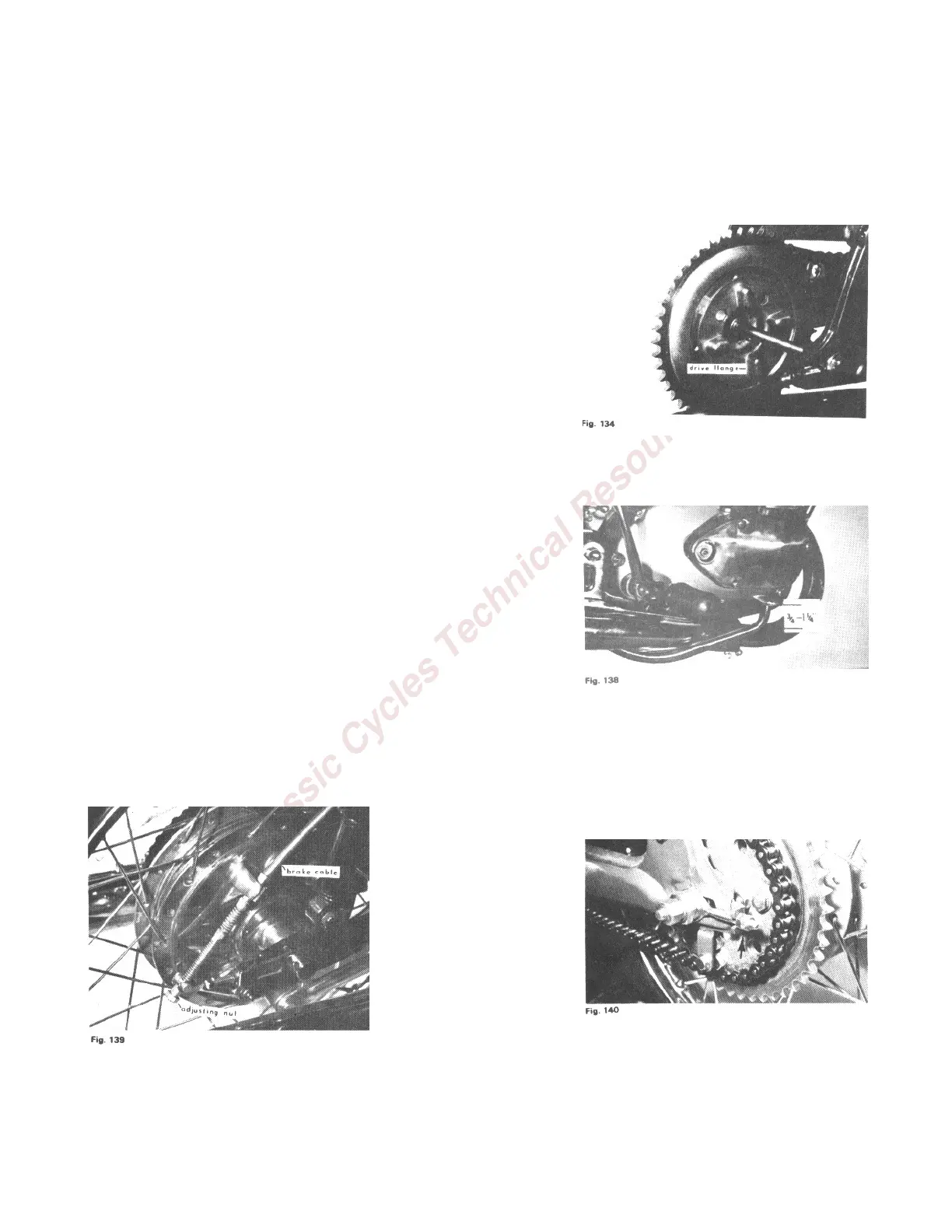

4. Remove rear shaft nut on left side (the big nut need not be touched.)
5. Pull out rear shaft together with chain adjuster.
6. Removing rear hub collar, wheel will come off the drive flange on
the right side.
• Take out the wheel by leaning the machine to the left.
Adjusting Rear Brake:
(1 ) Rear brake should be adjusted so that brake pedal can be
depressed ¾ inch – 1¼ inches before brake acts.
(2) To adjust, turn brake adjusting nut as required for proper free
play. Screw in for less play and out for more.
• Spin rear wheel with transmission in neutral to check for brake
drag.
(1 ) Chain adjustment is correct when chain slack is approximately d inch up or down.
(2 ) To adjust, loosen rear axle nut and adjust with the chain and adjusters on the ends of the axle, turning
them back or forward an equal amount to keep correct alignment of chain wheels.
