4.37 SCISSOR_XY
Specify the top left corner of the scissor clip rectangle
Encoding
31 24
23 19
17 9
8 0
0x1B
Reserved
x
y
Parameters
x
The x coordinate of the scissor clip rectangle, in pixels. The initial value is 0
y
The y coordinate of the scissor clip rectangle, in pixels. The initial value is 0
Description
Sets the top-left position of the scissor clip rectangle, which limits the drawing area.
Examples

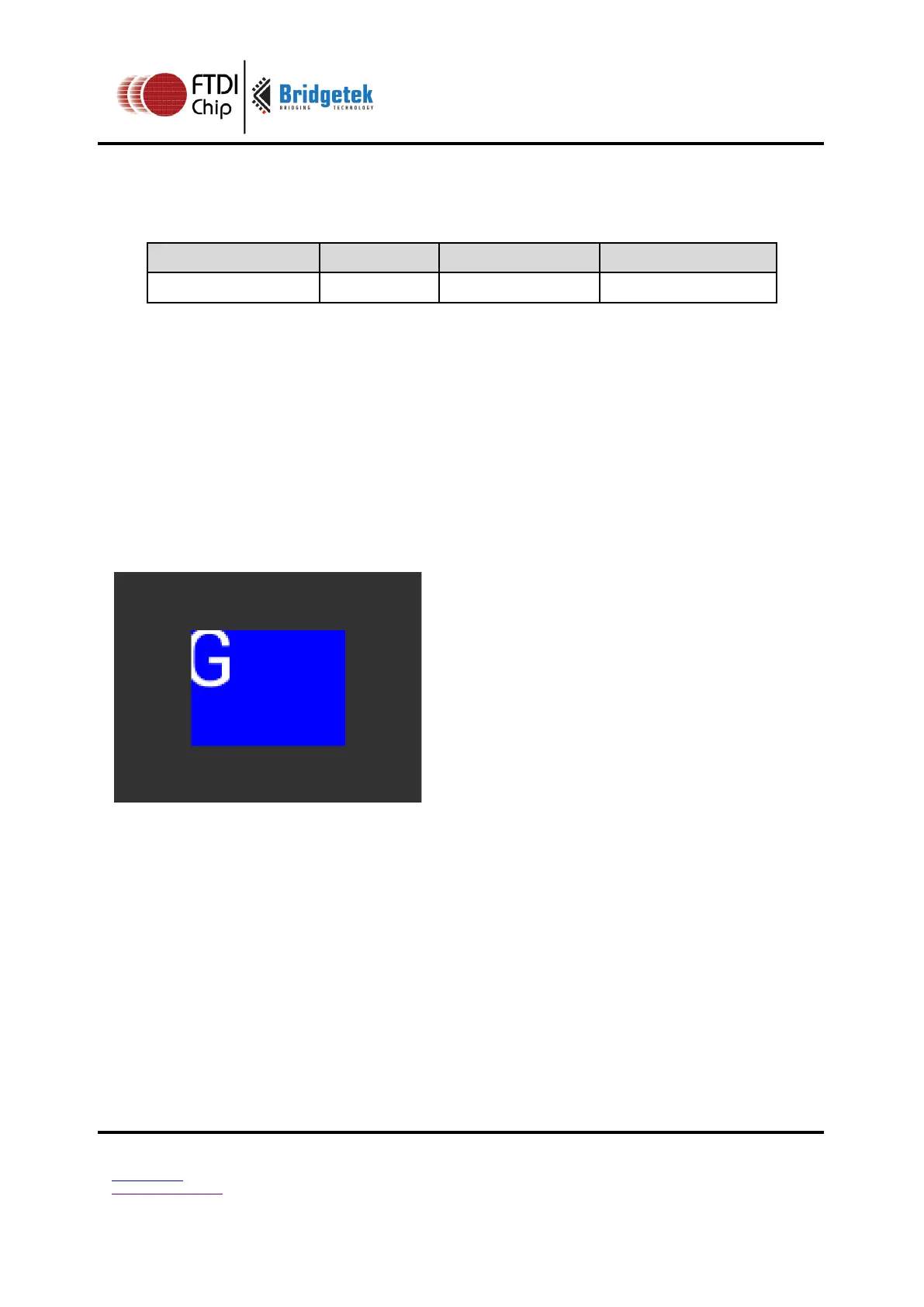

Setting a 40 x 30 scissor rectangle clips the clear and bitmap drawing:
dl( SCISSOR_XY(40, 30) );
dl( SCISSOR_SIZE(80, 60) );
dl( CLEAR_COLOR_RGB(0, 0, 255) );
dl( CLEAR(1, 1, 1) );
dl( BEGIN(BITMAPS) );
dl( VERTEX2II(35, 20, 31, 0x47) );
Graphics context
The values of x and y are part of the graphics context 4.1
