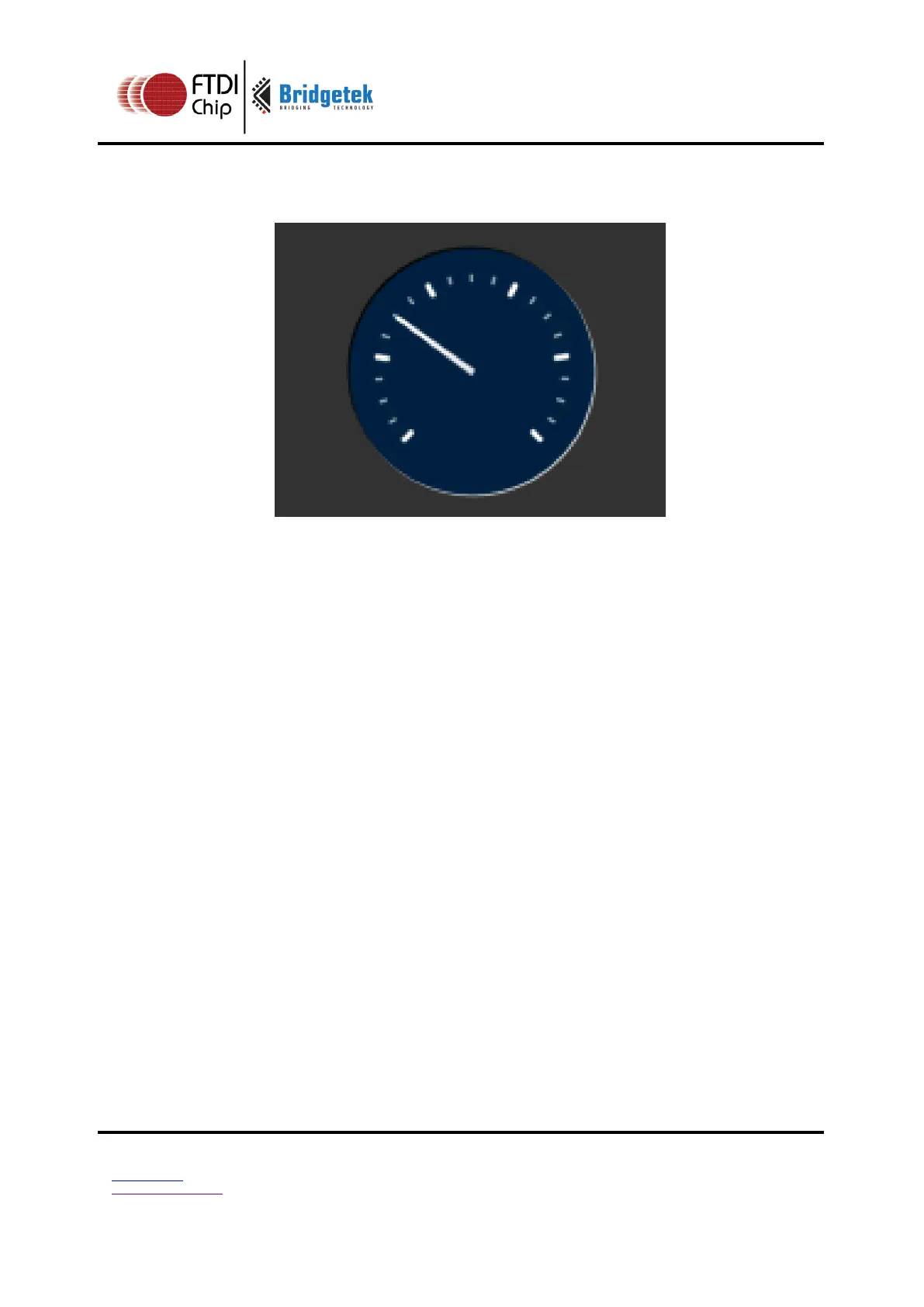

5.30 CMD_GAUGE - draw a gauge

C prototype

void cmd_gauge( int16_t x,

int16_t y,

int16_t r,

uint16_t options,

uint16_t major,

uint16_t minor,

uint16_t val,

uint16_t range );

Parameters

X-coordinate of gauge center, in pixels

Y-coordinate of gauge center, in pixels

Radius of the gauge, in pixels

options

By default the gauge dial is drawn with a 3D effect and the value of options is

zero. OPT_FLAT removes the 3D effect. With option OPT_NOBACK, the

Bridgetek FT801 - CMD_GAUGE - draw a gauge
