seconds
ms
milliseconds
Description
The details of physical dimension are
 The 12 tick marks are placed on a circle of radius r*(200/256).
 Each tick is a point of radius r*(10/256)
 The seconds hand has length r*(200/256) and width r*(3/256)
 The minutes hand has length r*(150/256) and width r*(9/256)
 The hours hand has length r*(100/256) and width r*(12/256)
Refer to Co-processor engine widgets physical dimensions for more information.
Command layout
+0
CMD_CLOCK(0xffffff14)
+4
X
+6
Y
+8
R
+10
Options
+12
H
+14
M
+16
S
+18
Ms
Examples

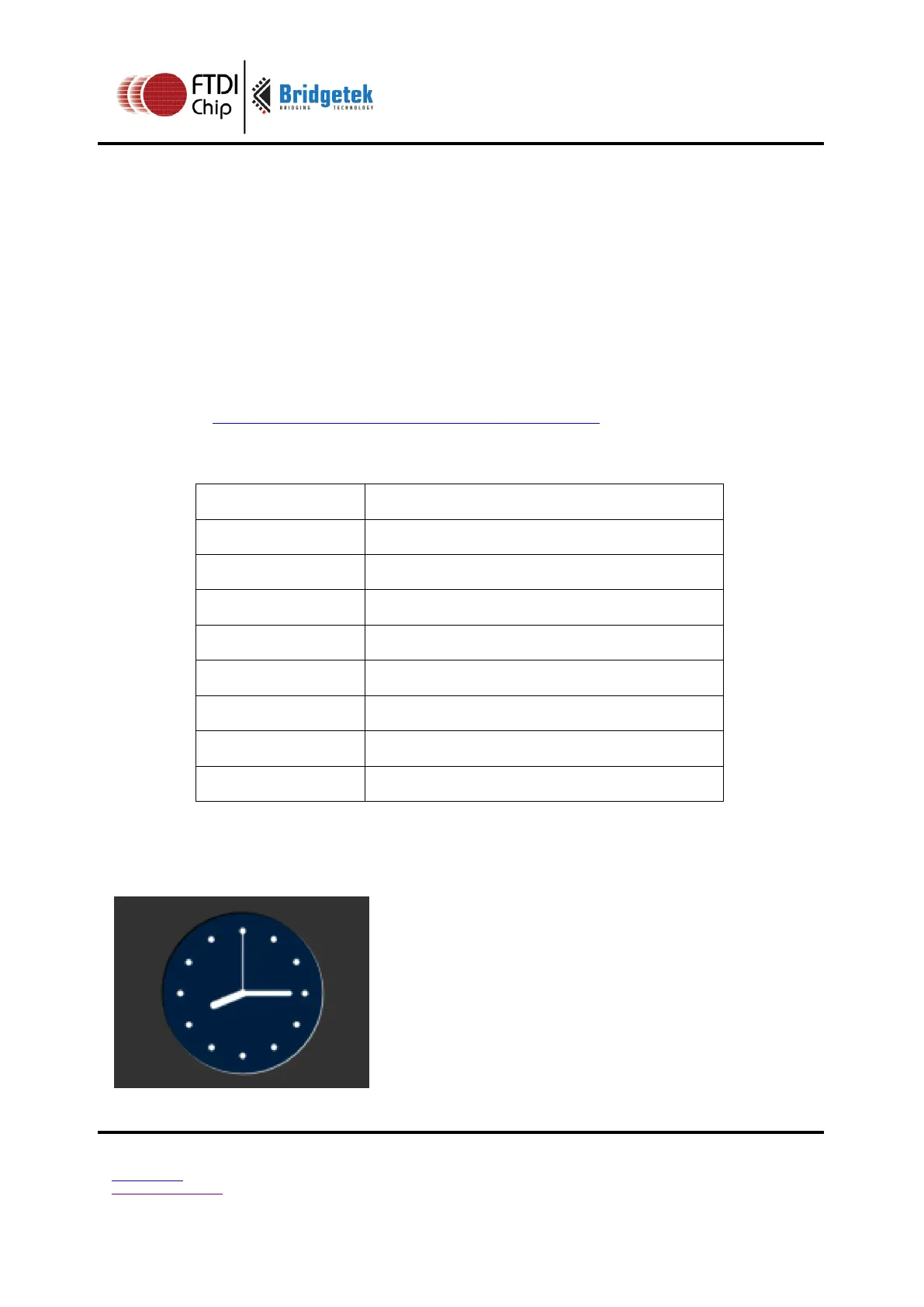

A clock with radius 50 pixels, showing a time of 8.15:
cmd_clock(80, 60, 50, 0, 8, 15, 0, 0);
