3. Operation VX TopCooler
Normal Cooling Cycle Operation Part Number: 606325 Rev. A

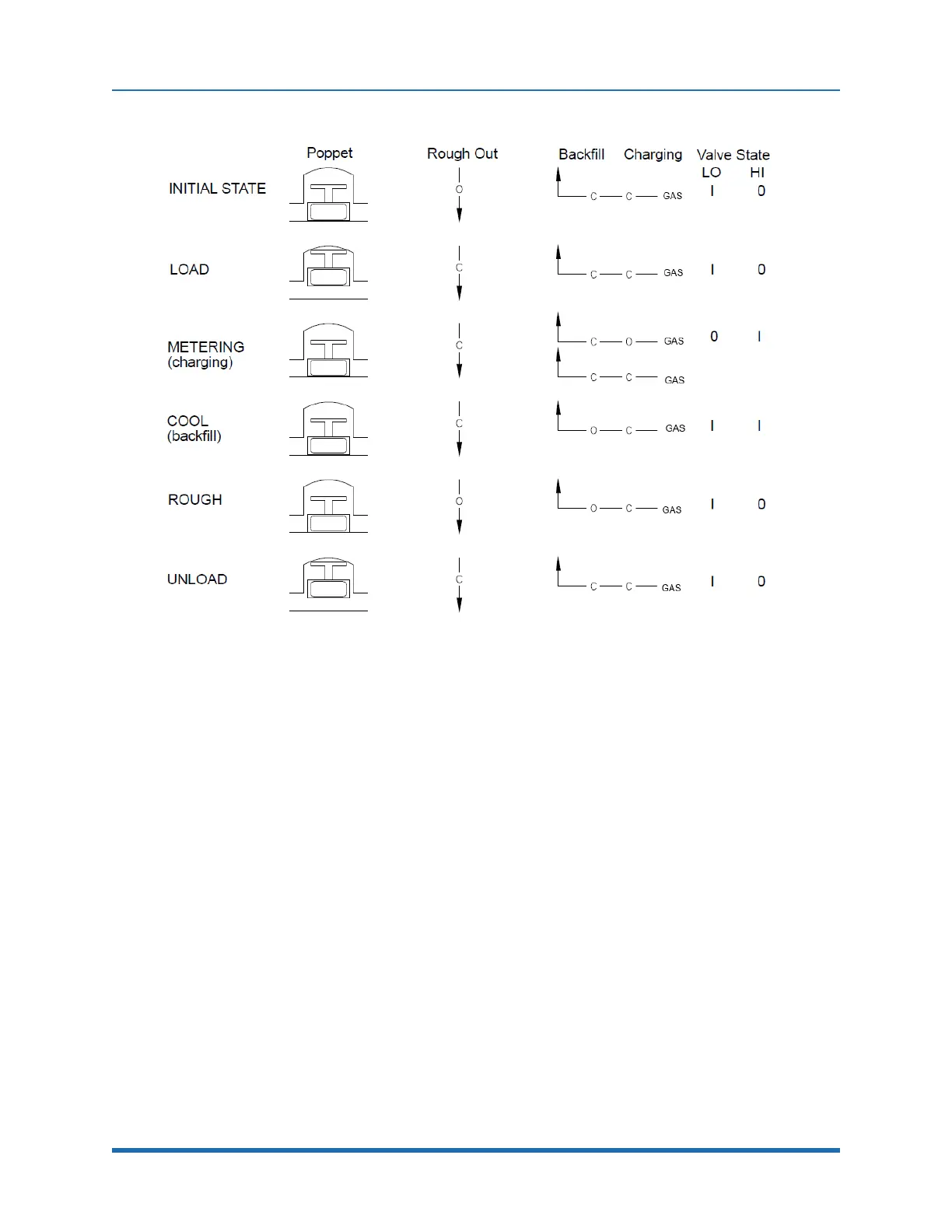

Figure 3-2: TopCooler Valve Operation
Normal Cooling Cycle Operation
Initial State
TheChargingValve,BackfillValve,andPoppetareclosed.
TheRoughOutValveisopen.
Load Wafer Sequence
TheRoughOutValveisclosed.
ThePoppetisopened.
Awaferisplacedonthepoppetwafershelf.
ThePoppetisclosed,loweringthewaferontothechillplate.
