Telephone Services and External devices
61
7
Installing machine, external two-line
TAD and two-line telephone
7
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external two-
line TAD. You will need a fourth line cord if
you add a two-line telephone.
a Put the two-line TAD and the two-line
telephone next to your machine.
b Plug one end of the telephone line cord
for your machine into the L2 jack of the
triplex adapter. Plug the other end into
the LINE jack on the back of the
machine.
c Plug one end of the first telephone line
cord for your TAD into the L1 jack of the
triplex adapter. Plug the other end into
the L1 or L1/L2 jack of the two-line TAD.
d Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.

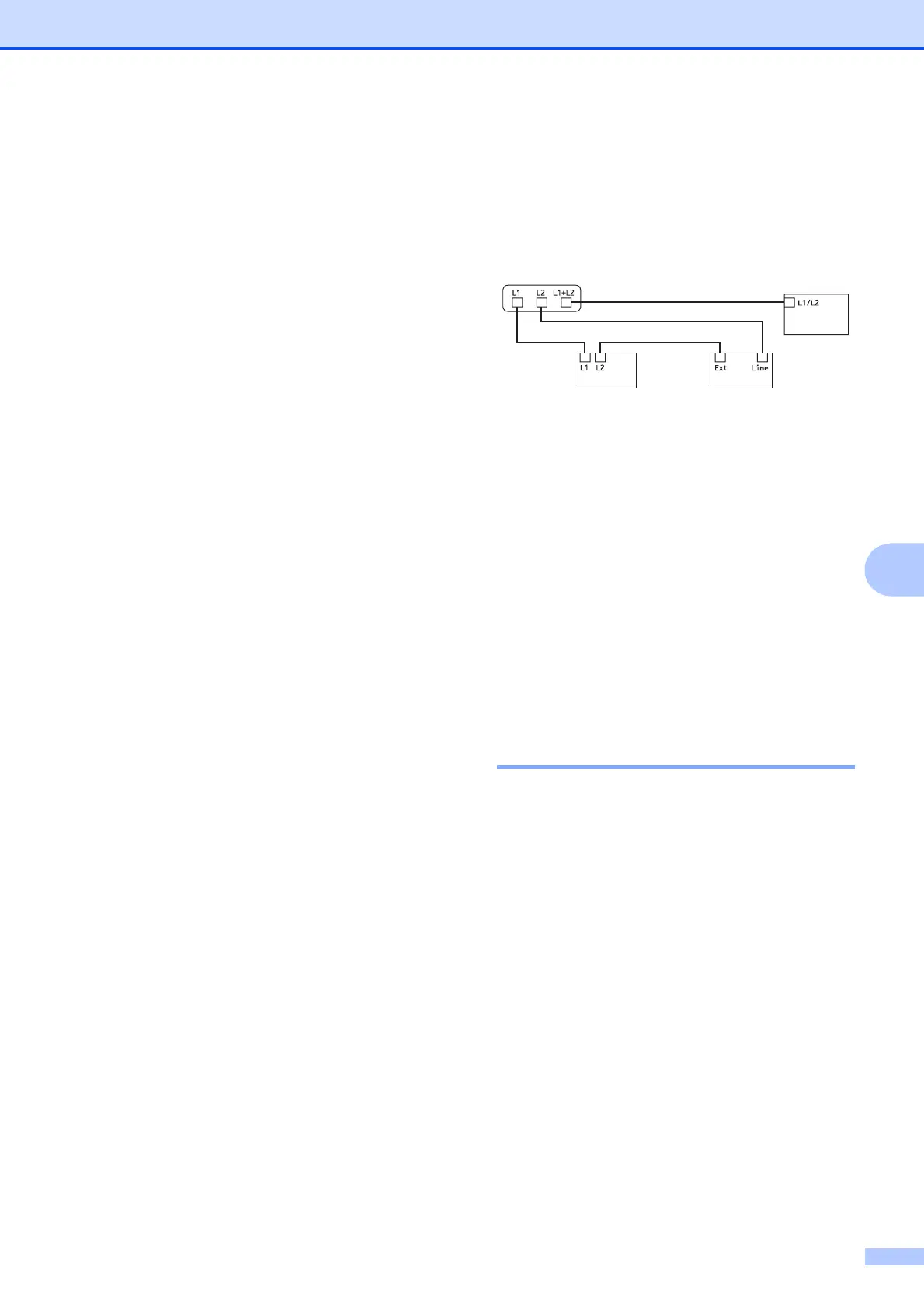

1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine's
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
Multi-line connections (PBX) 7
We suggest you ask the company who
installed your PBX to connect your machine.
If you have a multi line system we suggest
you ask the installer to connect the unit to the
last line on the system. This prevents the
machine being activated each time the
system receives telephone calls. If all
incoming calls will be answered by a
switchboard operator we recommend that
you set the Receive Mode to Manual.
We cannot guarantee that your machine will
operate properly under all circumstances
when connected to a PBX. Any difficulties
with sending or receiving faxes should be
reported first to the company who handles
your PBX.
1
2
3
4

Brother MFC-495CW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Digital sender	No
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Mac compatibility	Yes
Dimensions (WxDxH)	391 x 376 x 180 mm
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Package weight (imperial)	22.9 lbs
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows/Mac OS
Package dimensions (W x D x H)	18.3 x 10 x 18.1 \
Display	TFT
Display diagonal	3.3 \
Market positioning	Home & office
Supported network protocols (IPv4)	ARP, RARP, BOOTP, APIPA, NetBIOS/WINS, LPR/LPD, Raw Port/Port9100, DNS, mDNS, FTP, SNMPv1, TFTP, LLTD
Faxing	Color faxing
Fax memory	480 pages
Fax speed dialing (max numbers)	33600 b/s
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Image formats supported	BMP, PCX, PNG
Sustainability certificates	ENERGY STAR
Paper tray media types	Plain paper
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Power consumption (average operating)	- W
