Web Based Management
152
11

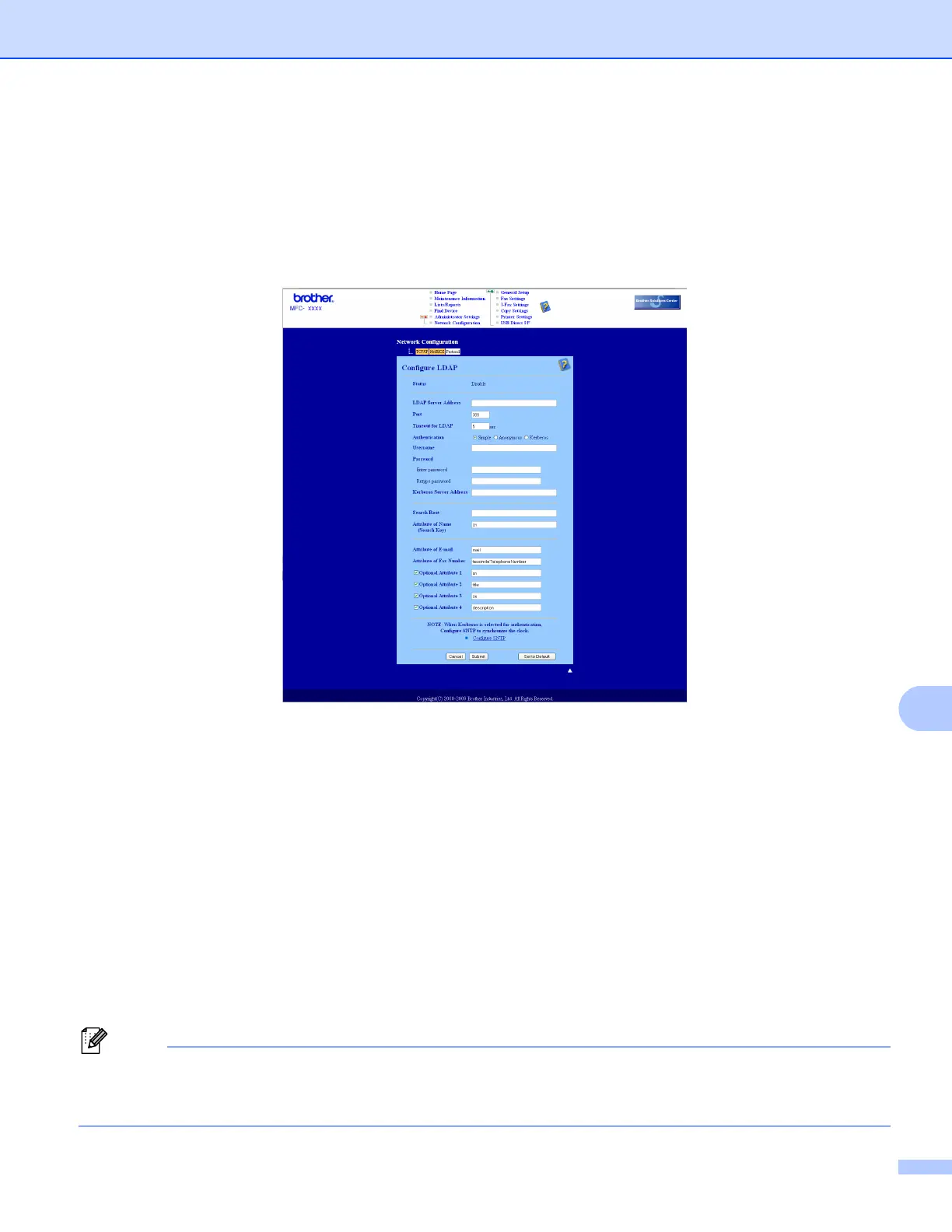

Changing the LDAP configuration using a web browser
(For MFC-8690DW, MFC-8880DN and MFC-8890DW) 11
You can configure and change the LDAP settings using a web browser. Click Network Configuration on the
MFC-XXXX web page, and then click Configure Protocol. Make sure that the check box for LDAP is on and
then click Advanced Settings.
 Status Enable/Disable
 LDAP Server Address
 Port (The default port number is 389.)
 Timeout for LDAP
 Authentication
 Username
 Password
 Kerberos Server Address
 Search Root
 AttributeofName(SearchKey)
 Attribute of E-mail
 Attribute of Fax Number
After setting, make sure that the Status is OK on the Test Result page.
Note
• If the LDAP server supports Kerberos Authentication, we recommend to choose Kerberos on
Authentication setting. It provides strong authentication between LDAP server and your machine.
• For the details of each item, see the Help Text in the Web Based Management.

Brother MFC-8690DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Copy Resolution	Up to 1200 x 600 dpi
Fax Modem Speed	33.6 Kbps
Mobile Printing	Yes
ADF Capacity	50 sheets
Maximum Paper Size	8.5" x 14" (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Scan Resolution	Up to 19200 x 19200 dpi (interpolated)
Copy Speed	Up to 32 cpm
Fax Resolution	Up to 203 x 392 dpi
Connectivity	Ethernet
Paper Capacity	250 sheets
Print Speed (Black)	Up to 32 ppm (Letter)
