Brother MFC-9130CW Service Manual

2-85
Confidential
4.2.6 Curl of paper
<User Check>
- Select "Reduce Paper Curl" in the driver.
- Check if the thickness of the paper is 60 to 105 g/m
2
.
(60 to 163 g/m
2
for manual feed slot.)
- Perform printing with the envelope lever lowered to the position "B".
(Refer to the figure below.)
- Print with the anti curl lever set on the outside. (Refer to the figure below.)

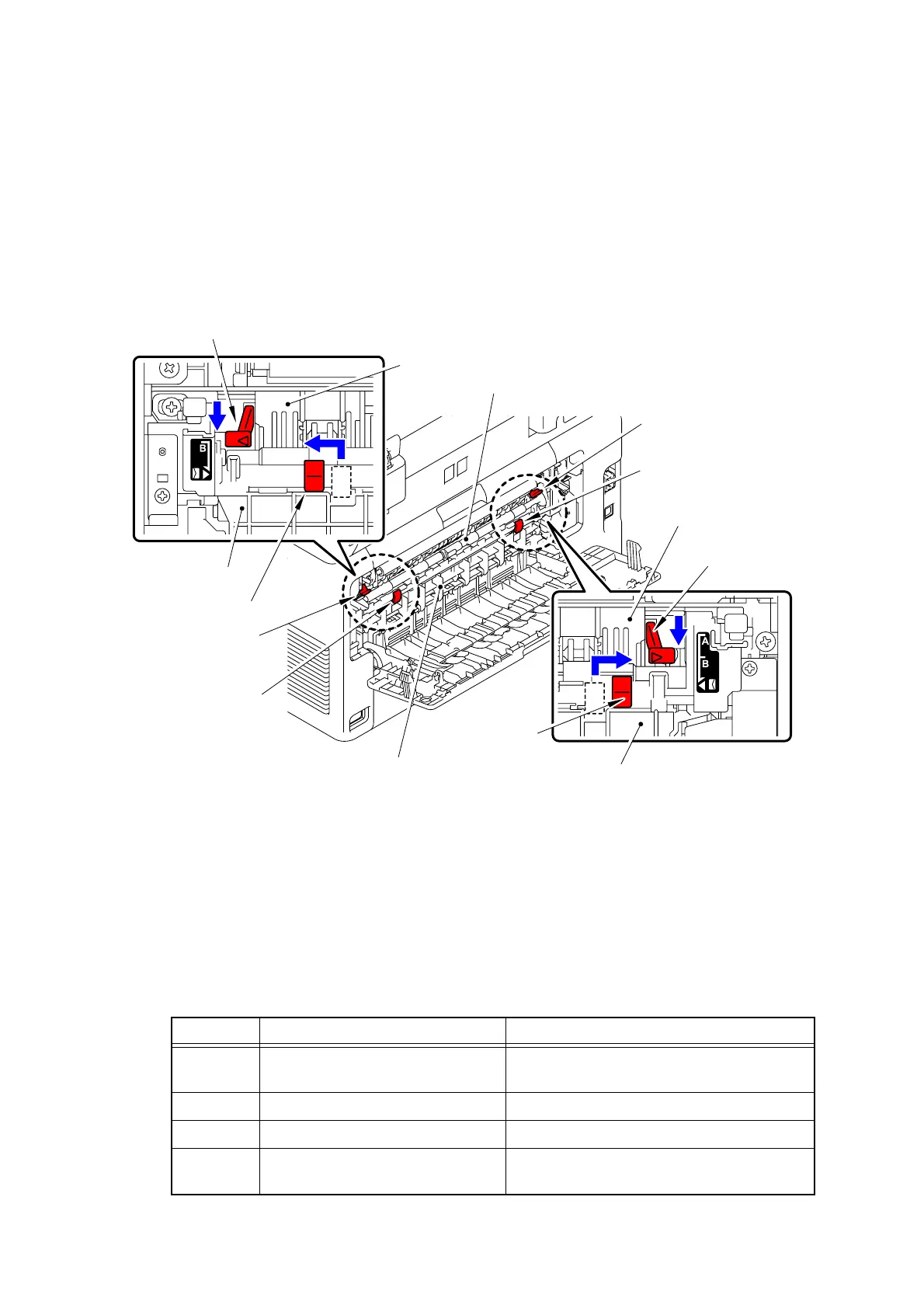

Fig. 2-11
4.2.7 Unable to perform 2-sided printing
<User Check>
- Firmly close the back cover.
- Firmly install the paper tray.
- Set driver to 2-sided printing.
- Use the paper equal to or larger than Letter size or A4 size.
(Use paper specified in each country setting.)
Step Cause Remedy
1 Eject actuator catching on some
position
Re-assemble the eject actuator.
2 Back cover failure Replace the back cover.
3 Duplex tray failure Replace the duplex tray.
4 Back cover sensor failure Replace the back cover sensor harness
ASSY.
Envelope lever
Envelope lever
Envelope lever
Envelope lever
Fuser unit
Fuser unit
Fuser unit
Anti curl lever
Anti curl lever
Anti curl lever
Anti curl lever
Fuser cover ASSY
Fuser cover ASSY
Fuser cover ASSY
