Brother MFC-9130CW Service Manual

3-143
Confidential

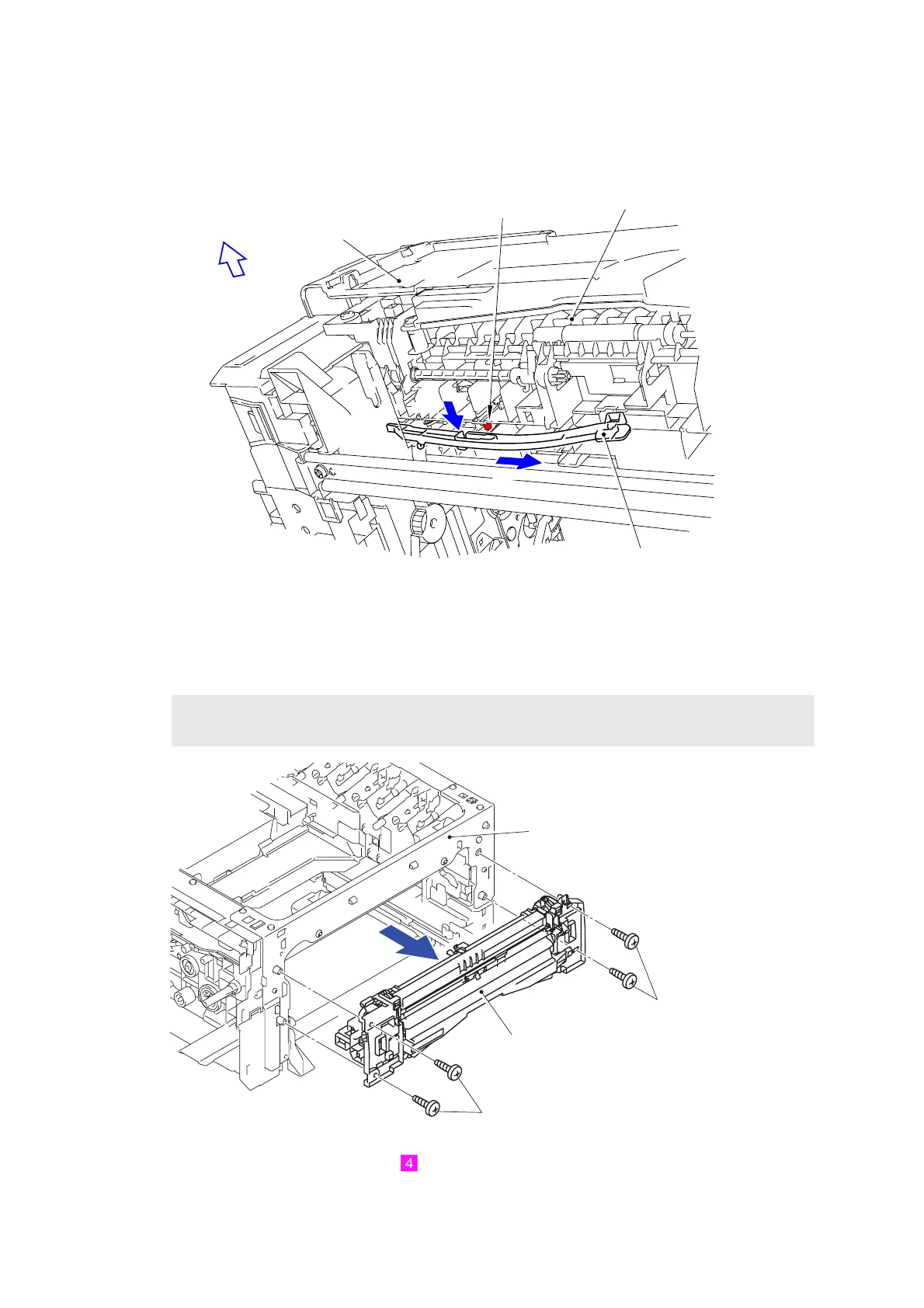

8.60 Paper Feed Unit
(1) Remove the Boss as bending the Lift arm in the direction of the arrow 1a to slide the Lift
arm to the direction of the arrow 1b. (The Lift arm does not have to be removed.)
Fig. 3-204
(2) Disconnect the wiring of the Registration front/rear/manual feed sensor harness and
Paper feed harness.
(3) Remove the four Taptite bind B M4x12 screws to remove the Paper feed unit from the
Main body.
Fig. 3-205
Harness routing: Refer to " Paper Feed Unit"
Assembling Note:
Tighten the four Taptite bind B M4x12 screws in the order of 1 to 4.
Paper feed unit
Boss
1b
Lift arm
Main body
1a
Front
Taptite bind B M4x12
Taptite bind B M4x12
Main body
Paper feed unit
<Front side>
1
2
3
4

Brother MFC-9130CW Specifications

Printing

print speed black	up to 19 ppm
print speed color	up to 19 ppm
print resolution	up to 600 x 2400 dpi
print technology	Digital Color LED

Copying

copy speed black	up to 19 cpm
copy speed color	up to 19 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi

Faxing

fax modem	33.6 kbps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
large paper capacity	250-sheet capacity paper tray

Display

lcd display type/size	3.7” Color TouchScreen
touchscreen display size	3.7 inches

Memory

standard memory	192MB
maximum memory	192MB
