Brother MFC-9130CW Service Manual

3-52
Confidential

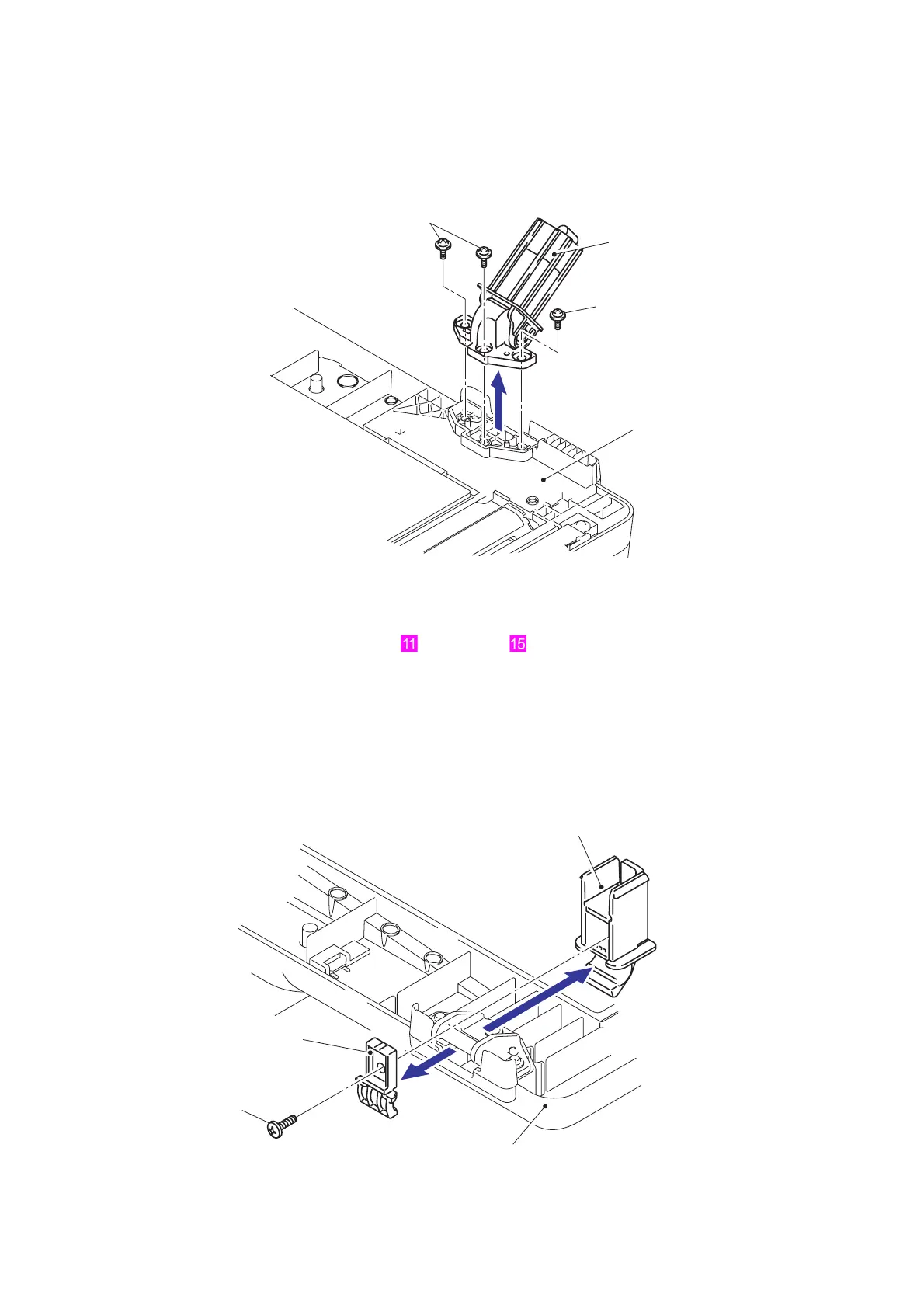

(11) Turn the ADF unit upside down.
(12) Remove the three Taptite cup S 3x12 screws to remove the Hinge ASSY L from the ADF
unit.
Fig. 3-44
Harness routing: Refer to " ADF Unit", " Document Scanner Unit"
8.15 Hinge R/Hinge R Support
(1) Remove the Taitite cup B 3x10 screw to remove the Hinge R support and Hinge R from
the ADF unit.
Fig. 3-45
Hinge ASSY L
ADF unit
Taptite cup S 3x12
Taptite cup S 3x12
Hinge R
Hinge R support
ADF unit
Taitite cup B 3x10

Brother MFC-9130CW Specifications

Printing

print speed black	up to 19 ppm
print speed color	up to 19 ppm
print resolution	up to 600 x 2400 dpi
print technology	Digital Color LED

Copying

copy speed black	up to 19 cpm
copy speed color	up to 19 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi

Faxing

fax modem	33.6 kbps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
large paper capacity	250-sheet capacity paper tray

Display

lcd display type/size	3.7” Color TouchScreen
touchscreen display size	3.7 inches

Memory

standard memory	192MB
maximum memory	192MB
