Brother MFC-9130CW Service Manual

3-80
Confidential
8.33 Flat Cable Cover/Holder Hook/LED ASSY

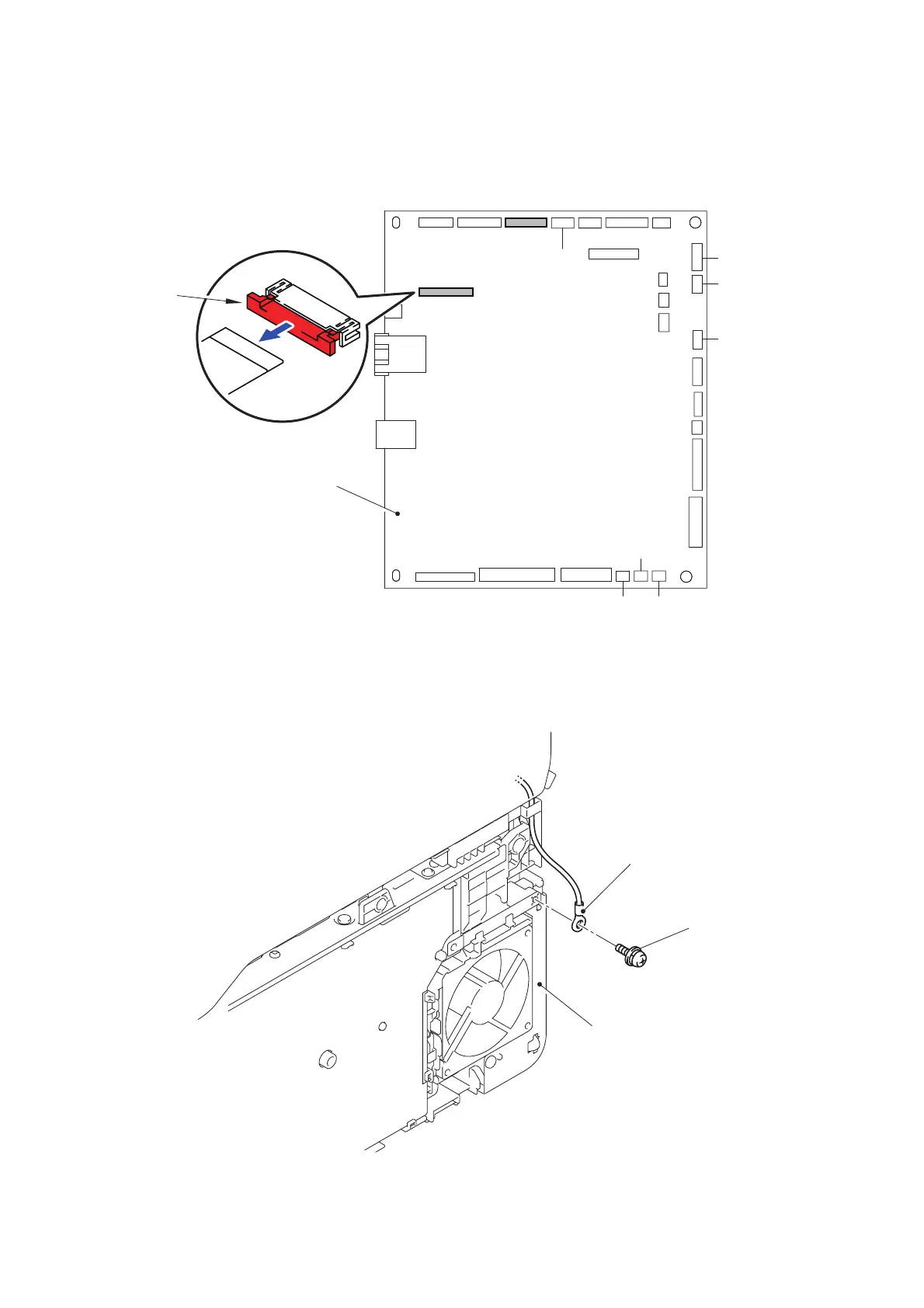

(1) Release the Lock. Disconnect the two Flat cables (CN22 and CN28) from the Main PCB
ASSY.
Fig. 3-97
(2) Remove the Taptite pan (washer) B M4x12 DA screw to remove the LED FG harness
from the Side frame R ASSY.
Fig. 3-98
CN30
CN22
CN19
CN15
CN11
CN4
CN3 CN2
CN1 CN6
CN5
CN29 CN28 CN26 CN23
CN8
CN21
CN27
CN20
CN14
CN25
CN24
CN16
CN9
CN13
CN12
CN10
CN7
CN17
Main PCB ASSY
Lock
Taptite pan (washer)
B M4x12 DA
LED FG harness
Side frame R ASSY
<Right side>

Brother MFC-9130CW Specifications

Printing

print speed black	up to 19 ppm
print speed color	up to 19 ppm
print resolution	up to 600 x 2400 dpi
print technology	Digital Color LED

Copying

copy speed black	up to 19 cpm
copy speed color	up to 19 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi

Faxing

fax modem	33.6 kbps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
large paper capacity	250-sheet capacity paper tray

Display

lcd display type/size	3.7” Color TouchScreen
touchscreen display size	3.7 inches

Memory

standard memory	192MB
maximum memory	192MB
