Brother MFC-9130CW Service Manual

3-139
Confidential

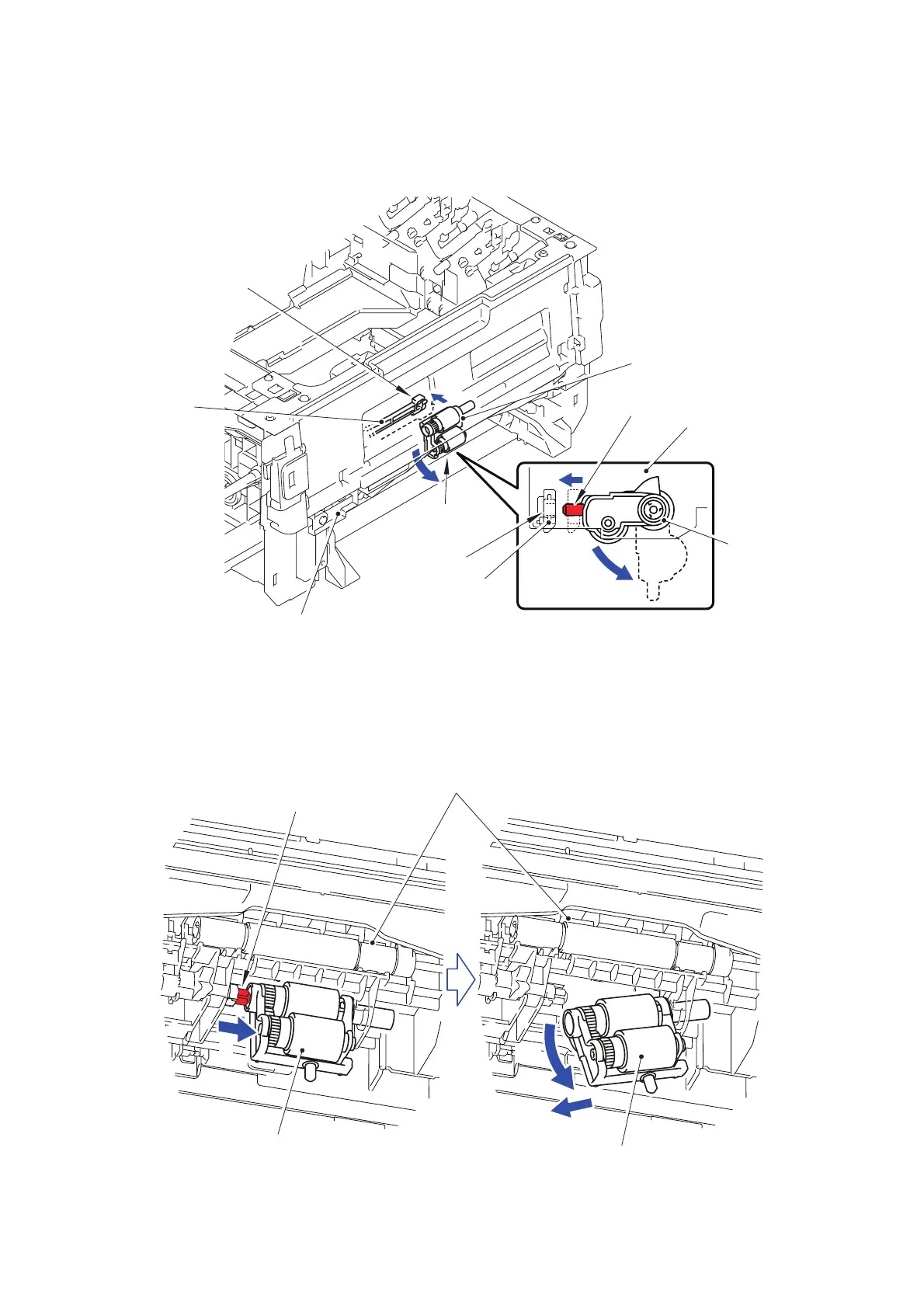

8.58 Roller Holder ASSY
(1) Push the Lift arm to the back and remove "B" of the Roller holder ASSY from "A" of the Lift
arm. Rotate the Roller holder ASSY in the direction of the arrow 1b.
Fig. 3-197
(2) Slide the Roller holder ASSY in the direction of the arrow 2 to remove it from the "C" of the
Paper feed unit.
(3) Slide the Roller holder ASSY in the direction of the arrow 3a and 3b in this order to
remove it from the Paper feed unit.
Fig. 3-198
Lift arm
Roller holder ASSY
1a
1b
1a
1b
“B”
“A”
Lift arm
“A”
Paper feed unit
Paper feed unit
“B”
Roller holder
ASSY
<Front side>
2
“C”
Paper feed unit
3b
Roller holder ASSY
Roller holder ASSY
3a
