3-140
Confidential

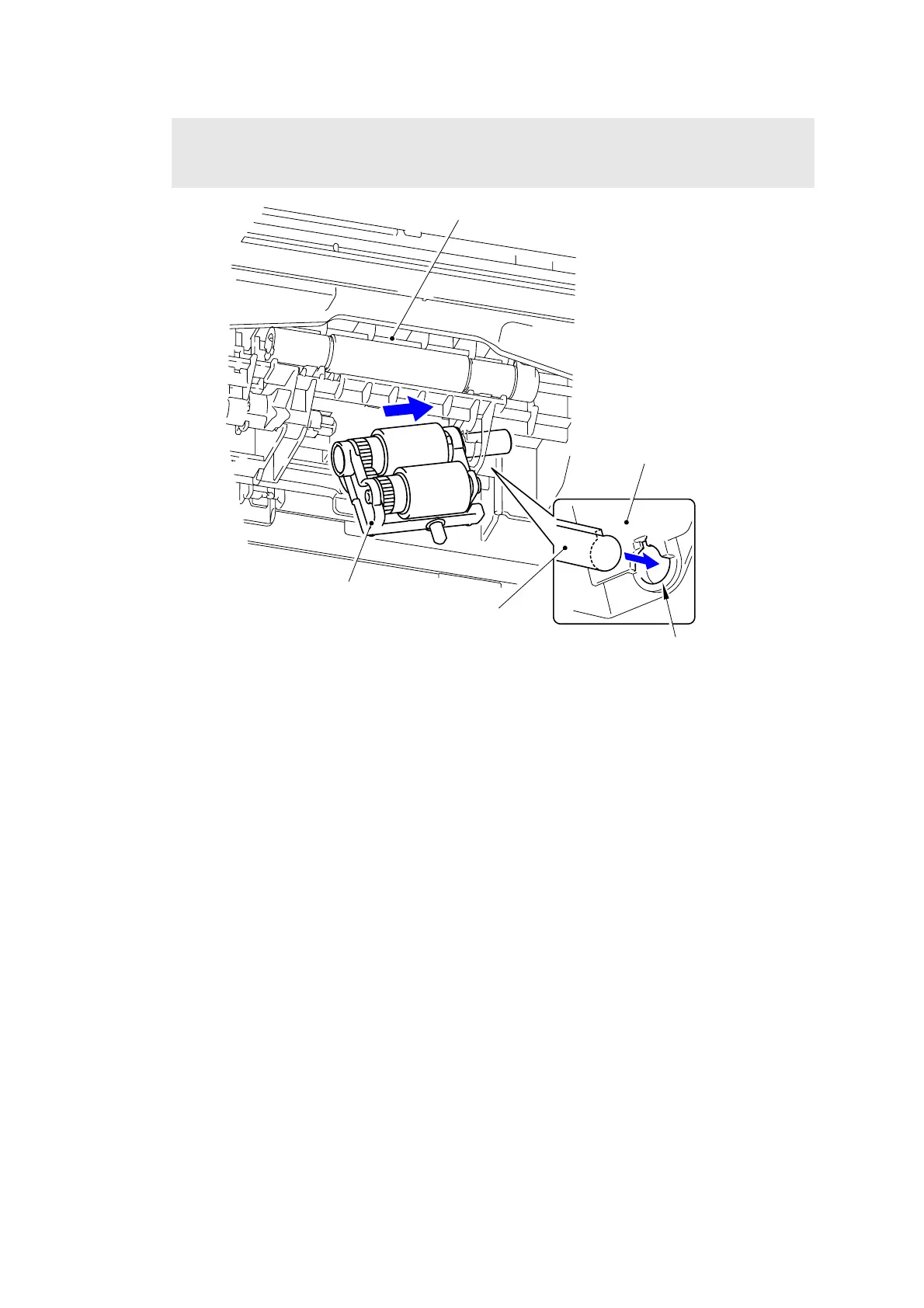

Fig. 3-199
Assembling Note:
Align the Hole of the Paper feed unit to the Shaft of the Roller holder ASSY and insert it into
the Hole.
Roller holder ASSY
Shaft
Hole
Paper feed unit
Paper feed unit
