8.34 Z Spring L

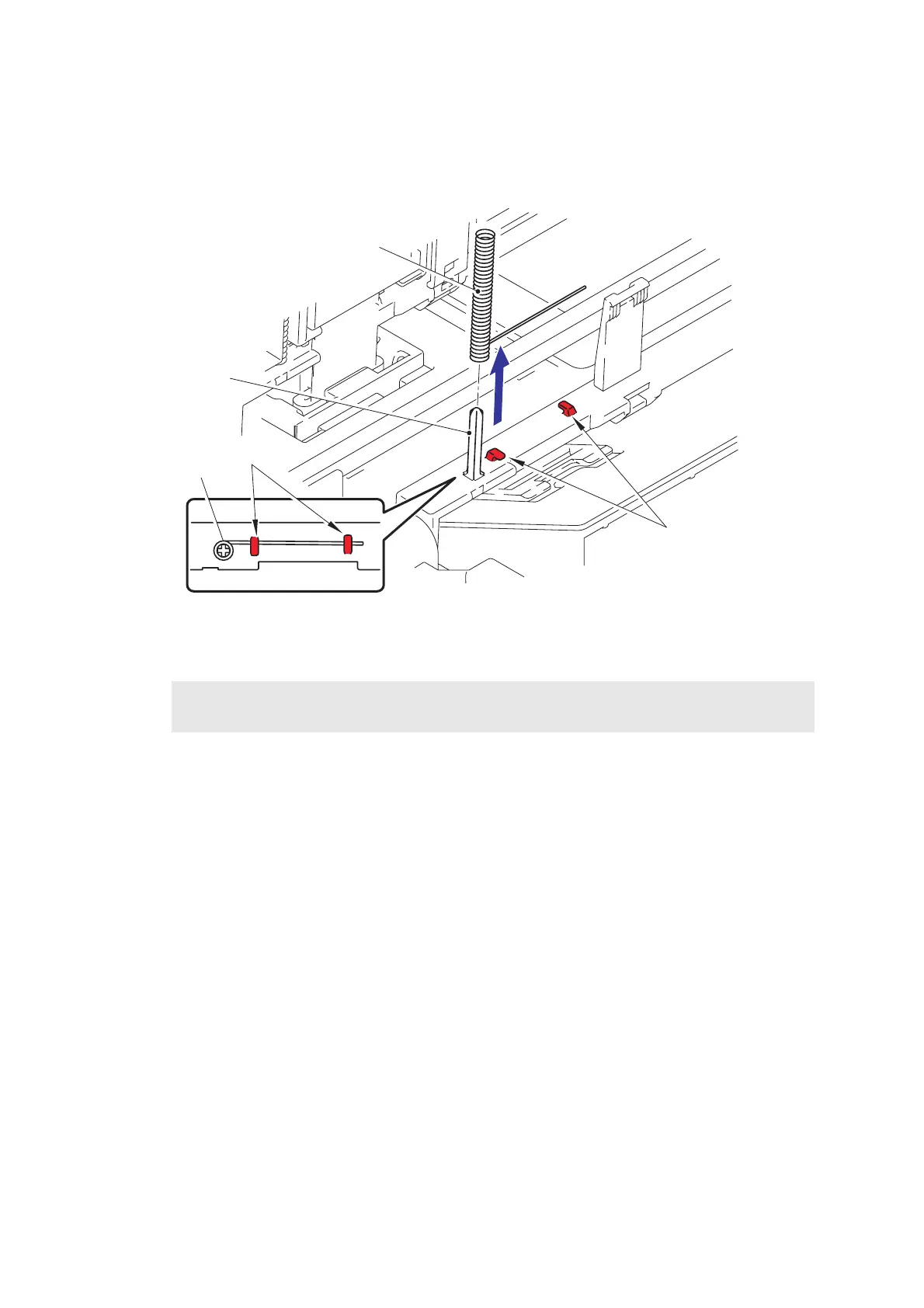

(1) Release the two Hooks to remove the Z spring L from the Boss of the LED holder.
Fig. 3-112
(2) Remove the other Z springs L in the same way.
Note:
When removing the Z spring L, be careful not to damage the Boss of the LED holder.
Hook
Hook
Boss of LED holder
Z spring L
Z spring L
